交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMA1-12038WBHT12EC FAN, 120X120X38MM, 2-BALL BEA |
480 | - |
|
数据表 |
FMA1-12038 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 38.50mm | 49.3dB(A) | 9.50W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP54 - Dust Protected, Water Resistant |
|
DP203A-2123LBL.GNFAN AXIAL 120X38MM 220/240VAC |
152 | - |
|
数据表 |
DP | Bulk | Active | 220 ~ 240VAC | Square - 120mm L x 120mm H | 72.0 CFM (2.02m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 1.2 lbs (550 g) | Tubeaxial | - | 38.00mm | 37.0dB(A) | 10.00W | CE, CUR, TUV, UL | 2150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

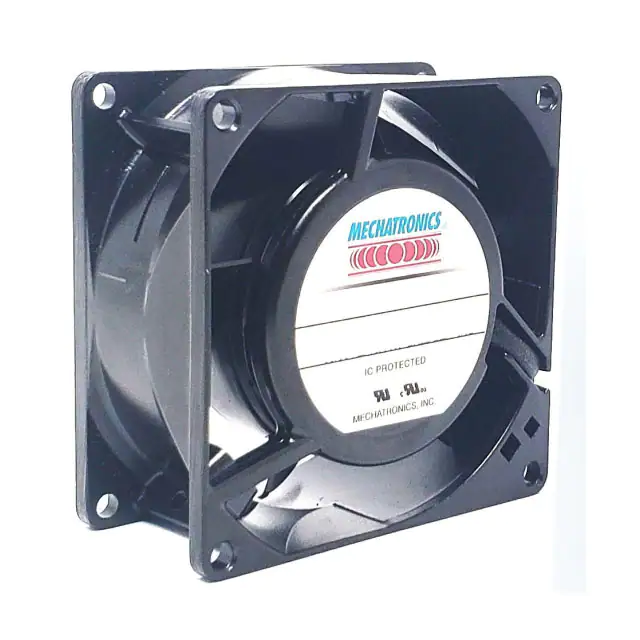

UF80AM12-BWHR-FAC FAN AXIAL 80X80X38MM 130V, HI |
206 | - |
|
数据表 |
UF80AM | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 40.0dB(A) | 11.00W | - | 3250 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Wire Leads | - |
|
19030389AFAN AXIAL 119X39MM 115VAC MX2B4 |
123 | - |
|
数据表 |
Muffin XL AC | Box | Active | 115VAC | Square - 119mm L x 119mm H | 105.0 CFM (2.94m³/min) | 0.223 in H2O (55.5 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 39.00mm | 47.6dB(A) | 15.00W | UL | 3100 RPM | - | 2 Wire Leads | - |
|
FKA1-17251NBHW31FAN AXIAL 172X50.8MM 115VAC WIRE |
108 | - |
|
数据表 |
FKA1-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 189.0 CFM (5.29m³/min) | 0.408 in H2O (101.6 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 50.80mm | 57.7dB(A) | 51.8W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OA172SAPL-11-3TBFAN AXIAL 172X38.5MM 115VAC TERM |
128 | - |
|
数据表 |
OA172SAPL | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 103.0 CFM (2.88m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 38.50mm | 44.0dB | 26.00W | cURus, TUV | 1700 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|

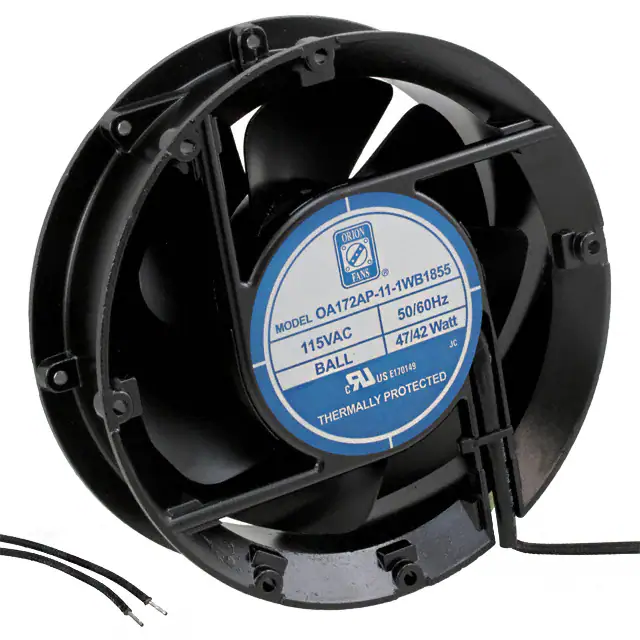

OA172AP-11-1WB1855FAN AXIAL 172X51MM 115VAC WIRE |
197 | - |
|
数据表 |
OA172AP | Box | Active | 115VAC | Round - 172mm Dia | 215.0 CFM (6.02m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 3 lbs (1.4 kg) | Tubeaxial | - | 51.00mm | 59.0dB | 42.00W | cURus | 3200 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
109-154FAN 80X38MM 230VAC |
32 | - |
|
数据表 |
San Ace 80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.177 in H2O (44.1 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.00mm | 39.0dB(A) | 8.00W | CE, CSA, PSE, TUV, UL | 3150 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
APA12-H1S2A.jpg)
|
UF133(91)APA12-H1S2AIMPELLER 133X91MM 115VAC |
35 | - |
|
数据表 |
UF133(91) | Bulk | Active | 115VAC | Round - 133mm Dia | 188.0 CFM (5.26m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 2 lbs (907.2 g) | Motorized Impellers | Thermal Overload Protector (TOP) | 91.50mm | 60.0dB(A) | 41.00W | CE, cUL, TUV, UL | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
3856FAN AXIAL 92X38MM 230VAC WIRE |
28 | - |
|
数据表 |
3000 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 31.8 CFM (0.890m³/min) | - | Ball | 0.926 lb (420.03 g) | Tubeaxial | - | 38.00mm | 26.0dB(A) | 9.00W | CE, CSA, UL, VDE | 1950 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Wire Leads | - |
|
109S485-30FAN 120X25MM 100VAC ALARM |
58 | - |
|
数据表 |
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 81.3 CFM (2.28m³/min) | 0.216 in H2O (53.9 Pa) | Ball | 0.86 lb (390.09 g) | Tubeaxial | Alarm | 25.00mm | 41.0dB(A) | 12.00W | CE, PSE, TUV, UL | 2900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
R2S133-AE17-22MOTORIZED IMPELLER |
0 | - |
|
数据表 |
R2S133 | Bulk | Active | 230VAC | Round - 133.4mm Dia | 188.0 CFM (5.26m³/min) | - | Ball | - | Motorized Impellers | - | 91.00mm | 60.0dB(A) | 45.00W | CSA, UL, VDE | - | 131°F (55°C) | 2 Wire Leads | - |
|
R2E175-AC77-18FAN IMP MTRZD 175X47MM 230VAC |
57 | - |
|
数据表 |
R2E175 | Box | Active | 230VAC | Round - 175mm Dia | 320.0 CFM (8.96m³/min) | - | Ball | 3 lbs (1.4 kg) | Motorized Impellers | - | 47.00mm | 70.0dB(A) | 70.0W | - | - | - | 2 Wire Leads | - |
|

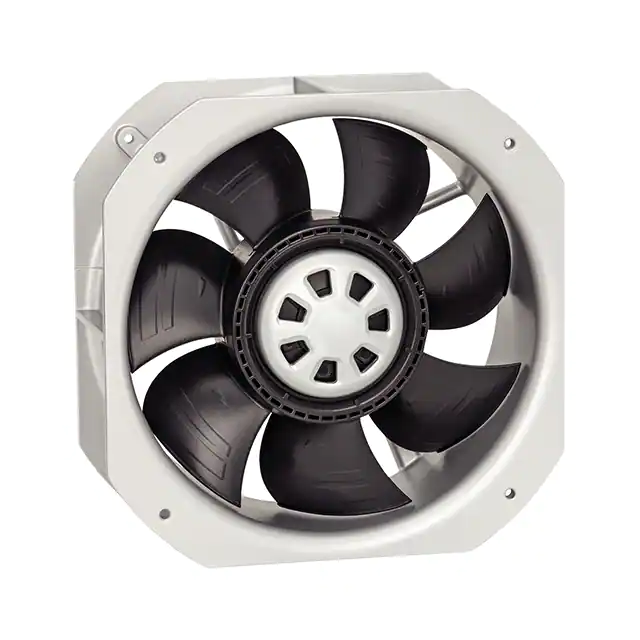

W3G200-HD01-01FAN 200-240VAC 54W 2 SPEED 225MM |
29 | - |
|
数据表 |
W3G200 | Box | Active | 230VAC | Square - 225mm L x 225mm H | - | 0.385 in H2O (96.0 Pa) | Ball | 3.5 lbs (1.6 kg) | Tubeaxial | - | 80.00mm | - | 54.0W | CE, cURus, VDE | 2900 RPM | -13 ~ 140°F (-25 ~ 60°C) | Terminal Block | IP54 - Dust Protected, Water Resistant |
|

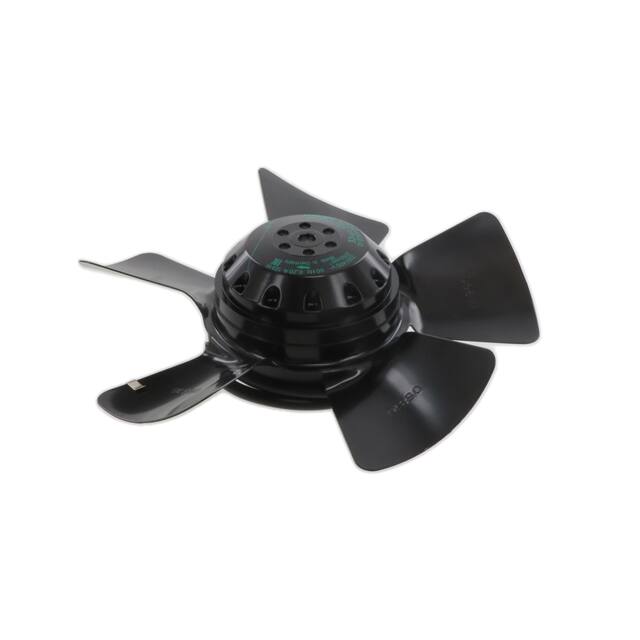

A2D240-AA02-02AC AXIAL FAN |
52 | - |
|
数据表 |
A2D240 | Bulk | Active | 230/400VAC | Round - 240mm Dia | - | - | Ball | - | Tubeaxial, 3 Phase | Dual Voltage | 72.50mm | - | 125W | CE | 2700 RPM | -13 ~ 158°F (-25 ~ 70°C) | 7 Wire Leads with Splice Terminals | IP44 |
|

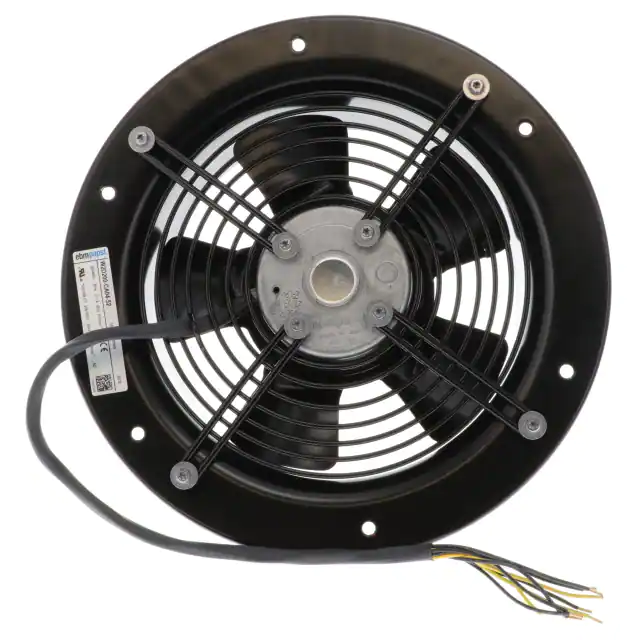

W2D200-CA04-52FAN AXIAL |
0 | - |
|
数据表 |
W2D200 | Bulk | Active | - | - | - | - | Ball | - | Tubeaxial, 3 Phase | - | - | - | - | - | - | - | - | - |
|

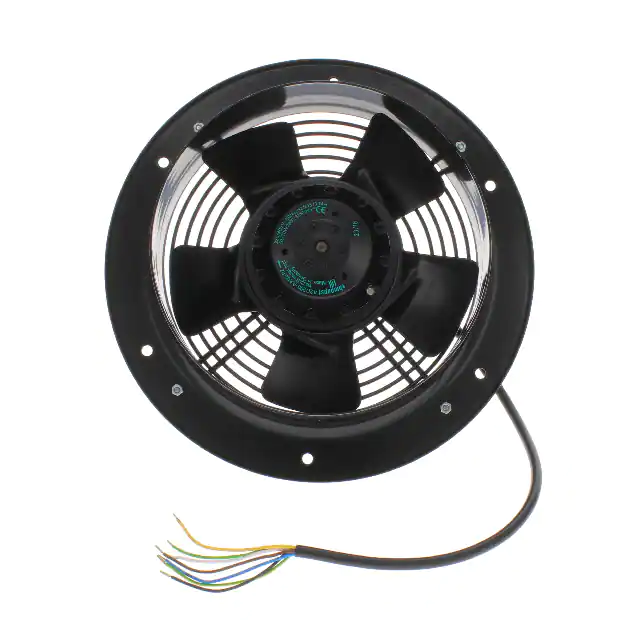

W2D200-CA02-02FAN AXIAL |
54 | - |
|
数据表 |
W2D200 | Bulk | Active | 230/400VAC | Round - 280mm Dia | - | 1.204 in H2O (299.9 Pa) | Ball | - | Tubeaxial, 3 Phase | Dual Voltage | 80.00mm | - | 70.0W | CCC, CE | 3150 RPM | -13 ~ 167°F (-25 ~ 75°C) | 7 Wire Leads with Splice Terminals | IP44 |
|

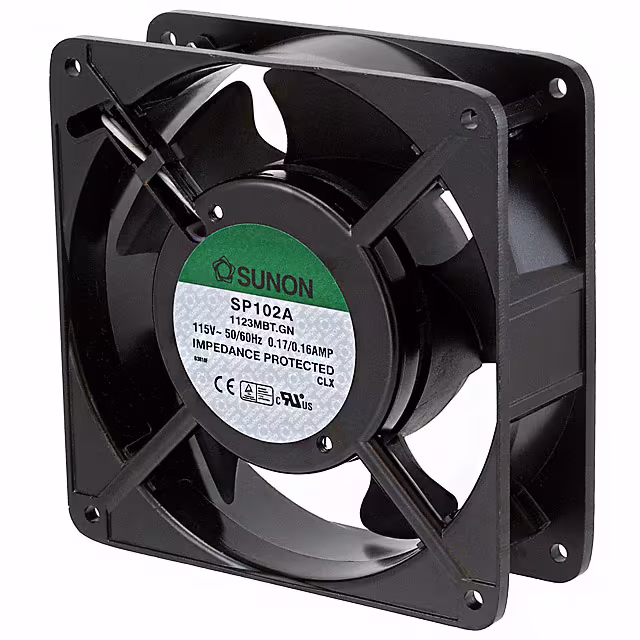

SP102A-1123MBT.GNFAN AXIAL 119X38.5MM 115VAC TERM |
4,863 | - |
|
数据表 |
SP | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 88.0 CFM (2.46m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 1.2 lbs (550 g) | Tubeaxial | - | 38.50mm | 40.0dB(A) | 15.00W | CE, CUR, TUV, UL | 2700 RPM | - | 2 Terminals | - |
|
|
CAF-A238S-224-370AC FAN, 120 X 120 X 38 MM, 220 ~ |
128 | - |
|
数据表 |
CAF-A2S | Box | Active | 220VAC | Square - 119.5mm L x 119.5mm H | 73.3 CFM (2.05m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | - | Tubeaxial | - | 38.50mm | 37.7dB(A) | 9.70W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CAF-A238S-220-300AC FAN, 120 X 120 X 38 MM, 220 ~ |
118 | - |
|
数据表 |
CAF-A2S | Box | Active | 220VAC | Square - 119.5mm L x 119.5mm H | 52.4 CFM (1.47m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | - | Tubeaxial | - | 38.50mm | 29.9dB(A) | 7.10W | CE, cURus, TUV | 1800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
