交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

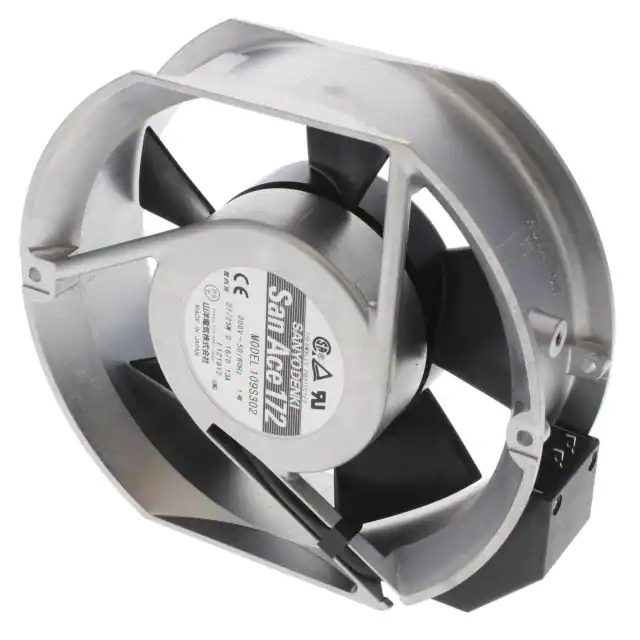

109S302FAN 172X51MM 200VAC SIDE CUT |
46 | - |
|
数据表 |
San Ace 172 | Box | Active | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 56.0dB(A) | 25.00W | CE, CSA, PSE, TUV, UL | 3500 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|

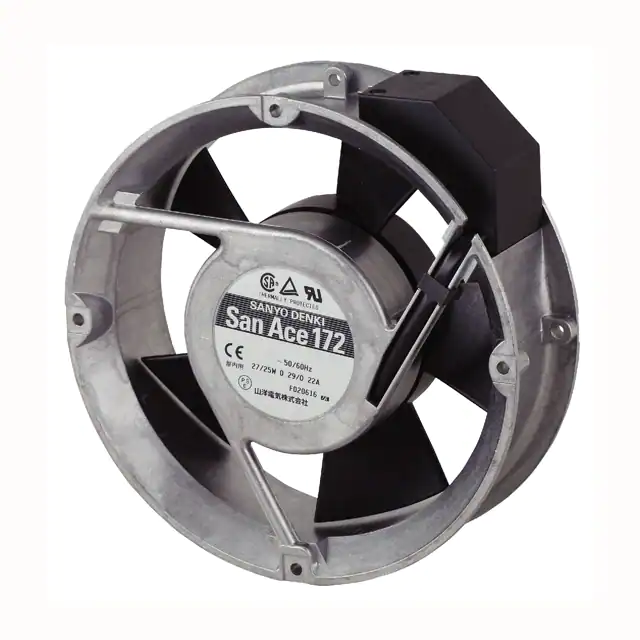

109S301FAN 172X51MM 100VAC SIDE CUT |
28 | - |
|
数据表 |
San Ace 172 | Box | Active | 100VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 56.0dB(A) | 25.00W | CE, CSA, PSE, TUV, UL | 3500 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|

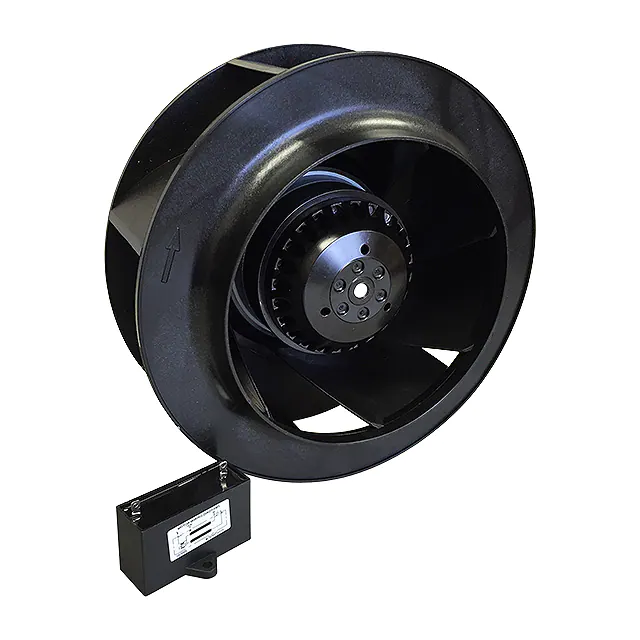

OAB22599-11-1BFAN IMP MTRZD 225X99 115V W/CAP |
882 | - |
|
数据表 |
OAB22599 | Bulk | Active | 115VAC | Round - 225mm Dia | 770.0 CFM (21.56m³/min) | 2.600 in H2O (647.7 Pa) | Ball | 5.1 lbs (2.3 kg) | Motorized Impellers | Permanent Split Capacitor Motor | 99.00mm | 71.0dB | 160W | - | 2950 RPM | -40 ~ 140°F (-40 ~ 60°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
OA205AP-11-1TB1869KAC FAN, IP69K, 205X205X72MM, 115 |
27 | - |
|
数据表 |
OA205AP-IP69K | Box | Active | 115VAC | Square - 205mm L x 205mm H | 590.0 CFM (16.52m³/min) | 0.860 in H2O (214.2 Pa) | Ball | 5.2 lbs (2.4 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 72.00mm | 67.0dB | 80.0W | CE, cURus, TUV, UR | 3000 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof |
|
109S303FAN 172X51MM 230VAC SIDE CUT |
98 | - |
|
数据表 |
San Ace 172 | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 56.0dB(A) | 25.00W | CE, CSA, PSE, TUV, UL | 3500 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|

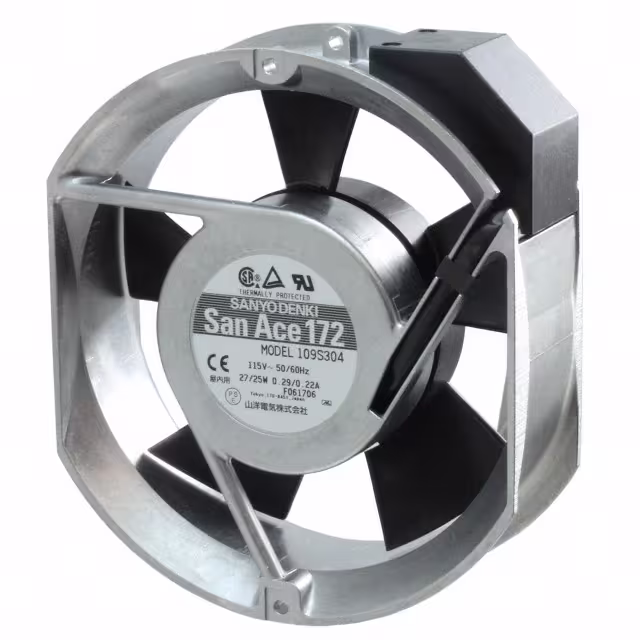

109S304FAN 172X51MM 115VAC SIDE CUT |
97 | - |
|
数据表 |
San Ace 172 | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 56.0dB(A) | 25.00W | CE, CSA, PSE, TUV, UL | 3500 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|

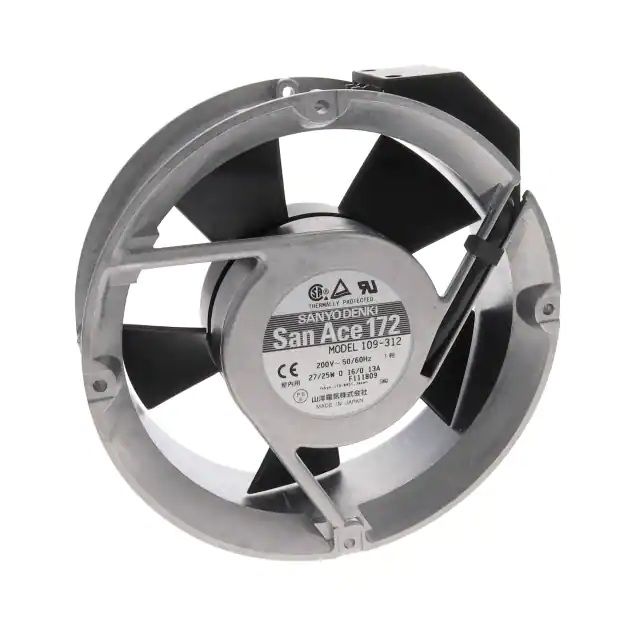

109-312FAN 172X51MM 200VAC RND |
90 | - |
|
数据表 |
San Ace 172 | Box | Active | 200VAC | Round - 172mm Dia | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 51.0dB(A) | 25.00W | CE, CSA, PSE, TUV, UL | 3500 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
W1G230-EB89-01FAN AXIAL |
26 | - |
|
数据表 |
W1G230 | Bulk | Active | 230VAC | Round - 280mm Dia | - | 0.145 in H2O (36.1 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 78.50mm | - | 26.00W | CE, CSA, EAC, UL, VDE | 1000 RPM | -22 ~ 122°F (-30 ~ 50°C) | 3 Wire Leads with Splice Terminals | IP55 - Dust Protected, Water Resistant |
|

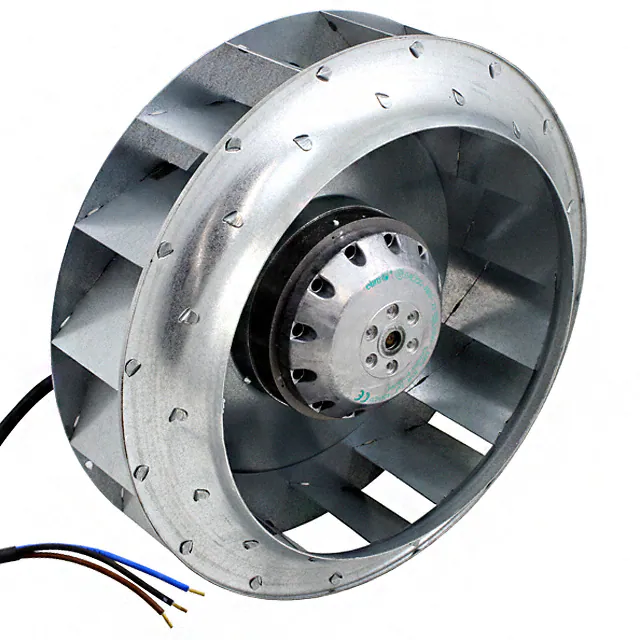

R4E250-AB01-25FAN IMP MTRZD 250X99MM 230VAC |
34 | - |
|
数据表 |
R4E250 | Box | Active | 230VAC | Round - 250mm Dia | 560.0 CFM (15.68m³/min) | - | Ball | 5 lbs (2.3 kg) | Motorized Impellers | - | 99.00mm | 60.0dB(A) | 85.0W | - | - | - | 2 Wire Leads | IP44 |
|
R2E225-AT51-05MOTORIZED IMPELLER |
13 | - |
|
数据表 |
R2E225 | Bulk | Active | 230VAC | Round - 225mm Dia | - | - | Ball | - | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | - | 145W | CCC, CE, EAC | 2950 RPM | -13 ~ 131°F (-25 ~ 55°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
W3G200-HD23-10FAN AXIAL 115V 225X80MM 623CF |
33 | - |
|
数据表 |
Green Tech W3G200 | Bulk | Active | 115VAC | Square - 225mm L x 225mm H | 623.0 CFM (17.44m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 3.7 lbs (1.7 kg) | Tubeaxial | Electronic Commutation (EC) | 80.00mm | - | 65.0W | CE, cURus, VDE | 2900 RPM | -13 ~ 140°F (-25 ~ 60°C) | Terminal Block | IP54 - Dust Protected, Water Resistant |
|
D2E133-AM47-23FAN BLWR CENT 172X254MM 230VAC |
147 | - |
|
数据表 |
D2E133 | Box | Active | 230VAC | Rectangular/Rounded - 171.5mm L x 198mm H | 353.0 CFM (9.88m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 7.8 lbs (3.5 kg) | Blower, Centrifugal | Capacitor | 254.0mm | 55.0dB(A) | 200W | CCC, CE, GOST | 1800 RPM | -40 ~ 176°F (-40 ~ 80°C) | 4 Wire Leads | IP44 |
|
R3G190-RD47-04190 MM EC CENTRIFUGAL FAN |
75 | - |
|
数据表 |
Green Tech RadiCal® R3G190RD | Bulk | Active | 115VAC | Round - 190mm Dia | 553.3 CFM (15.49m³/min) | - | Ball | 3 lbs (1.4 kg) | Motorized Impellers | Electronic Commutation (EC) | 90.70mm | 72.0dB(A) | 170W | UL | 4180 RPM | -13 ~ 122°F (-25 ~ 50°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
D2E133-DM47-A3BLOWER |
6 | - |
|
数据表 |
D2E133 | Bulk | Active | 230VAC | Rectangular/Rounded - 203mm L x 213mm H | - | 0.401 in H2O (100.0 Pa) | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | 232.0mm | - | 195W | - | 1550 RPM | -13 ~ 86°F (-25 ~ 30°C) | 4 Wire Leads | IP44 |
|
W3G250-HK35-11FAN AXIAL 115V 280X80MM 1120CFM |
78 | - |
|
数据表 |
W3G250 | Bulk | Active | 115VAC | Square - 280mm L x 280mm H | 1120.0 CFM (31.36m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 7.6 lbs (3.4 kg) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 80.00mm | - | 125W | UL | 2700 RPM | -13 ~ 140°F (-25 ~ 60°C) | Terminal Block | IP54 - Dust Protected, Water Resistant |
|
EE1G-115-180-04BLOWER |
26 | - |
|
数据表 |
EE1G180 | Bulk | Active | 115VAC | Rectangular/Rounded - 260mm L x 302mm H | 450.0 CFM (12.60m³/min) | - | Ball | - | Blower, Centrifugal | Capacitor | 170.0mm | 64.0dB(A) | 180W | - | - | 122°F (50°C) | 3 Wire Leads | - |
|
G2E180-EH03-01FAN AC CENTRIFUGAL 230VAC |
43 | - |
|
数据表 |
G2E180 | Bulk | Active | 230VAC | Rectangular/Rounded - 260.9mm L x 282mm H | - | 1.000 in H2O (249.1 Pa) | Ball | 12 lbs (5.4 kg) | Blower | Capacitor, Thermal Overload Protection (TOP) | 125.0mm | - | 415W | CCC, CE, EAC | 2150 RPM | -13 ~ 86°F (-25 ~ 30°C) | 4 Wire Leads | IP44 |
|
FAA1-09225NBHT31FAN AXIAL 92X25MM 115VAC TERM |
115 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 34.0 CFM (0.952m³/min) | 0.116 in H2O (28.9 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 30.1dB(A) | 5.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-08025QBHW31FAN AXIAL 80X25MM 230VAC WIRE |
163 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 27.8dB(A) | 10.00W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

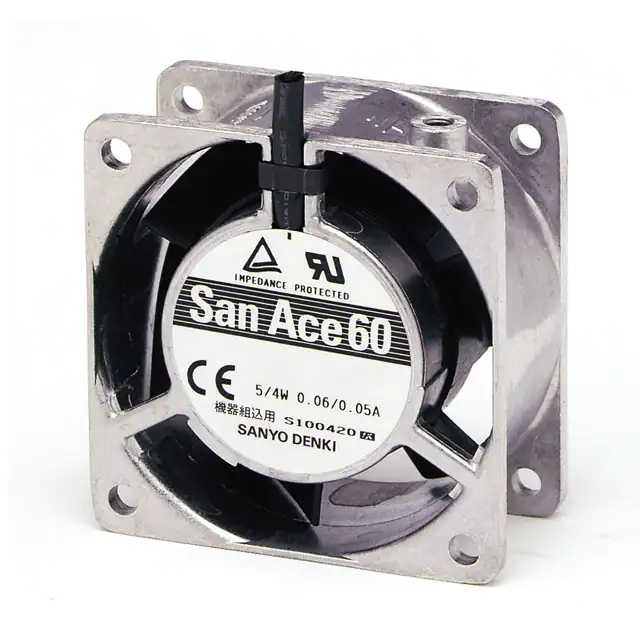

109-180FAN 60X28MM 100VAC |
174 | - |
|
数据表 |
San Ace 60 | Box | Active | 100VAC | Square - 60mm L x 60mm H | 11.7 CFM (0.328m³/min) | 0.075 in H2O (18.6 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | - | 28.00mm | 26.0dB(A) | 4.00W | CE, TUV, UL | 2700 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
