交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA125AP-11-3TBFAN AXIAL 119.5X26.2MM 115VAC |
210 | - |
|
数据表 |
OA125 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 53.0 CFM (1.48m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.73 lb (331.12 g) | Tubeaxial | - | 25.00mm | 33.0dB | 14.00W | cURus, TUV | 2000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|
OA109AP-11-2WBFAN AXIAL 120X38MM 115VAC WIRE |
140 | - |
|
数据表 |
OA109 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 71.0 CFM (1.99m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 35.0dB | 11.00W | CE, cURus, TUV, UR | 2300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
OA825AP-22-1WBFAN AXIAL 80X27MM 230VAC WIRE |
105 | - |
|
数据表 |
OA825 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 25.0 CFM (0.700m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.573 lb (259.91 g) | Tubeaxial | - | 27.00mm | 25.0dB | 9.00W | cURus, TUV | 3000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
SF11592A-1092HBL.GN.I55FAN AXIAL 91.5X25.5MM 115VAC |
175 | - |
|
数据表 |
SF | Bulk | Active | 115VAC | Square - 91.5mm L x 91.5mm H | 37.0 CFM (1.04m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.617 lb (280.00 g) | Tubeaxial | - | 25.50mm | 40.0dB(A) | 12.00W | CE, cUL, TUV, UL | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
OA938AP-11/22-1WBFAN AXIAL 92X38.5MM 115/230VAC |
138 | - |
|
数据表 |
OA938 | Box | Active | 115/230VAC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Dual Voltage | 38.50mm | 32.0dB | 9.00W | cURus, TUV | 3100 RPM | -4 ~ 176°F (-20 ~ 80°C) | 4 Wire Leads | - |
|
UF92AM12-BWHR-FFAN AXIAL 92X38MM 115V HIGH TEMP |
135 | - |
|
数据表 |
UF92AM | Bulk | Active | 115VAC | Square - 92.5mm L x 92.5mm H | 51.0 CFM (1.43m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.948 lb (430.01 g) | Tubeaxial | - | 38.00mm | 42.0dB(A) | 11.00W | CE, cUL, TUV, UL | 3200 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Wire Leads | - |
|
SP103AT-1122LBT.GNFAN AXIAL 119X25.5MM 115VAC TERM |
991 | - |
|
数据表 |
SP | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 54.0 CFM (1.51m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 25.50mm | 40.0dB(A) | 11.50W | CE, CUR, TUV, UL | 1900 RPM | - | 2 Terminals | - |
|
109S094FAN 92X25MM 230VAC |
169 | - |
|
数据表 |
San Ace 92 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 25.00mm | 38.0dB(A) | 9.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
OA109AP-11-1WB03FAN AC, 110V BALL W/THERMAL CT |
129 | - |
|
数据表 |
OA109 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 104.0 CFM (2.91m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Temperature Sensor | 38.50mm | 42.0dB(A) | 15.00W | CE, cURus, TUV, UR | 3000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
UF12A23-BTHNRFAN AXIAL 120X38MM 230VAC IP55 |
331 | - |
|
数据表 |
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 15.00W | CE, cUL, TUV, UL | 3100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
OA80AP-22-1WB1855FAN AXIAL 80X38MM 230VAC WIRE |
178 | - |
|
数据表 |
OA80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.95 lb (430.91 g) | Tubeaxial | - | 38.00mm | 35.0dB | 13.00W | cURus, TUV | 3200 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
109S054FAN 80X25MM 230VAC |
234 | - |
|
数据表 |
San Ace 80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 26.9 CFM (0.753m³/min) | 0.154 in H2O (38.4 Pa) | Ball | 0.595 lb (269.89 g) | Tubeaxial | - | 25.00mm | 33.0dB(A) | 7.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
FDA2-17251NBKT3FFAN AXIAL 172X51MM 115VAC TERM |
184 | - |
|
数据表 |
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 275.0 CFM (7.70m³/min) | 0.768 in H2O (191.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 51.00mm | 60.0dB(A) | 27.00W | CE, cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
109S025ULFAN 120X38MM 230VAC |
119 | - |
|
数据表 |
San Ace 120 | Box | Active | 230VAC | Square - 119mm L x 119mm H | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 43.0dB(A) | 12.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
9AD1201H121FAN 120X38MM 90/264VAC RBLS |
449 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 38.00mm | 42.0dB(A) | 4.40W | CE, CSA, PSE, TUV, UL | 3250 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
|
4840NFAN AXIAL 119X38MM 115VAC TERM |
31 | - |
|
数据表 |
4000N | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 50.0 CFM (1.40m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 26.0dB(A) | 10.00W | CE, CSA, UL, VDE | 1650 RPM | 14 ~ 167°F (-10 ~ 75°C) | 2 Terminals | - |
|

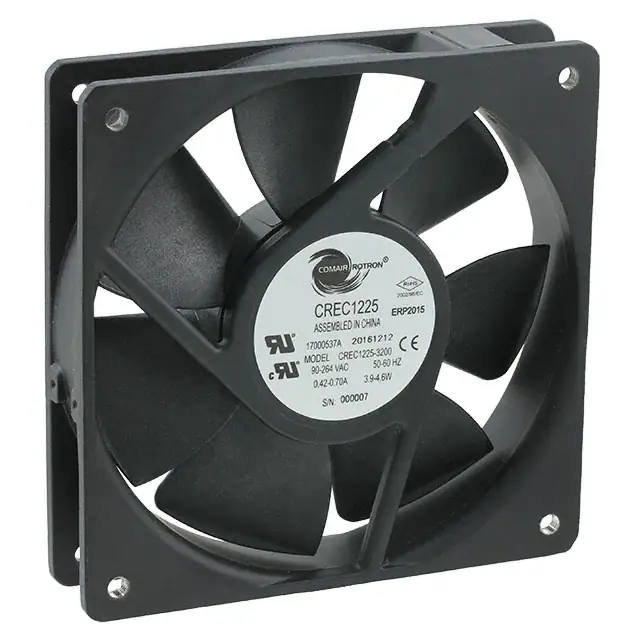

17000537AFAN AXIAL 120X25MM CR1225EC-3200 |
72 | - |
|
数据表 |
- | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 92.0 CFM (2.58m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.498 lb (225.89 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 25.00mm | 47.0dB(A) | 5.50W | CE, cUL, UL | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
55416.25170FAN BLOWER CF 180X108MM 115VAC |
224 | - |
|
数据表 |
QLN65 | Bulk | Active | 115VAC | Rectangular - 266mm L x 90mm H (65mm Dia) | 114.0 CFM (3.19m³/min) | 0.373 in H2O (93.0 Pa) | Sleeve | 2.7 lbs (1.2 kg) | Blower, Cross Flow | - | 108.0mm | - | 49.00W | - | 1700 RPM | 32 ~ 140°F (0 ~ 60°C) | Terminal Block | - |
|

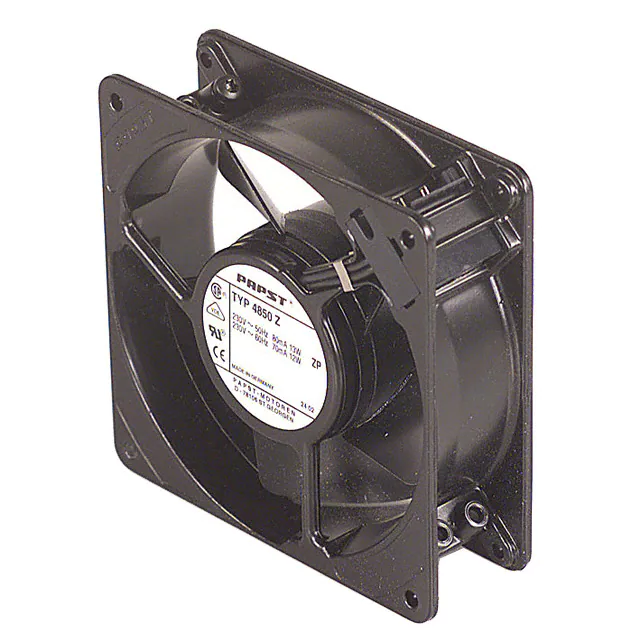

4850ZFAN AXIAL 119X38MM 230VAC TERM |
51 | - |
|
数据表 |
4000Z | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 58.8 CFM (1.64m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 26.0dB(A) | 13.00W | CE, CSA, UL, VDE | 1700 RPM | 14 ~ 149°F (-10 ~ 65°C) | 2 Terminals | - |
|
OA172AP-11-1TB1855FAN AXIAL 172X51MM 115VAC TERM |
87 | - |
|
数据表 |
OA172AP | Box | Active | 115VAC | Round - 172mm Dia | 215.0 CFM (6.02m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 3 lbs (1.4 kg) | Tubeaxial | - | 51.00mm | 59.0dB | 42.00W | cURus | 3200 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
