交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109S093FAN 92X25MM 115VAC |
67 | - |
|
数据表 |
San Ace 92 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 25.00mm | 38.0dB(A) | 7.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
OA172AP-22-2TBFAN AXIAL 172X51MM 230VAC TERM |
91 | - |
|
数据表 |
OA172AP | Box | Active | 230VAC | Round - 172mm Dia | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | - | 51.00mm | 42.0dB | 20.00W | cURus, TUV | 2400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
OA172AP-22-1WBFAN AXIAL 172X51MM 230VAC WIRE |
53 | - |
|
数据表 |
OA172AP | Box | Active | 230VAC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | - | 51.00mm | 52.0dB | 35.00W | cURus, TUV | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
OA172SAN-22-1TBFAN AXIAL 172X50.8MM 230VAC TERM |
49 | - |
|
数据表 |
OA172SAN | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 52.0dB | 35.00W | cURus | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
UF12AM23-BTHR-B1FAN AXIAL 120X38MM 230VAC TACH |
30 | - |
|
数据表 |
UF12AM | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 103.0 CFM (2.88m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 13.00W | CE, cUL, TUV, UL | 3100 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Terminals and 3 Wire Leads | - |
|
UF15KM23-BTHR-FFAN 172X150X55MM 230V HIGH TEMP |
77 | - |
|
数据表 |
UF15KM | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 2.4 lbs (1.1 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | 53.0dB(A) | 42.00W | CE, cUL, TUV, UL | 3250 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Terminals | - |
|
3556FAN AXIAL 92X38MM 230VAC WIRE |
34 | - |
|
数据表 |
3000 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 39.4 CFM (1.10m³/min) | - | Ball | 0.926 lb (420.03 g) | Tubeaxial | - | 38.00mm | 33.0dB(A) | 9.00W | CE, CSA, UL, VDE | 2400 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Wire Leads | - |
|

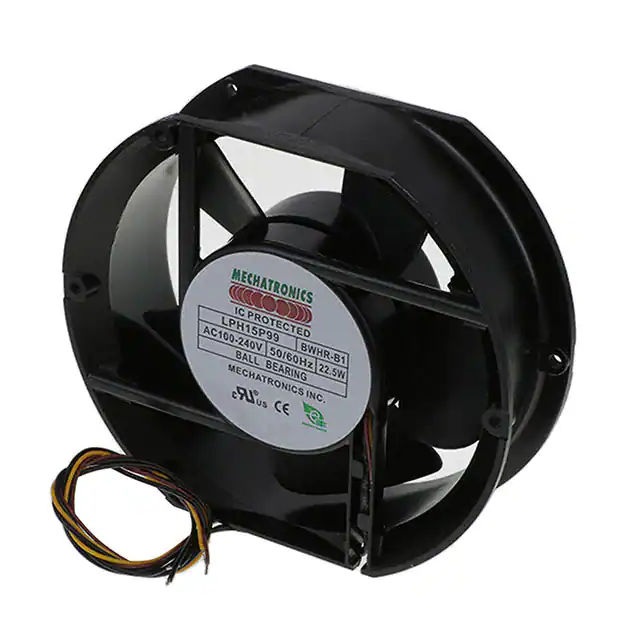

LPH15P99-BWHR-B1EC FAN AXIAL 172 X 150 X 51MM W/ |
92 | - |
|
数据表 |
LPH15P99 | Bulk | Active | 100 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 228.0 CFM (6.38m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach) | 51.50mm | 55.0dB(A) | 22.50W | - | 3200 RPM | - | 3 Wire Leads | - |
B.jpg)
|
OA172EC-UR-1TBEC FAN 172X152X51.6MM 90-265VAC |
54 | - |
|
数据表 |
OA172EC | Box | Active | 110/220VAC | Rectangular/Rounded - 172mm L x 152mm H | 220.0 CFM (6.16m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 1.5 lbs (680.4 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 51.60mm | 55.0dB | 12.50W | CE, cURus, TUV, UR | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
109S074ULFAN 120X38MM 115VAC |
126 | - |
|
数据表 |
San Ace 120 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 102.5 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 16.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
OA109AP-11-1TBSFFAN AXIAL 120X38MM 115VAC TERM |
64 | - |
|
数据表 |
OA109 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Salt Fog Rated | 38.50mm | 46.0dB | 12.00W | cURus | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
19028331AFAN AXIAL 80X38MM 220VAC SU3B1 |
149 | - |
|
数据表 |
Sprite AC | Box | Active | 220VAC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.551 lb (249.93 g) | Tubeaxial | - | 38.00mm | 32.0dB(A) | 12.00W | CE, cUL, UL | 2800 RPM | -40 ~ 176°F (-40 ~ 80°C) | 2 Wire Leads | IP44 |
B.jpg)
|
OA109EC-UR-1TBFAN EC 120X38MM 90-265VAC |
27 | - |
|
数据表 |
OA109EC | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.64 lb (290.3 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 38.00mm | 43.0dB | 4.90W, 5.20W | CE, cURus, UR | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
|
CF4113LBL-000U-AEDFAN AXIAL 120X38MM 100/240VAC |
105 | - |
|
数据表 |
CF | Bulk | Active | 100/240VAC | Square - 120mm L x 120mm H | 64.3 CFM (1.80m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.699 lb (317.06 g) | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 38.00mm | 31.4dB(A) | 1.80W | ATEX, CE, CUR, TUV, UL | 2000 RPM | -13 ~ 158°F (-25 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

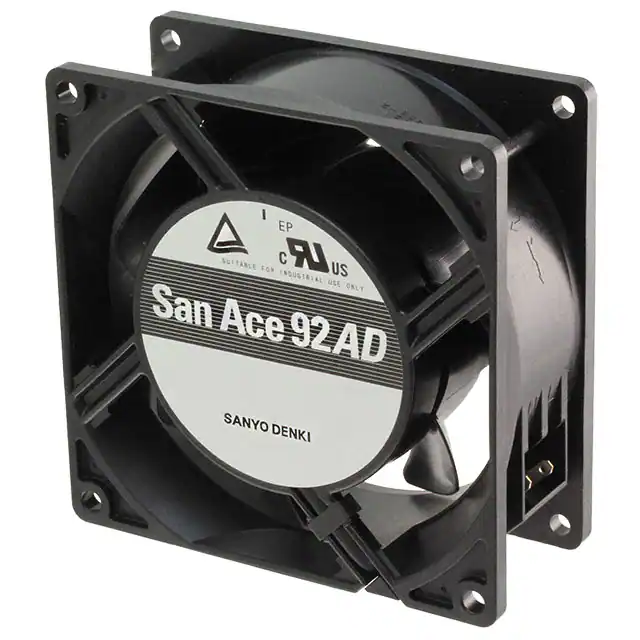

9AD0901H12FAN 92X38MM 90/264VAC |
44 | - |
|
数据表 |
San Ace 92AD | Box | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.7 Pa) | Ball | 0.551 lb (249.93 g) | Tubeaxial | - | 38.00mm | 40.0dB(A) | 4.50W | CE, CSA, PSE, TUV, UL | 3850 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
|
UF15KC12-BTHNRFAN AXIAL 172X150X55MM 115VA IP5 |
101 | - |
|
数据表 |
UF15KC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.00mm | 60.0dB(A) | 38.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 3 Terminals | IP55 - Dust Protected, Water Resistant |
|
UF15KC23-BWHNRFAN AXIAL 172X55MM 230VAC WIRE |
62 | - |
|
数据表 |
UF15KC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.00mm | 60.0dB(A) | 38.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
OA172SAP111TBXFFAN AC OA172SAP111TBXC W/F CLA |
27 | - |
|
数据表 |
OA172SA | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | - | 51.00mm | 52.1dB(A) | 35.00W | CE, cURus, TUV, UR | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
109-044ULFAN 80X42MM 230VAC |
50 | - |
|
数据表 |
San Ace 80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 35.3 CFM (0.988m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | - | 42.00mm | 44.0dB(A) | 9.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|

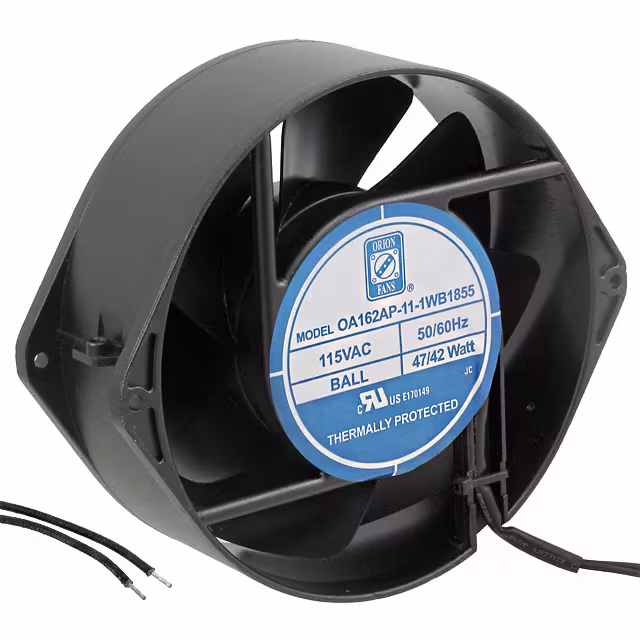

OA162AP-11-1WB1855FAN AXIAL 172X55MM 115VAC WIRE |
49 | - |
|
数据表 |
OA162 | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 210.0 CFM (5.88m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | 54.0dB | 42.00W | cURus | 3200 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
