交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF15KM12-BTHR-FFAN 172X150X55MM 115V HIGH TEMP |
55 | - |
|
数据表 |
UF15KM | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 2.4 lbs (1.1 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | 53.0dB(A) | 42.00W | CE, cUL, TUV, UL | 3250 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Terminals | - |
|
OA172SAPL-22-1TBIP55FAN AXIAL 172X38MM 230VAC TERM |
40 | - |
|
数据表 |
OA172SAPL | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 228.0 CFM (6.38m³/min) | 0.870 in H2O (216.7 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 38.50mm | 58.0dB | 28.00W | cURus, TUV | 3400 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
109S075ULFAN 120X38MM 100VAC |
37 | - |
|
数据表 |
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 102.5 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 16.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|

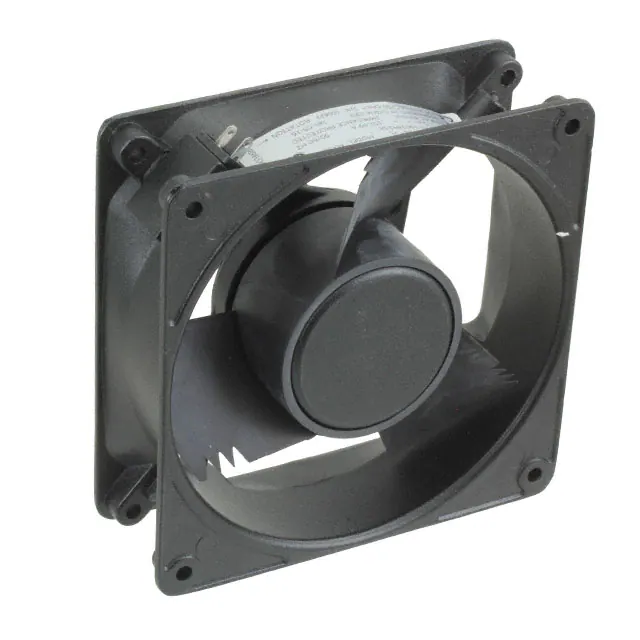

19028423AFAN AXIAL 119X39MM 230VAC MX3B3 |
64 | - |
|
数据表 |
Muffin XL AC | Box | Active | 230VAC | Square - 119mm L x 119mm H | 105.0 CFM (2.94m³/min) | 0.223 in H2O (55.5 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 39.00mm | 47.6dB(A) | 16.00W | CE, cUL, UL | 3100 RPM | - | 2 Terminals | - |
|
8556VFAN AXIAL 80X38MM 230VAC TERM |
33 | - |
|
数据表 |
8000V | Box | Active | 230VAC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | - | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 35.0dB(A) | 11.00W | CSA, UL, VDE | - | - | 2 Terminals | - |
|
A1175-HBL.TC.GNFAN AXIAL 171X51MM 115VAC WIRE |
219 | - |
|
数据表 |
A | Bulk | Active | 115VAC | Rectangular/Rounded - 171.5mm L x 151mm H | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 58.0dB(A) | 27.00W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Wire Leads | - |
|

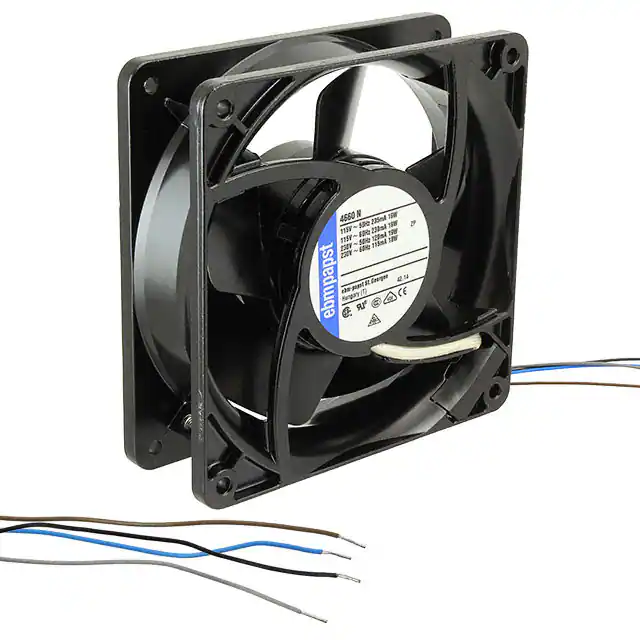

4660NAC TUBEAXIAL FAN |
29 | - |
|
数据表 |
- | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | 0.363 in H2O (90.5 Pa) | Sleeve | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 48.0dB(A) | 18.00W | CCC, CE, CSA, UL, VDE | 2950 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
OA162-5E-230WBFAN AXIAL 172X55MM 230VAC WIRE |
186 | - |
|
数据表 |
OA162 | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 2.4 lbs (1.1 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | 53.0dB | 42.00W | CE, cURus, TUV, UR | 3250 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
|
OA162-5E-115WBFAN AXIAL 172X55MM 115VAC WIRE |
58 | - |
|
数据表 |
OA162 | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 2.4 lbs (1.1 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | 53.0dB | 42.00W | CE, cURus, TUV, UR | 3250 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
AFL22AUHW-P1222X222X78MM 115 / 230V AC FAN W |
95 | - |
|
数据表 |
AFL, EST | Box | Active | 115/230VAC | Round - 222mm Dia | 323.9 CFM (9.07m³/min) | 0.630 in H2O (156.9 Pa) | Ball | - | Tubeaxial | Dual Speed, Dual Voltage, Electronic Commutation (EC), Locked Rotor Protection, Thermal Overload Protector (TOP) | 85.70mm | 57.0dB(A) | 8.00W, 17.00W | cURus | 1800/2500 RPM | -40 ~ 131°F (-40 ~ 55°C) | 3 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
3606FAN AXIAL 92X38MM 115VAC WIRE |
427 | - |
|
数据表 |
3000 | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 52.4 CFM (1.47m³/min) | - | Ball | 0.926 lb (420.03 g) | Tubeaxial | - | 38.00mm | 42.0dB(A) | 11.00W | CE, CSA, UL, VDE | 3200 RPM | -40 ~ 167°F (-40 ~ 75°C) | 2 Wire Leads | - |
|
|
3656FAN AXIAL 92X38MM 230VAC WIRE |
169 | - |
|
数据表 |
3000 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 44.1 CFM (1.23m³/min) | - | Ball | 0.926 lb (420.03 g) | Tubeaxial | - | 38.00mm | 37.0dB(A) | 12.00W | CE, CSA, UL, VDE | 2700 RPM | -40 ~ 167°F (-40 ~ 75°C) | 2 Wire Leads | - |
|
OA109EC-UR-1TBIP68AFAN 120X38MM 90-265VAC IP68 ATEX |
77 | - |
|
数据表 |
OA109EC | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.64 lb (290.3 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 38.00mm | 43.0dB | 4.90W, 5.20W | ATEX, CE, cURus, UR | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
8550VWAC TUBEAXIAL FAN |
75 | - |
|
数据表 |
8000V | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 35.9 CFM (1.01m³/min) | - | Sleeve | 0.106 lb (48.08 g) | Tubeaxial | - | 38.00mm | 34.0dB(A) | 11.00W | CSA, UL, VDE | 3200 RPM | 14 ~ 167°F (-10 ~ 75°C) | 2 Wire Leads | IP20 |
|
|
9AD1201H1HFAN 120X38MM 90/264VAC LSS |
47 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.639 lb (289.85 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 42.0dB(A) | 4.40W | CE, CSA, PSE, TUV, UL | 3250 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Position Rectangular Connector | - |
|

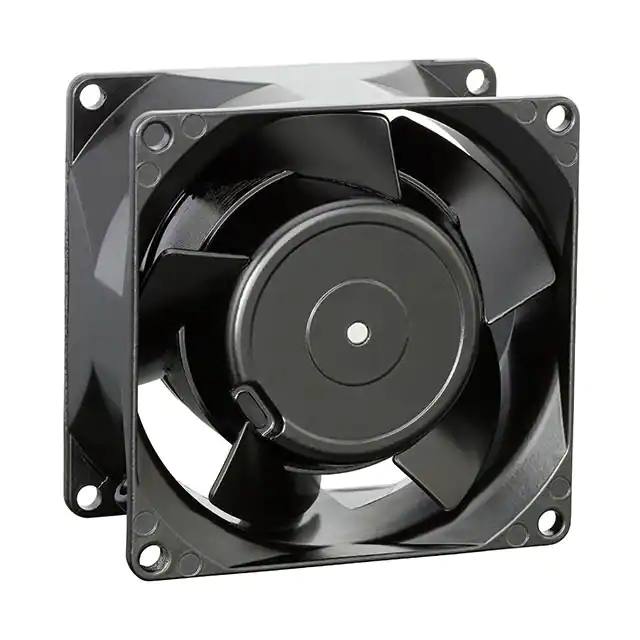

8556NFAN AXIAL 80X38MM 230VAC WIRE |
39 | - |
|
数据表 |
8000N | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 29.4 CFM (0.823m³/min) | - | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 31.0dB(A) | 12.00W | CE, CSA, UL, VDE | 2800 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Wire Leads | - |
|
8526VWR-686FAN AXIAL 80X38MM |
41 | - |
|
数据表 |
8526 | Bulk | Active | 24VAC | Square - 80mm L x 80mm H | 27.7 CFM (0.776m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 31.0dB(A) | 12.00W | - | 2800 RPM | -4 ~ 194°F (-20 ~ 90°C) | 2 Wire Leads | IP20 |
|
8500VWFAN AXIAL 80X38MM 115VAC WIRE |
393 | - |
|
数据表 |
8000V | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | - | Sintec | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 34.0dB(A) | 11.00W | CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
|
OA109EC-UR-1WBIP68AFAN 120X38MM 90-265VAC IP68 ATEX |
935 | - |
|
数据表 |
OA109EC | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.64 lb (290.3 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 38.00mm | 43.0dB | 4.90W, 5.20W | ATEX, CE, cURus, UR | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
15038PB-A1L-EP-S0FAN 150MM X 172MM X 38MM 115VAC |
128 | - |
|
数据表 |
15038PB | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 56.0dB | 32.00W | - | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
