交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4656EA-004AC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OA172LFGH111TFAN AXIAL 207X112.3MM 115VAC |
0 | - |
|
数据表 |
OA172LFGH | Box | Active | 115VAC | Square - 207mm L x 207mm H | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Capacitor, Kit | 112.3mm | 52.0dB | 35.00W | cURus, TUV | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals or 2 Wire Leads | - |
|
|
OA172LFGH221TFAN AXIAL 207X112.3MM 230VAC |
0 | - |
|
数据表 |
OA172LFGH | Box | Active | 230VAC | Square - 207mm L x 207mm H | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Capacitor, Kit | 112.3mm | 52.0dB | 35.00W | cURus, TUV | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals or 2 Wire Leads | - |
|

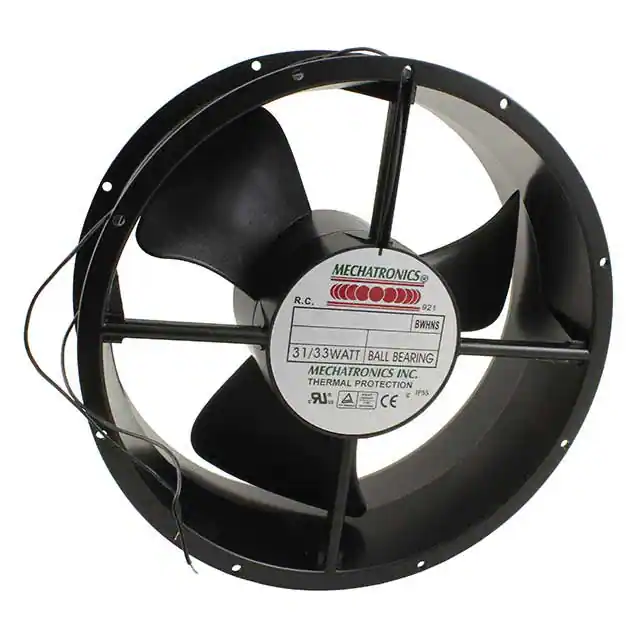

UF25GC23-BWHRFAN AXIAL 254X89MM 230VAC IP55 |
0 | - |
|
数据表 |
UF25GC | Bulk | Active | 230VAC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 4.1 lbs (1.9 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 89.00mm | 55.0dB(A) | 33.00W | CE, cUL, TUV, UL | 1650 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
|
11938TB-B0N-LA-00FAN 119MM X 38MM 200VAC WIRE |
0 | - |
|
数据表 |
11938TB | Bulk | Active | 200VAC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 50.0dB | 17.00W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
5915PC-23T-B30-SM0FAN AXIAL 172X38MM 230VAC TERM |
0 | - |
|
数据表 |
PC | Box | Obsolete | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 187.1 CFM (5.24m³/min) | 0.655 in H2O (163.2 Pa) | Ball | 2.1 lbs (952.5 g) | Tubeaxial | - | 38.00mm | 53.0dB | 40.00W | CE, CSA, UL, VDE | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | IP54 - Dust Protected, Water Resistant |
|
|
R87F-A4A83LFAN AXIAL 80X25MM 200VAC WIRE |
0 | - |
|
数据表 |
R87F | Bulk | Active | 200VAC | Square - 80mm L x 80mm H | 17.9 CFM (0.501m³/min) | 0.078 in H2O (19.5 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 28.0dB | 5.00W | CSA, UL | 1900 RPM | -22 ~ 158°F (-30 ~ 70°C) | 2 Wire Leads | - |
|
|
AC8300HRACMAXX TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
APA12-H1S2A.jpg)
|
UF133(91)APA23-H1S2AFAN IMP MTRZD 193X91.5MM 230VAC |
0 | - |
|
数据表 |
UF133(91) | Bulk | Active | 230VAC | Round - 133mm Dia | 188.0 CFM (5.26m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 2 lbs (907.2 g) | Motorized Impellers | Thermal Overload Protector (TOP) | 91.50mm | 60.0dB(A) | 39.00W | CE, cUL, TUV, UL | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
55442.40491FAN BLOWER CF 180X79MM 115VAC |
0 | - |
|
数据表 |
QLK45 | Bulk | Active | 115VAC | Rectangular - 265mm L x 71mm H (45mm Dia) | 75.0 CFM (2.10m³/min) | - | Sleeve | - | Blower, Cross Flow | - | 79.00mm | 50.0dB(A) | 29.00W | - | - | - | Terminal Block | - |
|
|
11938TB-B0N-QA-00FAN 119MM X 38MM 200VAC TERMINAL |
0 | - |
|
数据表 |
11938TB | Bulk | Active | 200VAC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 50.0dB | 17.00W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
|
11938TB-A0N-LA-00FAN 119MM X 38MM 100VAC WIRE |
0 | - |
|
数据表 |
11938TB | Bulk | Active | 100VAC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 50.0dB | 17.00W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
|
11938TB-A0N-QA-00FAN 119MM X 38MM 100VAC TERMINAL |
0 | - |
|
数据表 |
11938TB | Bulk | Active | 100VAC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 50.0dB | 17.00W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
|
11938TB-B2N-QA-00FAN 119MM X 38MM 200VAC TERMINAL |
0 | - |
|
数据表 |
11938TB | Bulk | Active | 220VAC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 50.0dB | 17.00W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
|
11938TB-B4N-QA-00FAN 119MM X 38MM 240VAC TERMINAL |
0 | - |
|
数据表 |
11938TB | Bulk | Active | 240VAC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 50.0dB | 17.00W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
|
11938TB-A0N-LP-00FAN 100VAC 119X38MM WR |
0 | - |
|
数据表 |
11938TB | Bulk | Active | 100VAC | Square - 119mm L x 119mm H | 117.9 CFM (3.34m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 50.0dB | 17.00W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
OA172SAP-22-1TBSFFAN AXIAL 172X51MM 230VAC TERM |
0 | - |
|
数据表 |
OA172SAP | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Capacitor, Salt Fog Rated | 51.00mm | 58.0dB | 29.00W | cURus, TUV | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
|
R87F-A3A85HP115V AC FAN |
0 | - |
|
数据表 |
R87F | Bulk | Active | 115VAC | - | 32.1 CFM (0.899m³/min) | - | Ball | - | Tubeaxial | - | - | 43.0dB | 8.00W | CSA, UL | 3250 RPM | - | - | - |
|

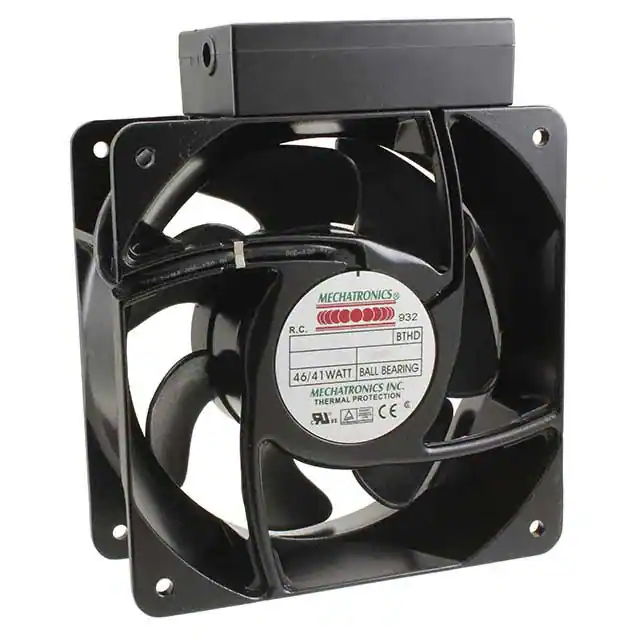

UF16FC23-BTHRFAN AXIAL 160X62MM 230VAC TERM |
0 | - |
|
数据表 |
UF16FC | Bulk | Active | 230VAC | Square - 160mm L x 160mm H | 265.0 CFM (7.42m³/min) | 0.720 in H2O (179.3 Pa) | Ball | 2.8 lbs (1.3 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 62.00mm | 56.0dB(A) | 41.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
4656ZWU-006AC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
