交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KTPS36-120300MP-VI-P1R-NAAC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
KTPS36 (36W) | Box | Active | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 12V | 3A | - | 36 W | - | Fixed Blade, Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.11" L x 1.38" W x 2.60" H (79.0mm x 35.0mm x 66.0mm) | 39.4" (1.00m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cUL, GS, PSE, RCM, UL | |
|
SWI24-12-E-P6RAC/DC WALL MOUNT ADAPTER 12V 24W |
0 | - |
|
数据表 |
SWI24-E (24W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 2A | - | 24 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|
|
SWI24-24-E-P6AC/DC WALL MOUNT ADAPTER 24V 24W |
0 | - |
|
数据表 |
SWI24-E (24W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 1A | - | 24 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|
|
SWI24-24-E-P6RAC/DC WALL MOUNT ADAPTER 24V 24W |
0 | - |
|
数据表 |
SWI24-E (24W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 1A | - | 24 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|
|
SWI24-15-E-P5AC/DC WALL MOUNT ADAPTER 15V 24W |
0 | - |
|
数据表 |
SWI24-E (24W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.6A | - | 24 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|
|
SWI24-15-E-P5RAC/DC WALL MOUNT ADAPTER 15V 24W |
0 | - |
|
数据表 |
SWI24-E (24W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.6A | - | 24 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|
|
SWI24-15-E-P6AC/DC WALL MOUNT ADAPTER 15V 24W |
0 | - |
|
数据表 |
SWI24-E (24W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.6A | - | 24 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|
|
SWI24-15-E-P6RAC/DC WALL MOUNT ADAPTER 15V 24W |
0 | - |
|
数据表 |
SWI24-E (24W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.6A | - | 24 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|

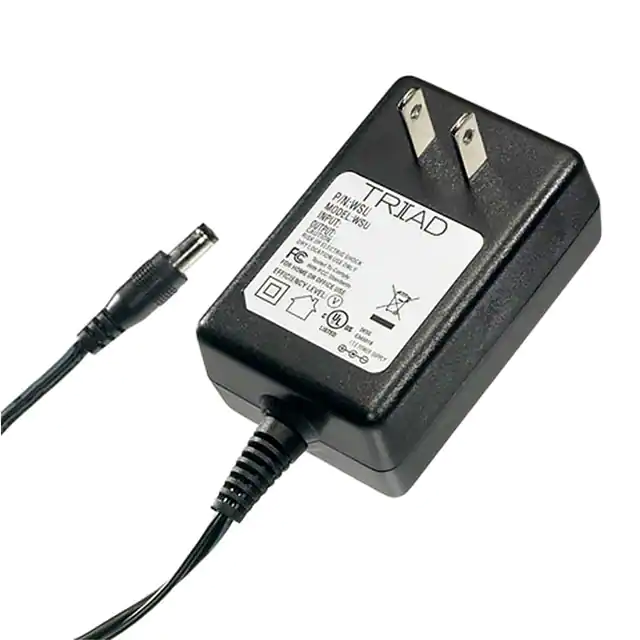

WSU060-3000AC/DC WALL MNT ADAPTER 5.9V 18W |
0 | - |
|
数据表 |
WSU | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5.9V | 3A | - | 18 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm) | 60" (1.52m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cETLus | |
|
|
SWH24-11-EW-P5RAC/DC WALL MOUNT ADAPTER 11V 24W |
0 | - |
|
数据表 |
SWH24-E (24W) | Bulk | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 11V | 2.2A | - | 24 W | 100mW | Fixed Blade | Positive Center | Household Appliances, ITE (Commercial) | KSC 8305 | 86.24% | 2.74" L x 1.75" W x 1.90" H (69.5mm x 44.4mm x 48.3mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
SWI18-9-E-P5RAC/DC WALL MOUNT ADAPTER 9V 20W |
0 | - |
|
数据表 |
SWI18-E (18W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.2A | - | 20 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|
|
SWI18-9-E-P6AC/DC WALL MOUNT ADAPTER 9V 20W |
0 | - |
|
数据表 |
SWI18-E (18W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.2A | - | 20 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|
|
SWI18-9-E-P6RAC/DC WALL MOUNT ADAPTER 9V 20W |
0 | - |
|
数据表 |
SWI18-E (18W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.2A | - | 20 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|
SDI12-5-UD-P5RAC/DC DESKTOP ADAPTER 5V 10W |
0 | - |
|
数据表 |
SDI12-UD (12W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI12-5-UD-P6RAC/DC DESKTOP ADAPTER 5V 10W |
0 | - |
|
数据表 |
SDI12-UD (12W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
WSU075-3200-RAC/DC WALL MNT ADAPTER 7.5V 24W |
0 | - |
|
数据表 |
WSU | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 7.5V | 3.2A | - | 24 W | 100mW (Max) | Fixed Blade | Negative Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | 48" (1.22m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cETLus | |
|
|
WSU135-1770AC/DC WALL MNT ADAPTER 13.5V 24W |
0 | - |
|
数据表 |
WSU | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 13.5V | 1.77A | - | 24 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cETLus | |
|
|
WSU135-1770-RAC/DC WALL MNT ADAPTER 13.5V 24W |
0 | - |
|
数据表 |
WSU | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 13.5V | 1.77A | - | 24 W | 100mW (Max) | Fixed Blade | Negative Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cETLus | |
|
WSU060-4000-R13AC/DC WALL MNT ADAPTER 5.9V 24W |
0 | - |
|
数据表 |
WSU | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5.9V | 4A | - | 24 W | 100mW (Max) | Fixed Blade | Negative Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | 48" (1.22m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | cETLus | |
|
|
WSU075-3200-R13AC/DC WALL MNT ADAPTER 7.5V 24W |
0 | - |
|
数据表 |
WSU | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 7.5V | 3.2A | - | 24 W | 100mW (Max) | Fixed Blade | Negative Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | 48" (1.22m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | cETLus |
