交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMM6-6-V-MUBAC/DC WALL MOUNT ADAPTER 6V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 6V | 1A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | - | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | USB Micro | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SMM6-5-V-P6RAC/DC WALL MOUNT ADAPTER 5V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1.2A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SMM6-5-V-P5AC/DC WALL MOUNT ADAPTER 5V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1.2A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SMM6-6-V-P7AC/DC WALL MOUNT ADAPTER 6V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 6V | 1A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SMM6-6-V-P5AC/DC WALL MOUNT ADAPTER 6V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 6V | 1A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SMM6-6-V-P6RAC/DC WALL MOUNT ADAPTER 6V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 6V | 1A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SMM6-5-V-MUBAC/DC WALL MOUNT ADAPTER 5V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1.2A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | - | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | USB Micro | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
SWH15-5B-NB-P6AC/DC WALL MOUNT ADAPTER 5V 15W |
0 | - |
|
数据表 |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 100mW | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | cULus, FCC | |
|
|
SWH15-5B-NB-P6RAC/DC WALL MOUNT ADAPTER 5V 15W |
0 | - |
|
数据表 |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 100mW | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | cULus, FCC | |
|
|
SWH15-5B-NB-P5RAC/DC WALL MOUNT ADAPTER 5V 15W |
0 | - |
|
数据表 |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 100mW | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus, FCC | |
|
SDI18-12-UD-P5AC/DC DESKTOP ADAPTER 12V 19W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 1.6A | - | 19 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-12-UD-P6RAC/DC DESKTOP ADAPTER 12V 19W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 1.6A | - | 19 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-15-UD-P5AC/DC DESKTOP ADAPTER 15V 19W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 1.3A | - | 19 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-15-UD-P5RAC/DC DESKTOP ADAPTER 15V 19W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 1.3A | - | 19 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-15-UD-P6AC/DC DESKTOP ADAPTER 15V 19W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 1.3A | - | 19 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-15-UD-P6RAC/DC DESKTOP ADAPTER 15V 19W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 1.3A | - | 19 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-24-UD-P5RAC/DC DESKTOP ADAPTER 24V 19W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 24V | 800mA | - | 19 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-24-UD-P6RAC/DC DESKTOP ADAPTER 24V 19W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 24V | 800mA | - | 19 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
WR9QD2000CCPNAIMR6BAC/DC WALL MOUNT ADAPTER 9V 18W |
0 | - |
|
数据表 |
GTM96180-1811-2.0 | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2A | - | 18 W | 75mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Household Appliances, ITE (Commercial), Medical | Multi-Blade | Level VI, CoC Tier 2 | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | 47.2" (1.20m) | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|

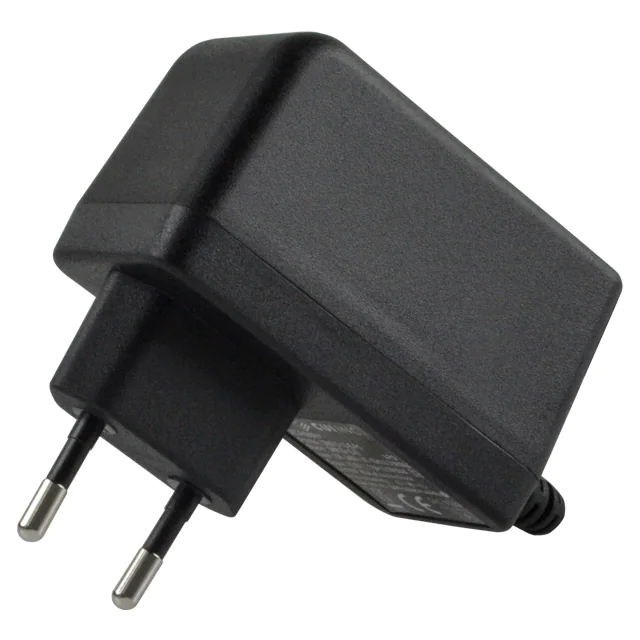

SWI12-12-N-P11AC/DC WALL MOUNT ADAPTER 12V 12W |
0 | - |
|
数据表 |
SWI12-N (12W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 3.15" H (71.9mm x 34.0mm x 80.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, FCC, IEC, PSE, UL |
