交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

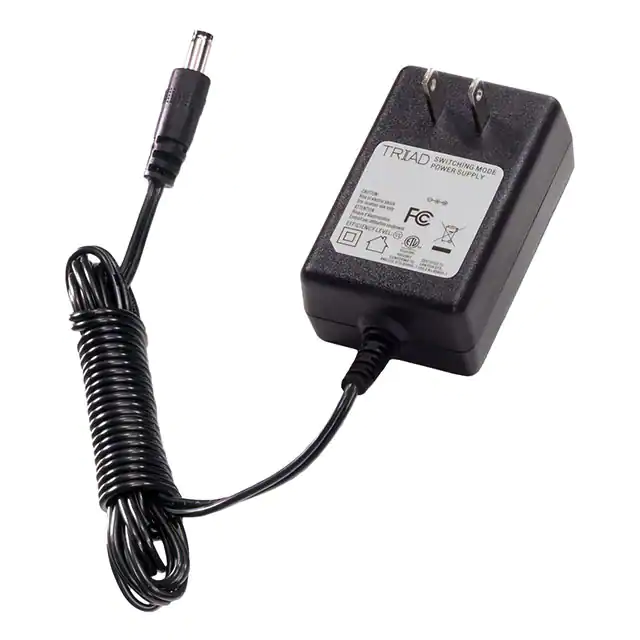

WSU090-2500-13AC/DC WALL MOUNT ADAPTER 9V 23W |
0 | - |
|
数据表 |
WSU | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.5A | - | 23 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | cETLus | |
|
|
WSU135-1770-13AC/DC WALL MNT ADAPTER 13.5V 24W |
0 | - |
|
数据表 |
WSU | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 13.5V | 1.77A | - | 24 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | cETLus | |
|
|
WSU180-1330-13AC/DC WALL MOUNT ADAPTER 18V 24W |
0 | - |
|
数据表 |
WSU | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 1.33A | - | 24 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | cETLus | |
|
SMM12-18-4B-P5AC-DC, 18 VDC, .66 A, SW, MULTI- |
0 | - |
|
数据表 |
SMM12 (12W) | Box | Active | International | Wall Mount | 90 ~ 264 VAC | 18V | 660mA | - | 12 W | 100mW | Multi-Blade (Included) | Positive Center | ITE (Commercial), Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, PSE, TUV | |
|
|
SMM12-18-4B-P6AC-DC, 18 VDC, .66 A, SW, MULTI- |
0 | - |
|
数据表 |
SMM12 (12W) | Box | Active | International | Wall Mount | 90 ~ 264 VAC | 18V | 660mA | - | 12 W | 100mW | Multi-Blade (Included) | Positive Center | ITE (Commercial), Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, PSE, TUV | |
|
|
SMM12-18-4B-P5RAC-DC, 18 VDC, .66 A, SW, MULTI- |
0 | - |
|
数据表 |
SMM12 (12W) | Box | Active | International | Wall Mount | 90 ~ 264 VAC | 18V | 660mA | - | 12 W | 100mW | Multi-Blade (Included) | Positive Center | ITE (Commercial), Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, PSE, TUV | |
|
|
ICM12-050UV1INT'L 12W POWER SUPPLY,WALL MOUN |
0 | - |
|
数据表 |
Tri-Mag®, ICM12 (12W) | Bulk | Active | International | Wall Mount | 90 ~ 264 VAC | 5V | 2.1A | - | 11 W | 100mW | Multi-Blade (Included) | - | ITE (Commercial) | Multi-Blade (Included) | Level VI | 2.32" L x 1.61" W x 1.28" H (58.9mm x 40.9mm x 32.5mm) | - | 0°C ~ 40°C | USB | CE, cUL, FCC, UL, VDE | |
|
KTPS24-24010WAAC/DC WALL MOUNT ADAPTER 24V 24W |
0 | - |
|
数据表 |
KTPS24 (24W) | Box | Obsolete | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 24V | 1A | - | 24 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | IEC | |
|
|
KTPS24-09025WA-VI-P2AC/DC WALL MOUNT ADAPTER 9V 23W |
0 | - |
|
数据表 |
KTPS24 (24W) | Box | Active | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 9V | 2.5A | - | 23 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | cUL, PSE, UL | |
|
SWH15-5B-NW-P6RAC/DC WALL MOUNT ADAPTER 5V 15W |
0 | - |
|
数据表 |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 100mW | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | cULus, FCC | |
|
|
SWH15-5B-NW-P5RAC/DC WALL MOUNT ADAPTER 5V 15W |
0 | - |
|
数据表 |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 100mW | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus, FCC | |
|
|
SWH15-5B-NW-P6AC/DC WALL MOUNT ADAPTER 5V 15W |
0 | - |
|
数据表 |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 100mW | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | cULus, FCC | |
|
ACM12US09AC/DC WALL MOUNT ADAPTER 9V 12W |
0 | - |
|
数据表 |
ACM12 (12W) | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.33A | - | 12 W | 75mW (Max) | Multi-Blade (Sold Separately) | - | ITE (Commercial), Medical | Multi-Blade (Sold Separately) | Level VI, CoC Tier 2 | 2.99" L x 1.19" W x 1.90" H (75.9mm x 30.2mm x 48.3mm) | 59" (1.50m) | -5°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CB, CE, TUV, UL | |
|
|
ACM12US18AC/DC WALL MOUNT ADAPTER 18V 12W |
0 | - |
|
数据表 |
ACM12 (12W) | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 666mA | - | 12 W | 75mW (Max) | Multi-Blade (Sold Separately) | - | ITE (Commercial), Medical | Multi-Blade (Sold Separately) | Level VI, CoC Tier 2 | 2.99" L x 1.19" W x 1.90" H (75.9mm x 30.2mm x 48.3mm) | 59" (1.50m) | -5°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CB, CE, TUV, UL | |
|
|
ACM12US24AC/DC WALL MOUNT ADAPTER 24V 12W |
0 | - |
|
数据表 |
ACM12 (12W) | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 500mA | - | 12 W | 75mW (Max) | Multi-Blade (Sold Separately) | - | ITE (Commercial), Medical | Multi-Blade (Sold Separately) | Level VI, CoC Tier 2 | 2.99" L x 1.19" W x 1.90" H (75.9mm x 30.2mm x 48.3mm) | 59" (1.50m) | -5°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CB, CE, TUV, UL | |
|
SMM6-5-V-P7AC/DC WALL MOUNT ADAPTER 5V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1.2A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SMM6-6-V-P6AC/DC WALL MOUNT ADAPTER 6V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 6V | 1A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SMM6-6-V-P5RAC/DC WALL MOUNT ADAPTER 6V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 6V | 1A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SMM6-5-V-P6AC/DC WALL MOUNT ADAPTER 5V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1.2A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SMM6-5-V-P5RAC/DC WALL MOUNT ADAPTER 5V 6W |
0 | - |
|
数据表 |
SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1.2A | - | 6 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL |
