交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GS25A18-P1JAC/DC DESKTOP ADAPTER 18V 25W |
0 | - |
|
数据表 |
GS25A (25W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 18V | 1.38A | - | 25 W | 300mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 3.66" L x 2.13" W x 1.42" H (93.0mm x 54.0mm x 36.0mm) | 72" (1.83m) | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CB, CCC, CE, cULus, EAC, FCC, GS, TUV | |
|
|
GS25E05-P1JAC/DC WALL MOUNT ADAPTER EU |
0 | - |
|
数据表 |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
GS25U28-P1JAC/DC WALL MOUNT ADAPTER USA |
0 | - |
|
数据表 |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
GS25U24-P1JAC/DC WALL MNT ADAPTER USA |
0 | - |
|
数据表 |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
GS25E28-P1JAC/DC WALL MOUNT ADAPTER EU |
0 | - |
|
数据表 |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
GS25A12-P1JAC/DC DESKTOP ADAPTER 12V 25W |
0 | - |
|
数据表 |
GS25A (25W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 2.08A | - | 25 W | 300mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level V | 3.66" L x 2.13" W x 1.42" H (93.0mm x 54.0mm x 36.0mm) | 48.4" (1.23m) | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CB, CCC, CE, cULus, EAC, FCC, GS, TUV | |
|
|
GS25E15-P1JAC/DC WALL MOUNT ADAPTER EU |
0 | - |
|
数据表 |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
SMI18-15-K-P8AC/DC WALL MOUNT ADAPTER 15V 20W |
0 | - |
|
数据表 |
SMI18 (18W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.3A | - | 20 W | 100mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | Multi-Blade (Sold Separately) | Level VI, CoC Tier 2 | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.8mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | |
|
SWI18-9-N-P7AC/DC WALL MOUNT ADAPTER 9V 20W |
0 | - |
|
数据表 |
SWI18-N (18W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.2A | - | 20 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.83" L x 1.34" W x 2.72" H (72.0mm x 34.0mm x 69.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, FCC, IEC, PSE, UL | |
|
GSM06E07-P1JAC/DC WALL MOUNT ADAPTER 7.5V 6W |
0 | - |
|
数据表 |
GSM06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | 85 ~ 264 VAC | 7.5V | 800mA | - | 6 W | 300mW (Max) | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level V | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | 48" (1.22m) | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, TUV | |
|
|
GSM06E12-P1JAC/DC WALL MOUNT ADAPTER 12V 6W |
0 | - |
|
数据表 |
GSM06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | 85 ~ 264 VAC | 12V | 500mA | - | 6 W | 300mW (Max) | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level V | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | 72" (1.83m) | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, TUV | |
|
|
GSM06E15-P1JAC/DC WALL MOUNT ADAPTER 15V 6W |
0 | - |
|
数据表 |
GSM06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | 85 ~ 264 VAC | 15V | 400mA | - | 6 W | 300mW (Max) | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level V | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | 72" (1.83m) | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, TUV | |
|
|
GSM06E24-P1JAC/DC WALL MOUNT ADAPTER 24V 6W |
0 | - |
|
数据表 |
GSM06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | 85 ~ 264 VAC | 24V | 250mA | - | 6 W | 300mW (Max) | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level V | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | 72" (1.83m) | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, TUV | |
|
GSM06U09-P1JAC/DC WALL MOUNT ADAPTER 9V 6W |
0 | - |
|
数据表 |
GSM06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 85 ~ 264 VAC | 9V | 660mA | - | 6 W | 300mW (Max) | Fixed Blade | Positive Center | Medical | NEMA 1-15P | Level V | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | 48" (1.22m) | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cURus | |
|
|
GSM06U18-P1JAC/DC WALL MOUNT ADAPTER 18V 6W |
0 | - |
|
数据表 |
GSM06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 85 ~ 264 VAC | 18V | 330mA | - | 6 W | 300mW (Max) | Fixed Blade | Positive Center | Medical | NEMA 1-15P | Level V | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | 72" (1.83m) | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cURus | |
|
GST36B12-P1MAC/DC DESKTOP ADAPTER 12V 36W |
0 | - |
|
数据表 |
GST36B (36W) | Box | Active | International | Desktop (Class II) | 85 ~ 264 VAC | 12V | 3A | - | 36 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | 39.4" (1.00m) | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
TR9WB3000T00-IMR6BAC/DC DESKTOP ADAPTER 5.95V 18W |
15 | - |
|
数据表 |
GTM96180-1807-1.05-T2A | Bulk | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 5.95V | 3A | - | 18 W | 75mW (Max) | Cord (Sold Separately) | Either | Household Appliances, ITE (Commercial), Medical | IEC 320-C18 | Level VI, CoC Tier 2 | 3.43" L x 1.83" W x 1.26" H (87.0mm x 46.5mm x 32.0mm) | 47.2" (1.20m) | -10°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
TR9WG1200T00-IMR6BAC/DC DESKTOP ADAPTER 15V 18W |
11 | - |
|
数据表 |
GTM96180-1817.9-2.9-T2A | Bulk | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 1.2A | - | 18 W | 75mW (Max) | Cord (Sold Separately) | Either | Household Appliances, ITE (Commercial), Medical | IEC 320-C18 | Level VI, CoC Tier 2 | 3.43" L x 1.83" W x 1.26" H (87.0mm x 46.5mm x 32.0mm) | 59" (1.50m) | -10°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|

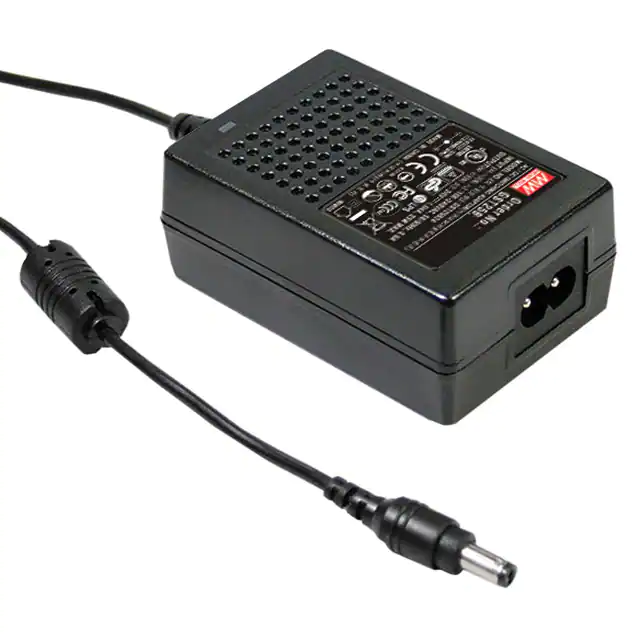

GST25B07-P1JAC/DC DESKTOP ADAPTER 7.5V 22W |
0 | - |
|
数据表 |
GST25B (25W) | Box | Active | International | Desktop (Class II) | 85 ~ 264 VAC | 7.5V | 2.93A | - | 22 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | 39.4" (1.00m) | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
|
GST25B15-P1JAC/DC DESKTOP ADAPTER 15V 25W |
0 | - |
|
数据表 |
GST25B (25W) | Box | Active | International | Desktop (Class II) | 85 ~ 264 VAC | 15V | 1.66A | - | 25 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | 70.9" (1.80m) | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
