交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QPS-20-5AC/DC CONVERTER 5V 20W |
0 | - |
|
数据表 |
QPS-20 (20W) | Box | Obsolete | Open Frame | 1 | 5V | - | - | 20W | - | - | 85 ~ 264 VAC | - | 4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) | ||
|
|
QPS-20-12AC/DC CONVERTER 12V 20W |
0 | - |
|
数据表 |
QPS-20 (20W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 20W | - | - | 85 ~ 264 VAC | - | 1.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) | ||
|
|
QPS-20-3.3AC/DC CONVERTER 3.3V 20W |
0 | - |
|
数据表 |
QPS-20 (20W) | Bulk | Obsolete | Open Frame | 1 | 3.3V | - | - | 20W | - | - | 90 ~ 264 VAC | - | 4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) | ||
|
VGS-75C-15-AAC/DC CONVERTER 15V 75W |
0 | - |
|
数据表 |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 75W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
|
VGS-75C-48-AAC/DC CONVERTER 48V 77W |
0 | - |
|
数据表 |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 77W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 1.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
|
VGS-75C-12-AAC/DC CONVERTER 12V 72W |
0 | - |
|
数据表 |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 72W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
VGS-75C-12-BAC/DC CONVERTER 12V 72W |
0 | - |
|
数据表 |
VGS-75C | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 72W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
VOF-45C-S9AC/DC CONVERTER 9V 40W |
0 | - |
|
数据表 |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 9V | - | - | 40W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 4.444 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | ||
|
|
VOF-45C-S15AC/DC CONVERTER 15V 45W |
0 | - |
|
数据表 |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 15V | - | - | 45W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | ||
|
|
VOF-45C-S3AC/DC CONVERTER 3.3V 26W |
0 | - |
|
数据表 |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 3.3V | - | - | 26W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 8 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | ||
|
|
VOF-45C-S5AC/DC CONVERTER 5V 40W |
0 | - |
|
数据表 |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 5V | - | - | 40W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 8 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | ||
|

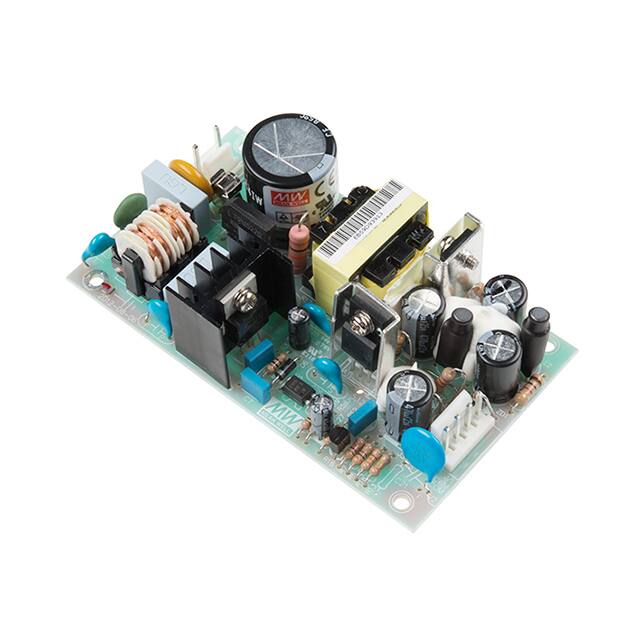

TOL-14101AC/DC CONVERTER +/-15V 25W |
0 | - |
|
数据表 |
PD-25 (25W) | Bulk | Active | Open Frame | 2 | 15V | -15V | - | 25W | - | - | 85 ~ 264 VAC | - | 800 mA | - | 800 mA | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm) | ||
|
PSK-S15C-24-TAC/DC CONVERTER 24V 15W |
0 | - |
|
数据表 |
PSK-S15C (15W) | Tray | Obsolete | Enclosed | 1 | 24V | - | - | 15W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 625 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 1.27" H (76.0mm x 31.5mm x 32.3mm) | ||
|
LM50-23B05-QAC/DC CONVERTER 5V 50W |
1 | - |
|
数据表 |
LM50-23Bxx-Q (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 5V | - | - | 50W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
NEVO+600S-0353-DK000AC/DC CNVRTR 24V 2X12V 24V 450W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 24V | 12V | 12V | 450W | 24V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 5 A | ITE (Commercial) | - | 5 A | 7.5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-1033-DK000AC/DC CONVERTER 5V 2X24V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 5V | 24V | 24V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 7.5 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-C##KEK-00AC/DC CNVRTR 5V 48V 12V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NEVO+600SL-5301-DK000AC/DC CNVRTR 2X12V 24V 5V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 12V | 12V | 24V | 425W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 7.5 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
|
NEVO+600SL-3120-DK000AC/DC CONVERTER 24V 5V 12V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 24V | 5V | 12V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 25 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
|
NEVO+600S-1034-DK000AC/DC CONVERTER 5V 24V 48V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 5V | 24V | 48V | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 7.5 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) |
