交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM50-23B15-CAC/DC CONVERTER 15V 51W |
1 | - |
|
数据表 |
LM50-23Bxx-C (50W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 51W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM50-20B15-QAC/DC CONVERTER 15V 51W |
1 | - |
|
数据表 |
LM50-20Bxx-Q (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 51W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM200-22B48R2AC/DC CONVERTER 48V 211W |
0 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 211W | - | - | 176 ~ 305 VAC, 240 ~ 430 VDC | - | 4.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
VMS-180-12AC/DC CONVERTER 12V 120W |
72 | - |
|
数据表 |
VMS-180 (180W) | Tray | Active | Open Frame | 1 | 12V | - | - | 120W (180W Forced Air) | - | - | 80 ~ 264 VAC | - | 10 A | - | - | Medical | - | - | - | 4.2 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) | ||
|

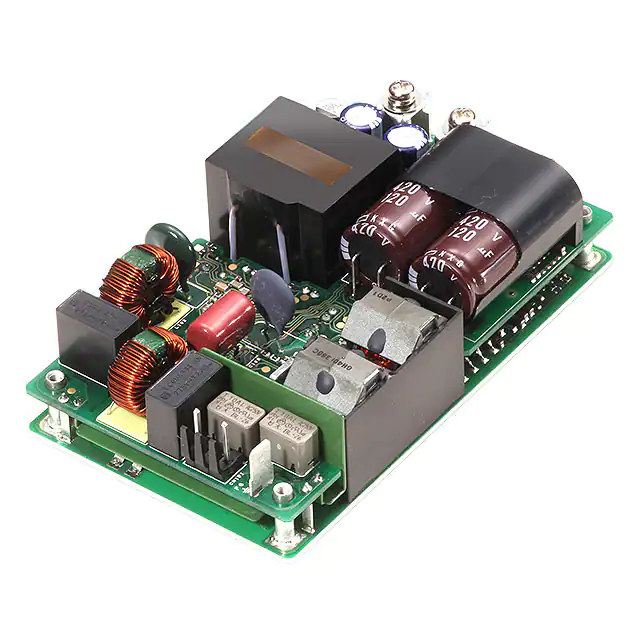

GHA300F-24AC/DC CONVERTER 24V 100W |
677 | - |
|
数据表 |
GHA (300W) | Box | Active | Open Frame | 1 | 24V | - | - | 100W (300W Forced Air) | - | - | 90 ~ 264 VAC | - | 4.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) | ||
|
HEP-320-48AAC/DC CONVERTER 48V 322W |
27 | - |
|
数据表 |
HEP-320 (320W) | Box | Active | Enclosed | 1 | 48V | - | - | 322W | - | - | 90 ~ 305 VAC, 127 ~ 431 VDC | - | 6.7 A | - | - | ITE (Commercial) | - | - | - | 3.75 kV | -55°C ~ 70°C (With Derating) | Adjustable Output, IP65, PFC, Universal Input | Chassis Mount | 9.92" L x 3.54" W x 1.72" H (252.0mm x 90.0mm x 43.8mm) | ||
|

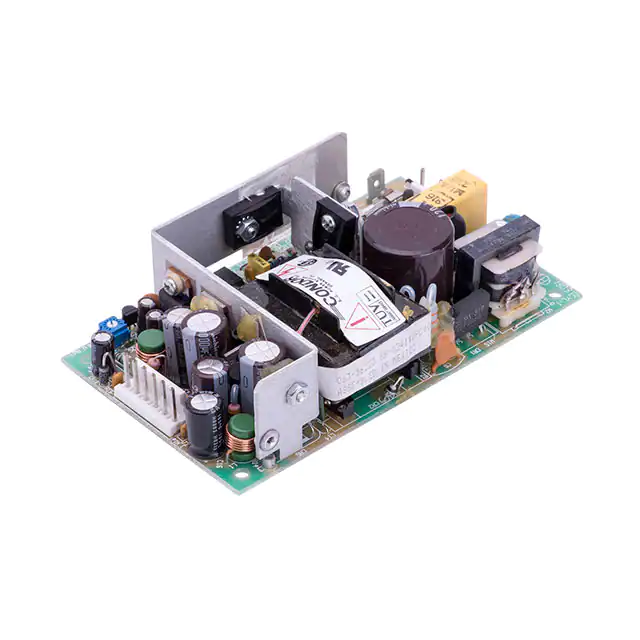

GPM40AGAC/DC CONVERTER 5.1V +/-12V 40W |
114 | - |
|
数据表 |
GPM40 (40W) | Box | Active | Open Frame | 3 | 5.1V | 12V | -12V | 40W (50W Forced Air) | - | - | 85 ~ 264 VAC | - | 4 A | - | 2 A | Medical | - | 400 mA | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) | ||
|
TPP 300-112A-MAC/DC CONVERTER 12V 180W |
28 | - |
|
数据表 |
TPP 300A-M (300W) | Box | Active | Open Frame | 1 | 12V | - | - | 180W (300W Forced Air) | - | - | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | - | 25 A | - | - | ITE (Commercial), Medical | - | - | - | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | ||
|

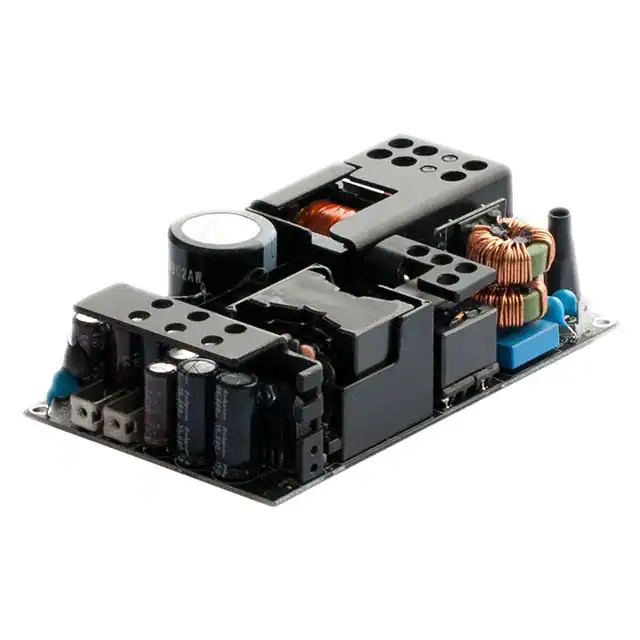

MDS-300APB24 AAAC/DC CONVERTER 24V 240W |
75 | - |
|
数据表 |
MDS-300 (300W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 240W (300W Forced Air) | - | - | 90 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -10°C ~ 70°C (With Derating) | PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | ||
|
|

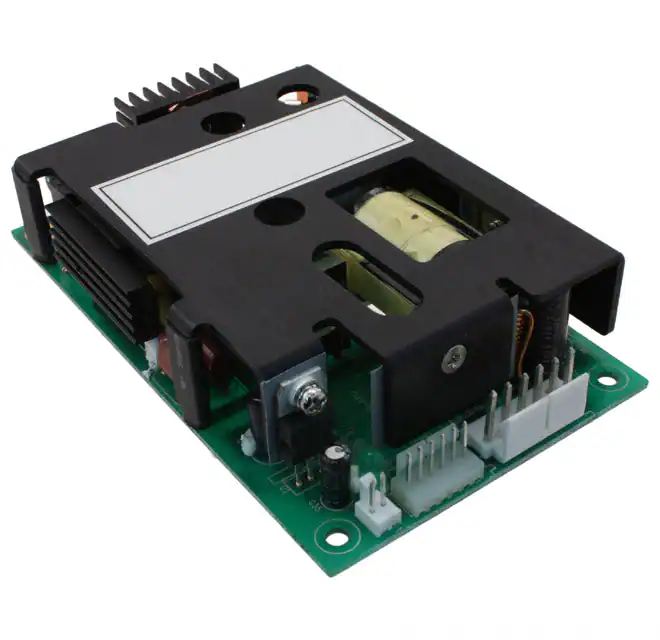

MPB125-4350RGAC/DC CNVRTR 3.3V 5V +/-12V 125W |
307 | - |
|
数据表 |
MPB125 (125W) | Bulk | Active | Open Frame | 4 | 3.3V | 5V | 12V | 125W | -12V | - | 90 ~ 264 VAC | - | 10 A | - | 15 A | ITE (Commercial) | - | 5 A | 500 mA | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
HRP-600-36AC/DC CONVERTER 36V 630W |
0 | - |
|
数据表 |
HRP-600 (600W) | Box | Active | Enclosed | 1 | 36V | - | - | 630W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 17.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) | ||
|
NMP1K2-C##KCH-00AC/DC CNVRTR 5V 48V 5V 24V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 5V | 840W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C##KCK-00AC/DC CNVRTR 5V 48V 5V 48V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 5V | 840W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C##KEC-00AC/DC CNVRTR 5V 48V 12V 5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C##KEE-00AC/DC CNVRTR 5V 48V 2X12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C##KEH-00AC/DC CNVRTR 5V 48V 12V 24V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 12V | 900W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
HRP-600-48AC/DC CONVERTER 48V 624W |
149 | - |
|
数据表 |
HRP-600 (600W) | Box | Active | Enclosed | 1 | 48V | - | - | 624W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 13 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) | ||
|
HRP-600-24AC/DC CONVERTER 24V 648W |
73 | - |
|
数据表 |
HRP-600 (600W) | Box | Active | Enclosed | 1 | 24V | - | - | 648W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 27 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) | ||
|
LM200-22B12R2AC/DC CONVERTER 12V 204W |
0 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 204W | - | - | 176 ~ 305 VAC, 240 ~ 430 VDC | - | 17 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
NEVO+600SL-1013-DK000AC/DC CONVERTER 2X5V 24V 400W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 5V | 5V | 24V | 400W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 25 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) |
