交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Series_OpenFrame.jpg)
|
VF-S250-12AAC/DC CONVERTER 12V 250W |
94 | - |
|
数据表 |
VF-S250 (250W) | Tray | Active | Open Frame | 1 | 12V | - | - | 250W | - | - | 90 ~ 264 VAC | - | 20.83 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) | ||
|
LFWLP350-1001AC/DC CONVERTER 12V 180W |
54 | - |
|
数据表 |
WLP350 (350W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 180W (300W Forced Air) | - | - | 90 ~ 264 VAC, 390VDC | - | 15 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
SMP350PS12AC/DC CONVERTER 12V 300W |
114 | - |
|
数据表 |
SMP350 (350W) | Box | Active | Enclosed | 1 | 12V | - | - | 300W | - | - | 85 ~ 264 VAC | - | 25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off | Chassis Mount | 7.00" L x 3.60" W x 1.70" H (177.8mm x 91.4mm x 43.2mm) | ||
|
|
SMP350PS24AC/DC CONVERTER 24V 350W |
107 | - |
|
数据表 |
SMP350 (350W) | Box | Active | Enclosed | 1 | 24V | - | - | 350W | - | - | 85 ~ 264 VAC | - | 14.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off | Chassis Mount | 7.00" L x 3.60" W x 1.70" H (177.8mm x 91.4mm x 43.2mm) | ||
|
|
SMP350PS28AC/DC CONVERTER 28V 350W |
68 | - |
|
数据表 |
SMP350 (350W) | Box | Active | Enclosed | 1 | 28V | - | - | 350W | - | - | 85 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off | Chassis Mount | 7.00" L x 3.60" W x 1.70" H (177.8mm x 91.4mm x 43.2mm) | ||
.jpg)
|
FSP600-80PSA(SK)AC/DC CNVRTR 3.3V 5V 4X12V 982W |
96 | - |
|
数据表 |
FSP600-80PSA(SK) (600W) | Box | Active | ATX | 8 | 3.3V | 5V | 12V | 982W | 12V | 12V | 90 ~ 264 VAC | 12V | 25 A | 16 A | 25 A | ITE (Commercial) | 16 A | 16 A | 16 A | - | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.51" L x 5.91" W x 3.39" H (140.0mm x 150.1mm x 86.1mm) | ||
|
PLA600F-12AC/DC CONVERTER 12V 600W |
50 | - |
|
数据表 |
PLA (600W) | Box | Active | Enclosed | 1 | 12V | - | - | 600W | - | - | 85 ~ 264 VAC | - | 50 A | - | - | ITE (Commercial) | - | - | - | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - | ||
|
MPB125-4350GAC/DC CNVRTR 3.3V 5V +/-12V 125W |
74 | - |
|
数据表 |
MPB125 (125W) | Bulk | Active | Open Frame | 4 | 3.3V | 5V | 12V | 125W | -12V | - | 90 ~ 264 VAC | - | 10 A | - | 15 A | ITE (Commercial) | - | 5 A | 500 mA | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|

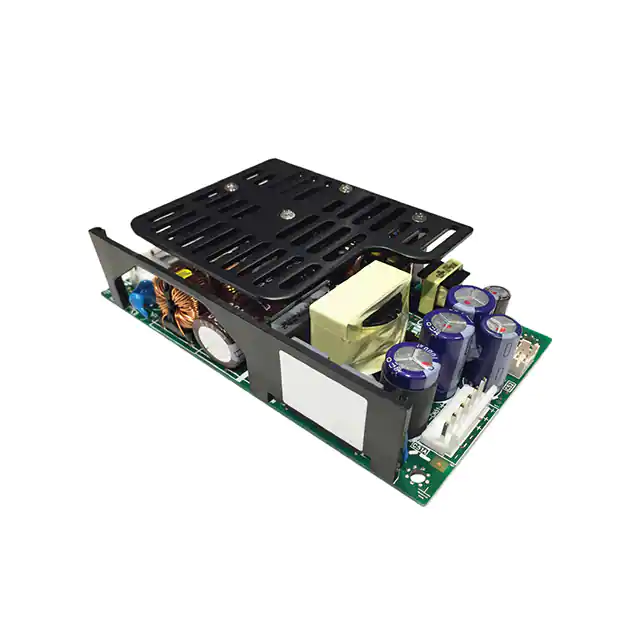

CUS200M-18AC/DC CONVERTER 18V 200W |
658 | - |
|
数据表 |
CUS200M (200-250W) | Box | Active | Open Frame | 1 | 18V | - | - | 200W (250W Forced Air) | - | - | 85 ~ 265 VAC | - | 11.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 31.0mm) | ||
|
|
CUS200M-24AC/DC CONVERTER 24V 200W |
26 | - |
|
数据表 |
CUS200M (200-250W) | Box | Active | Open Frame | 1 | 24V | - | - | 200W (250W Forced Air) | - | - | 85 ~ 265 VAC | - | 8.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 31.0mm) | ||
|
GB130QP-CAC/DC CNVRTR 5V 24V +/-12V 182W |
37 | - |
|
数据表 |
GB130Q-C (130W) | Box | Active | Enclosed | 4 | 5V | 24V | -12V | 182W (238W Forced Air) | 12V | - | 90 ~ 264 VAC | - | 10 A | - | 4 A | ITE (Commercial), Medical | - | 1 A | 2 A | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.33" L x 3.46" W x 1.79" H (135.5mm x 87.8mm x 45.4mm) | ||
|
HC5-6/OVP-AGAC/DC CONVERTER 5V 30W |
237 | - |
|
数据表 |
Linear C | Bulk | Active | Linear | 1 | 5V | - | - | 30W | - | - | 100, 120, 220, 230, 240 VAC | - | 6 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 5.62" L x 4.87" W x 2.95" H (142.8mm x 123.7mm x 74.9mm) | ||
|
HRP-450-48AC/DC CONVERTER 48V 456W |
441 | - |
|
数据表 |
HRP-450 (450W) | Box | Active | Enclosed | 1 | 48V | - | - | 456W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 9.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
|
HRP-450-24AC/DC CONVERTER 24V 451W |
48 | - |
|
数据表 |
HRP-450 (450W) | Box | Active | Enclosed | 1 | 24V | - | - | 451W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 18.8 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
NMP1K2-C##HEC-00AC/DC CNVRTR 5V 24V 12V 5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 12V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 20 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-C##HEE-00AC/DC CNVRTR 5V 24V 2X12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 12V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 20 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-C##HEH-00AC/DC CNVRTR 5V 24V 12V 24V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 12V | 900W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 20 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-C##HEK-00AC/DC CNVRTR 5V 24V 12V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 12V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 20 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-C##HHC-00AC/DC CONVERTER 5V 2X24V 5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 24V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-C##HHE-00AC/DC CNVRTR 5V 2X24V 12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 24V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
