交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|

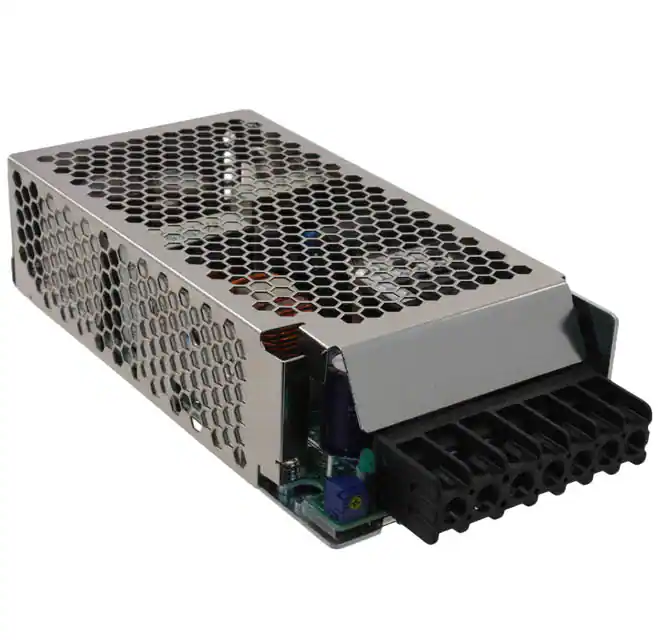

HWS150A-12/AAC/DC CONVERTER 12V 150W |
899 | - |
|
数据表 |
HWS-A (150W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 150W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 13 A | - | - | Industrial, ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.30" L x 1.65" W x 3.23" H (160.0mm x 41.9mm x 82.0mm) | ||
|
HRPG-600-48AC/DC CONVERTER 48V 624W |
41 | - |
|
数据表 |
HRPG-600 (600W) | Box | Active | Enclosed | 1 | 48V | - | - | 624W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 13 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) | ||
|
SHP350PS24AC/DC CONVERTER 24V 350W |
200 | - |
|
数据表 |
SHP (350W) | Box | Active | Enclosed | 1 | 24V | - | - | 350W | - | - | 85 ~ 264 VAC | - | 14.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.60" W x 2.10" H (177.8mm x 91.4mm x 53.3mm) | ||
|
SHP350PS48AC/DC CONVERTER 48V 350W |
122 | - |
|
数据表 |
SHP (350W) | Box | Active | Enclosed | 1 | 48V | - | - | 350W | - | - | 85 ~ 264 VAC | - | 7.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.60" W x 2.10" H (177.8mm x 91.4mm x 53.3mm) | ||
|
SHP350PS36AC/DC CONVERTER 36V 350W |
118 | - |
|
数据表 |
SHP (350W) | Box | Active | Enclosed | 1 | 36V | - | - | 350W | - | - | 85 ~ 264 VAC | - | 9.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.60" W x 2.10" H (177.8mm x 91.4mm x 53.3mm) | ||
|
SHP350PS28AC/DC CONVERTER 28V 350W |
98 | - |
|
数据表 |
SHP (350W) | Box | Active | Enclosed | 1 | 28V | - | - | 350W | - | - | 85 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.60" W x 2.10" H (177.8mm x 91.4mm x 53.3mm) | ||
|
IMA-S600-48-ZYPLIAC/DC CONVERTER 48V 600W |
54 | - |
|
数据表 |
IMA-600 (600W) | Box | Active | Enclosed | 1 | 48V | - | - | 600W | - | - | 80 ~ 275 VAC, 120 ~ 300 VDC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) | ||
|
|
GCS350PS24AC/DC CONVERTER 24V 200W |
128 | - |
|
数据表 |
GCS (350W) | Box | Active | Open Frame | 1 | 24V | - | - | 200W (350W Forced Air) | - | - | 85 ~ 264 VAC | - | 8.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C | 80 Plus® Silver, Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
VF-S320-24A-CFSAC/DC CONVERTER 24V 320W |
755 | - |
|
数据表 |
VF-S320 (320W) | Box | Active | Enclosed | 1 | 24V | - | - | 320W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC | - | 13.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) | ||
|
VF-S320-12A-CFSAC/DC CONVERTER 12V 320W |
207 | - |
|
数据表 |
VF-S320 (320W) | Box | Active | Enclosed | 1 | 12V | - | - | 320W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC | - | 26.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) | ||
|
HN15-4.5-AGAC/DC CONVERTER 15V 68W |
146 | - |
|
数据表 |
Linear N | Bulk | Active | Linear | 1 | 15V | - | - | 68W | - | - | 100, 120, 220, 230, 240 VAC | - | 4.5 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 7.00" L x 4.87" W x 3.28" H (177.8mm x 123.7mm x 83.3mm) | ||
|
MSP-450-12AC/DC CONVERTER 12V 450W |
38 | - |
|
数据表 |
MSP-450 (450W) | Box | Active | Enclosed | 1 | 12V | - | - | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 37.5 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
LCC250-12U-4PAC/DC CONVERTER 12V 250W |
405 | - |
|
数据表 |
LCC250 (250W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 250W | - | - | 90 ~ 264 VAC | - | 20.8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, IP64, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.48" H (177.8mm x 101.4mm x 37.6mm) | ||
|
LM50-23B05-CAC/DC CONVERTER 5V 50W |
1 | - |
|
数据表 |
LM50-23Bxx-C (50W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 50W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM50-20B05-QAC/DC CONVERTER 5V 50W |
1 | - |
|
数据表 |
LM50-20Bxx-Q (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM50-20B05-CAC/DC CONVERTER 5V 50W |
0 | - |
|
数据表 |
LM50-20Bxx-C (50W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|

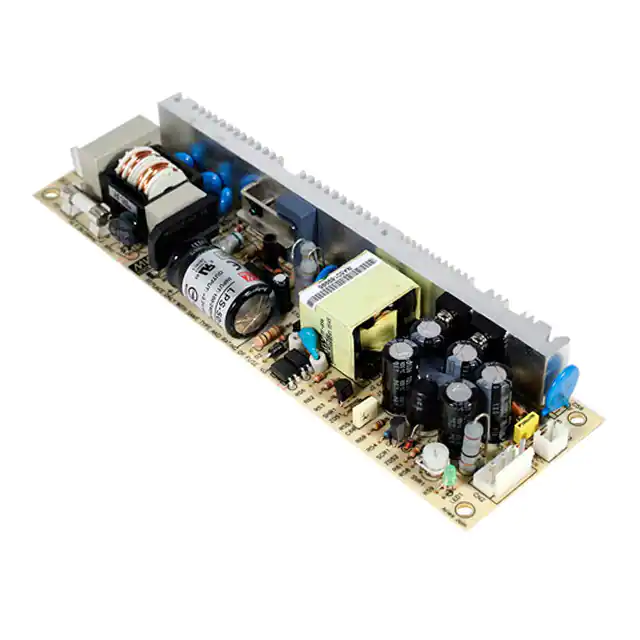

LPS-50-15AC/DC CONVERTER 15V 51W |
0 | - |
|
数据表 |
LPS-50 (50W) | Box | Active | Open Frame | 1 | 15V | - | - | 51W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 3.4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 7.68" L x 2.17" W x 0.91" H (195.0mm x 55.0mm x 23.0mm) | ||
|
LPS-50-3.3AC/DC CONVERTER 3.3V 33W |
0 | - |
|
数据表 |
LPS-50 (50W) | Box | Active | Open Frame | 1 | 3.3V | - | - | 33W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 7.68" L x 2.17" W x 0.91" H (195.0mm x 55.0mm x 23.0mm) | ||
|

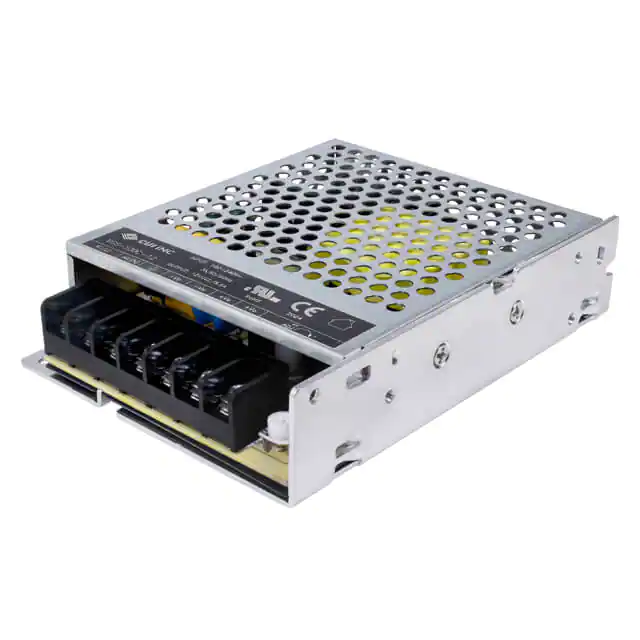

VGS-100C-24AC/DC CONVERTER 24V 108W |
0 | - |
|
数据表 |
VGS-100C | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 108W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 4.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
ECM100UQ43AC/DC CNVRTR 5V 24V +/-12V 80W |
178 | - |
|
数据表 |
ECM (100W) | Box | Active | Open Frame | 4 | 5V | 24V | 12V | 80W (100W Forced Air) | -12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 2 A | ITE (Commercial), Medical | - | 800 mA | 500 mA | 4 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
