交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPP 100-124AC/DC CONVERTER 24V 100W |
250 | - |
|
数据表 |
TPP 100 (100W) | Box | Active | Enclosed | 1 | 24V | - | - | 100W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.17 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 85°C (With Derating) | Adjustable Output, IP20, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.54" H (91.4mm x 62.0mm x 39.1mm) | ||
|
LO65-10B48AC/DC CONVERTER 48V 65W |
0 | - |
|
数据表 |
LO65-10Bxx (65W) | Tray | Not For New Designs | Open Frame | 1 | 48V | - | - | 65W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 1.36 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | ||
|
TPP 100-112AC/DC CONVERTER 12V 100W |
216 | - |
|
数据表 |
TPP 100 (100W) | Box | Active | Enclosed | 1 | 12V | - | - | 100W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.34 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 85°C (With Derating) | Adjustable Output, IP20, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.54" H (91.4mm x 62.0mm x 39.1mm) | ||
|
|
HAA5-1.5/OVP-AGAC/DC CONVERTER +/-5V 15W |
145 | - |
|
数据表 |
Linear AA | Bulk | Active | Linear | 2 | 5V | -5V | - | 15W | - | - | 100, 120, 220, 230, 240 VAC | - | 1.5 A | - | 1.5 A | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 6.50" L x 4.00" W x 1.62" H (165.1mm x 101.6mm x 41.2mm) | ||
|
FSP500-50FDBAC/DC CNVRTR 3.3V 5V +/-12V 624W |
177 | - |
|
数据表 |
FSP500-50FDB (500W) | Box | Active | Enclosed | 4 | 3.3V | 5V | 12V | 624W | -12V | - | 90 ~ 264 VAC | - | 14 A | - | 16 A | ITE (Commercial) | - | 41 A | 500 mA | - | 0°C ~ 50°C | Standby Output, Universal Input | Chassis Mount | 5.90" L x 3.21" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) | ||
|
RACM65-12SAC/DC CONVERTER 12V 65W |
115 | - |
|
数据表 |
MEDLINE RACM65 (65W) | Box | Active | Enclosed | 1 | 12V | - | - | 65W | - | - | 85 ~ 264 VAC | - | 5.42 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.60" L x 2.38" W x 1.31" H (91.4mm x 60.5mm x 33.3mm) | ||
|

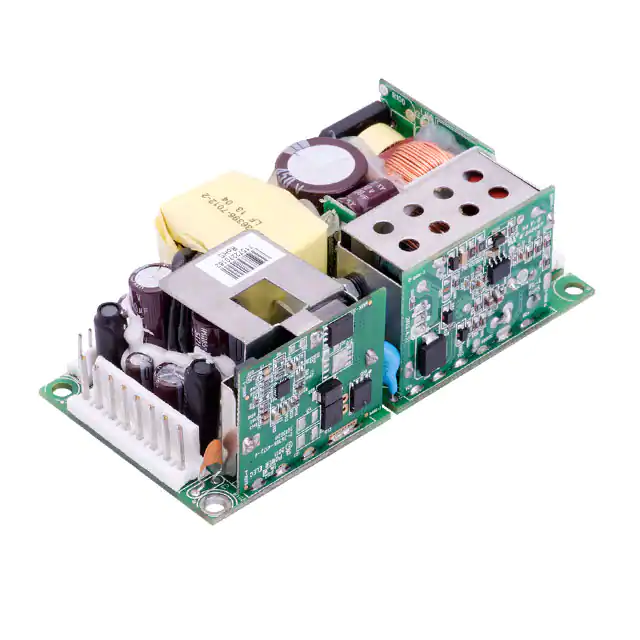

MINT3110A1708K01AC/DC CONVERTER 5V +/-15V 80W |
310 | - |
|
数据表 |
MINT3110 (110W) | Box | Active | Open Frame | 3 | 5V | 15V | -15V | 80W (110W Forced Air) | - | - | 90 ~ 264 VAC | - | 10 A | - | 3.5 A | Medical | - | 1 A | - | 4 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) | ||
|
PBA150F-24-NAC/DC CONVERTER 24V 150W |
392 | - |
|
数据表 |
PBA (150W) | Box | Active | Enclosed | 1 | 24V | - | - | 150W | - | - | 85 ~ 264 VAC | - | 6.5 A | - | - | ITE (Commercial) | - | - | - | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
|
RACM30-15DK/277/OFAC/DC CONVERTER +/-15V 30W |
0 | - |
|
数据表 |
POWERLINE Power Modules (30W) | Tray | Active | Open Frame | 2 | 15V | -15V | - | 30W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1 A | - | 1 A | ITE (Commercial), Laboratory, Medical | - | - | - | 4 kV | -40°C ~ 90°C (With Derating) | - | Chassis Mount | 3.00" L x 1.50" W x 0.98" H (76.2mm x 38.1mm x 25.0mm) | ||
|
VCCS300S-24AC/DC CONVERTER 24V 300W |
977 | - |
|
数据表 |
VCCS300S (300W) | Box | Active | Open Frame | 1 | 24V | - | - | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 12.5 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 3.99" L x 2.13" W x 1.58" H (101.3mm x 54.0mm x 40.2mm) | ||
|
RACM30-12DK/277/OFAC/DC CONVERTER +/-12V 30W |
0 | - |
|
数据表 |
POWERLINE Power Modules (30W) | Tray | Active | Open Frame | 2 | 12V | -12V | - | 30W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.25 A | - | 1.25 A | ITE (Commercial), Laboratory, Medical | - | - | - | 4 kV | -40°C ~ 90°C (With Derating) | - | Chassis Mount | 3.00" L x 1.50" W x 0.98" H (76.2mm x 38.1mm x 25.0mm) | ||
|
VCCS300S-12AC/DC CONVERTER 12V 300W |
748 | - |
|
数据表 |
VCCS300S (300W) | Box | Active | Open Frame | 1 | 12V | - | - | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 3.99" L x 2.13" W x 1.58" H (101.3mm x 54.0mm x 40.2mm) | ||
|
NEVO+600SL-5210-DK000AC/DC CONVERTER 3X12V 5V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 12V | 12V | 12V | 425W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 15 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
PSK-10W-3-TAC/DC CONVERTER 3.3V 6.6W |
0 | - |
|
数据表 |
PSK-10W | Tray | Obsolete | Enclosed | 1 | 3.3V | - | - | 6.6W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 2 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.09" H (76.0mm x 31.5mm x 27.8mm) | ||
|
VCCS300S-15AC/DC CONVERTER 15V 300W |
112 | - |
|
数据表 |
VCCS300S (300W) | Box | Active | Open Frame | 1 | 15V | - | - | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 20 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, IP10, Load Sharing, PFC, Universal Input | Chassis Mount | 3.99" L x 2.13" W x 1.58" H (101.3mm x 54.0mm x 40.2mm) | ||
|
NEVO+600S-0153-DK000AC/DC CNVRTR 5V 2X12V 24V 425W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 5V | 12V | 12V | 425W | 24V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 5 A | ITE (Commercial) | - | 5 A | 7.5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
PSK-10W-9-TAC/DC CONVERTER 9V 10W |
0 | - |
|
数据表 |
PSK-10W | Tray | Obsolete | Enclosed | 1 | 9V | - | - | 10W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.1 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.09" H (76.0mm x 31.5mm x 27.8mm) | ||
|
NEVO+600SL-5204-DK000AC/DC CONVERTER 3X12V 48V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 12V | 12V | 12V | 450W | 48V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 15 A | 3.75 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
FSP500-80AGGBM(M)AC/DC CNVT 3.3V 5V 4X12V 751W |
248 | - |
|
数据表 |
FSP500-80AGGBM(M) (500W) | Box | Active | ATX | 6 | 3.3V | 5V | 12V | 751W | 12V | 12V | 90 ~ 264 VAC | 12V | 21 A | 500 mA | 20 A | ITE (Commercial) | 16 A | 16 A | 16 A | - | 0°C ~ 50°C | Standby Output, Universal Input | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.1mm x 140.0mm x 86.1mm) | ||
|
NEVO+600S-3204-DK000AC/DC CONVERTER 24V 12V 48V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 24V | 12V | 48V | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 15 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) |
