交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMP1K2-C##CCE-00AC/DC CONVERTER 3X5V 12V 780W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 5V | 780W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 36 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|

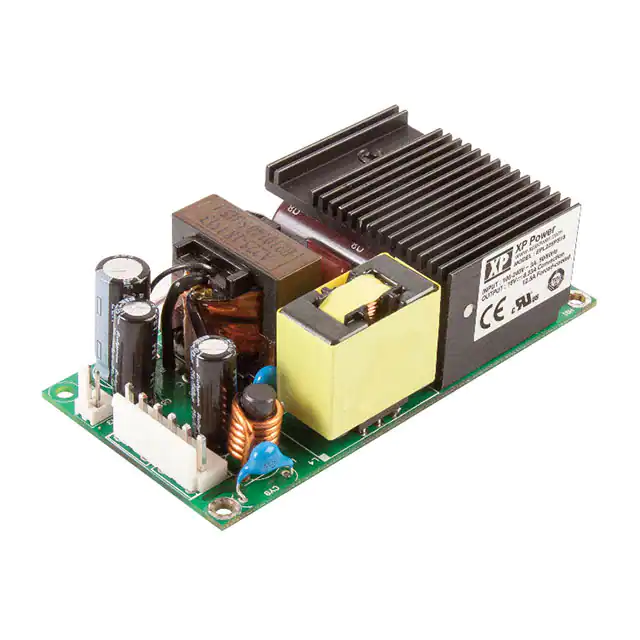

EPL225PS36AC/DC CONVERTER 36V 150W |
323 | - |
|
数据表 |
EPL225 (225W) | Box | Active | Open Frame | 1 | 36V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 4.16 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.3mm) | ||
|
NMP1K2-C##CCH-00AC/DC CONVERTER 3X5V 24V 780W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 5V | 780W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 36 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C##CCK-00AC/DC CONVERTER 3X5V 48V 780W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 5V | 780W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 36 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|

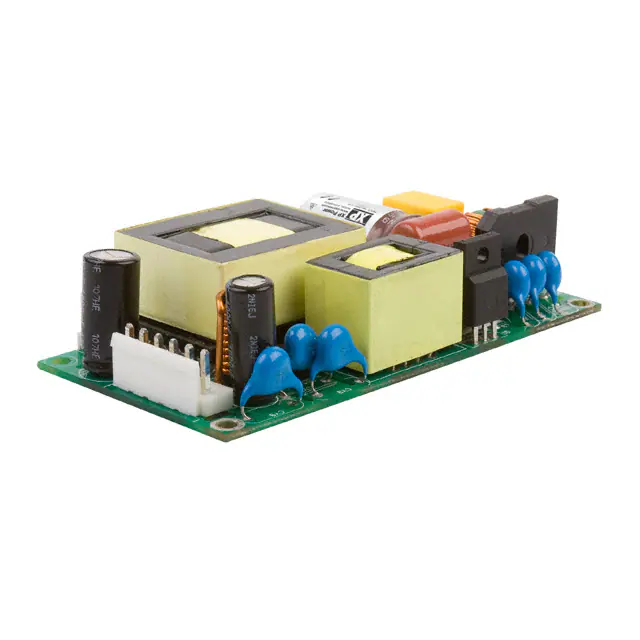

ECP180PS24AC/DC CONVERTER 24V 120W |
190 | - |
|
数据表 |
ECP180 (180W) | Box | Active | Open Frame | 1 | 24V | - | - | 120W (180W Forced Air) | - | - | 85 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.84" H (101.6mm x 50.8mm x 21.6mm) | ||
|
PQC250-24AC/DC CONVERTER 24V 250W |
155 | - |
|
数据表 |
PQC250 (250W) | Box | Active | Open Frame | 1 | 24V | - | - | 250W | - | - | 90 ~ 264 VAC | - | 10.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -10°C ~ 70°C (With Derating) | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) | ||
|
NMP1K2-C##CEC-00AC/DC CONVERTER 2X5V 12V 5V 780W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 12V | 780W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 20 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C##CEE-00AC/DC CONVERTER 2X5V 2X12V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 12V | 840W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 20 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NEVO+600SL-0332-DK000AC/DC CONVERTER 2X24V 12V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 24V | 24V | 12V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 7.5 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-C##CEH-00AC/DC CNVRTR 2X5V 12V 24V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 12V | 840W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 20 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NEVO+600SL-1305-DK000AC/DC CNVRTR 5V 24V 2X12V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 5V | 24V | 12V | 425W | 12V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 7.5 A | ITE (Commercial) | - | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-C##CEK-00AC/DC CNVRTR 2X5V 12V 48V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 12V | 840W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 20 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NEVO+600SL-3505-DK000AC/DC CONVERTER 24V 4X12V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 5 | 24V | 12V | 12V | 450W | 12V | 12V | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 5 A | ITE (Commercial) | 5 A | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-C##CHC-00AC/DC CONVERTER 2X5V 24V 5V 780W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 24V | 780W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 10 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NEVO+600SL-1310-DK000AC/DC CONVERTER 5V 24V 5V 400W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 5V | 24V | 5V | 400W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 7.5 A | ITE (Commercial) | - | 25 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-0112-DK000AC/DC CONVERTER 2X5V 12V 400W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 5V | 5V | 12V | 400W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 25 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-C##CHE-00AC/DC CNVRTR 2X5V 24V 12V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 24V | 840W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 10 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NEVO+600SL-1031-DK000AC/DC CONVERTER 5V 24V 5V 400W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 5V | 24V | 5V | 400W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 7.5 A | ITE (Commercial) | - | 25 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-C##CHH-00AC/DC CONVERTER 2X5V 2X24V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 24V | 840W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 10 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-C##CHK-00AC/DC CNVRTR 2X5V 24V 48V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 24V | 840W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 10 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
