交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

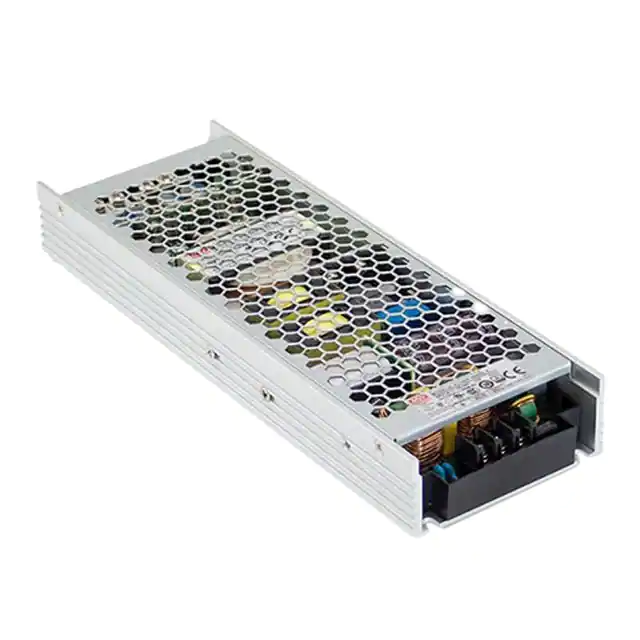

UHP-500R-24AC/DC CONVERTER 24V 502W |
814 | - |
|
数据表 |
UHP-500 (500W) | Box | Active | Enclosed | 1 | 24V | - | - | 502W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 20.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | ||
|
RACM40-15SK/OF-CTNAC/DC CONVERTER 15V 40W |
0 | - |
|
数据表 |
POWERLINE RACM40-K/OF (40W) | Box | Active | Open Frame | 1 | 15V | - | - | 40W | - | - | 80 ~ 264 VAC, 120 ~ 370 VDC | - | 2.667 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 3.08" L x 1.60" W x 1.00" H (78.3mm x 40.6mm x 25.5mm) | ||
|

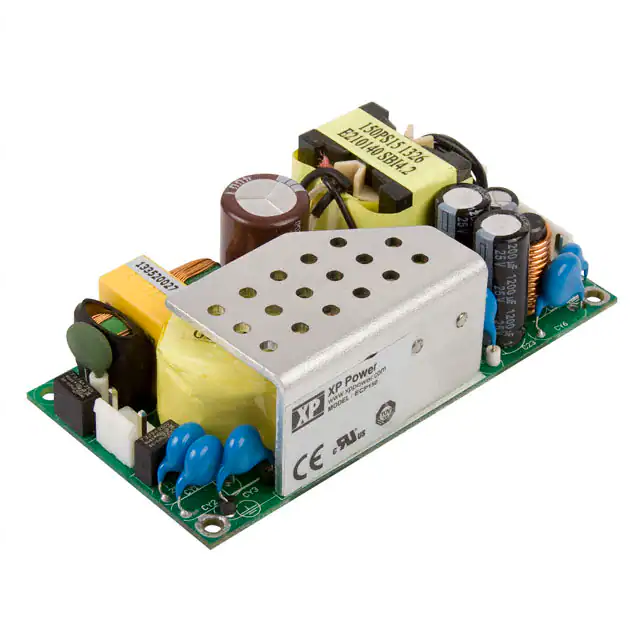

ECP150PS24AC/DC CONVERTER 24V 100W |
292 | - |
|
数据表 |
ECP (150W) | Box | Active | Open Frame | 1 | 24V | - | - | 100W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 4.17 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | ||
|
RACM40-48SK/OF-CTNAC/DC CONVERTER 48V 40W |
0 | - |
|
数据表 |
POWERLINE RACM40-K/OF (40W) | Box | Active | Open Frame | 1 | 48V | - | - | 40W | - | - | 80 ~ 264 VAC, 120 ~ 370 VDC | - | 833 mA | - | - | Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 3.08" L x 1.60" W x 1.00" H (78.3mm x 40.6mm x 25.5mm) | ||
|
ECP150PS15AC/DC CONVERTER 15V 100W |
205 | - |
|
数据表 |
ECP (150W) | Box | Active | Open Frame | 1 | 15V | - | - | 100W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.67 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | ||
|
ECP150PS48AC/DC CONVERTER 48V 100W |
128 | - |
|
数据表 |
ECP (150W) | Box | Active | Open Frame | 1 | 48V | - | - | 100W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 2.08 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | ||
|
ECP150PS12AC/DC CONVERTER 12V 100W |
46 | - |
|
数据表 |
ECP (150W) | Box | Active | Open Frame | 1 | 12V | - | - | 100W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 8.33 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | ||
|

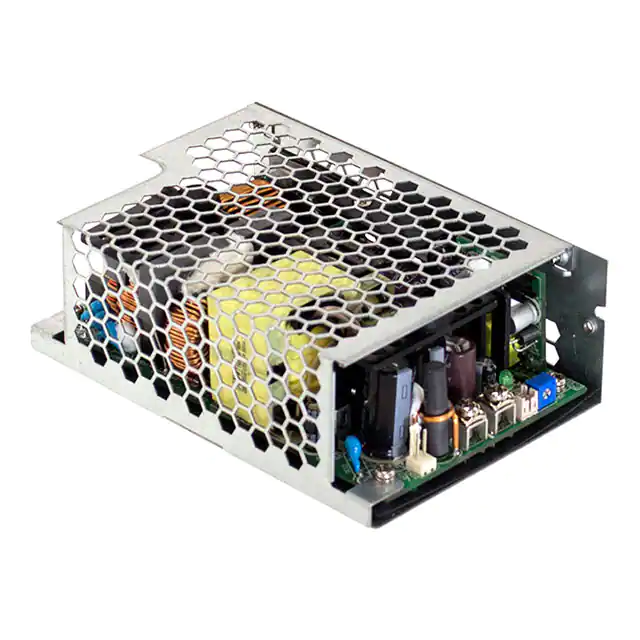

RPS-500-24-CAC/DC CONVERTER 24V 310W |
43 | - |
|
数据表 |
RPS-500 (500W) | Box | Active | Enclosed | 1 | 24V | - | - | 310W (500W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 12.9 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
FSP400-70AGGBM(M)AC/DC CNVT 3.3V 5V 2X12V -12V |
163 | - |
|
数据表 |
FSP400-70AGGBM(M) (400W) | Box | Active | ATX | 5 | 3.3V | 5V | 12V | 563W | 12V | -12V | 90 ~ 264 VAC | - | 21 A | - | 16 A | ITE (Commercial) | 500 mA | 17 A | 17 A | - | 0°C ~ 50°C | Standby Output, Universal Input | Chassis Mount | 5.51" L x 5.91" W x 3.39" H (140.0mm x 150.1mm x 86.1mm) | ||
|
ECE60US12-SAC/DC CONVERTER 12V 60W |
99 | - |
|
数据表 |
ECE60 (60W) | Box | Active | Enclosed | 1 | 12V | - | - | 60W | - | - | 85 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) | ||
|
ECE60US15-SAC/DC CONVERTER 15V 60W |
82 | - |
|
数据表 |
ECE60 (60W) | Box | Active | Enclosed | 1 | 15V | - | - | 60W | - | - | 85 ~ 264 VAC | - | 4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) | ||
|
LPQ202-MAC/DC CNVRT 5V 12V 24V -12V 100W |
134 | - |
|
数据表 |
LPQ200-M (200W) | Tray | Active | Open Frame | 4 | 5V | 12V | 24V | 100W (200W Forced Air) | -12V | - | 90 ~ 264 VAC | - | 13 A | - | 5 A | ITE (Commercial), Medical | - | 1.5 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | ||
|
NMP1K2-#KKE#K-00AC/DC CNVRTR 2X48V 12V 48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 12V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
TPP 65-251AC/DC CONVERTER 24V 5V 65W |
51 | - |
|
数据表 |
TPP 65 (65W) | Box | Active | Enclosed | 2 | 24V | 5V | - | 65W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.71 A | - | 8 A | Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 4.03" L x 2.38" W x 1.36" H (102.4mm x 60.5mm x 34.5mm) | ||
|
|
HB24-1.2-AGAC/DC CONVERTER 24V 29W |
288 | - |
|
数据表 |
Linear B | Bulk | Active | Linear | 1 | 24V | - | - | 29W | - | - | 100, 120, 220, 230, 240 VAC | - | 1.2 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 4.87" L x 4.00" W x 2.10" H (123.7mm x 101.6mm x 53.3mm) | ||
|
NMP1K2-#KKEC#-00AC/DC CNVRTR 2X48V 12V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 12V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
HEP-240-24AAC/DC CONVERTER 24V 240W |
390 | - |
|
数据表 |
HEP-240 (240W) | Box | Active | Enclosed | 1 | 24V | - | - | 240W | - | - | 90 ~ 305 VAC, 127 ~ 431 VDC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3.75 kV | -55°C ~ 70°C (With Derating) | Adjustable Output, IP65, PFC, Universal Input | Chassis Mount | 9.61" L x 2.68" W x 1.53" H (244.2mm x 68.0mm x 38.8mm) | ||
|
HEP-240-48AAC/DC CONVERTER 48V 240W |
43 | - |
|
数据表 |
HEP-240 (240W) | Box | Active | Enclosed | 1 | 48V | - | - | 240W | - | - | 90 ~ 305 VAC, 127 ~ 431 VDC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 3.75 kV | -55°C ~ 70°C (With Derating) | Adjustable Output, IP65, PFC, Universal Input | Chassis Mount | 9.61" L x 2.68" W x 1.53" H (244.2mm x 68.0mm x 38.8mm) | ||
|

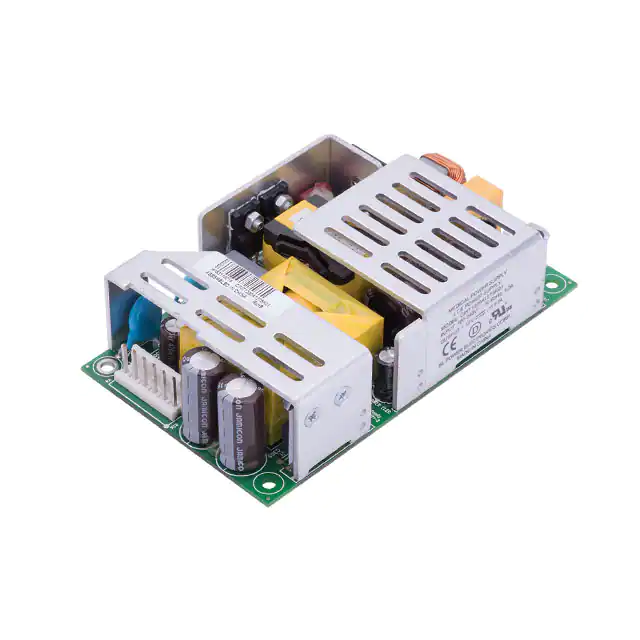

CINT1200A2475K01AC/DC CONVERTER 24V 180W |
1,954 | - |
|
数据表 |
CINT1200 (200W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 180W (200W Forced Air) | - | - | 90 ~ 264 VAC | - | 7.5 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -10°C ~ 70°C | DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 31.8mm) | ||
|
GCS180PS28AC/DC CONVERTER 28V 150W |
171 | - |
|
数据表 |
GCS (180W) | Box | Active | Open Frame | 1 | 28V | - | - | 150W (180W Forced Air) | - | - | 85 ~ 264 VAC | - | 5.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
