交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCP225PS48AC/DC CONVERTER 48V 150W XP Power |
6 | - |
|
数据表 |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 48V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 3.1 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) |
|

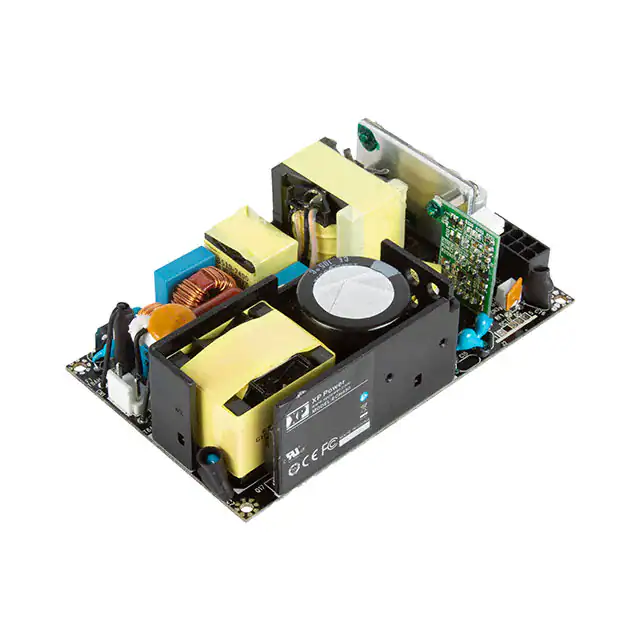

ECH450PS15AC/DC CONVERTER 15V 249W XP Power |
25 | - |
|
数据表 |
ECH450 (450W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 249W (450W Forced Air) | - | - | 90 ~ 264 VAC | - | 16.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) |
|
|
ECH450PS54AC/DC CONVERTER 54V 250W XP Power |
8 | - |
|
数据表 |
ECH450 (450W) | Bulk | Active | Open Frame | 1 | 54V | - | - | 250W (448W Forced Air) | - | - | 90 ~ 264 VAC | - | 4.63 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) |
|
|
ECH450PS36AC/DC CONVERTER 36V 248W XP Power |
3 | - |
|
数据表 |
ECH450 (450W) | Bulk | Active | Open Frame | 1 | 36V | - | - | 248W (450W Forced Air) | - | - | 90 ~ 264 VAC | - | 6.9 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) |
|

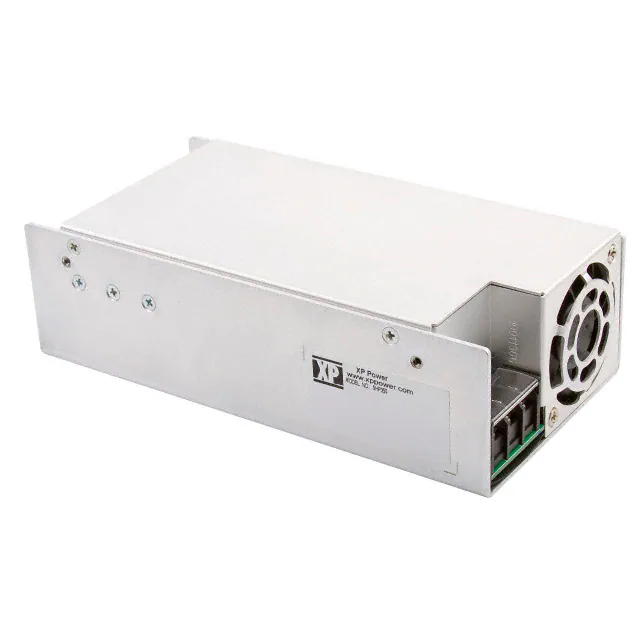

SHP350PS15AC/DC CONVERTER 15V 350W XP Power |
9 | - |
|
数据表 |
SHP (350W) | Box | Active | Enclosed | 1 | 15V | - | - | 350W | - | - | 85 ~ 264 VAC | - | 22 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.60" W x 2.10" H (177.8mm x 91.4mm x 53.3mm) |
|

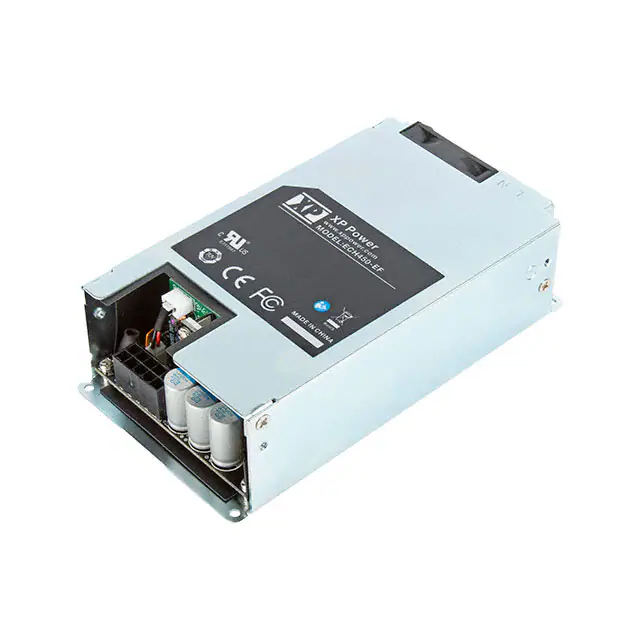

ECH450PS12-EFAC/DC CONVERTER 12V 250W XP Power |
13 | - |
|
数据表 |
ECH450 (450W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 250W (450W Forced Air) | - | - | 90 ~ 264 VAC | - | 20.8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
|
|
ECH450PS54-EFAC/DC CONVERTER 54V 250W XP Power |
7 | - |
|
数据表 |
ECH450 (450W) | Bulk | Active | Enclosed | 1 | 54V | - | - | 250W (448W Forced Air) | - | - | 90 ~ 264 VAC | - | 4.63 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
|
|
ECH450PS36-EFAC/DC CONVERTER 36V 248W XP Power |
2 | - |
|
数据表 |
ECH450 (450W) | Bulk | Active | Enclosed | 1 | 36V | - | - | 248W (450W Forced Air) | - | - | 90 ~ 264 VAC | - | 6.9 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
|
LCL500PS12AC/DC CONVERTER 12V 500W XP Power |
10 | - |
|
数据表 |
LCL (500W) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 500W | - | - | 85 ~ 264 VAC | - | 42 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 2.08" H (250.0mm x 127.0mm x 53.0mm) |
|
|
LCL500PS48AC/DC CONVERTER 48V 500W XP Power |
5 | - |
|
数据表 |
LCL (500W) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 500W | - | - | 85 ~ 264 VAC | - | 10.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 2.08" H (250.0mm x 127.0mm x 53.0mm) |
