交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

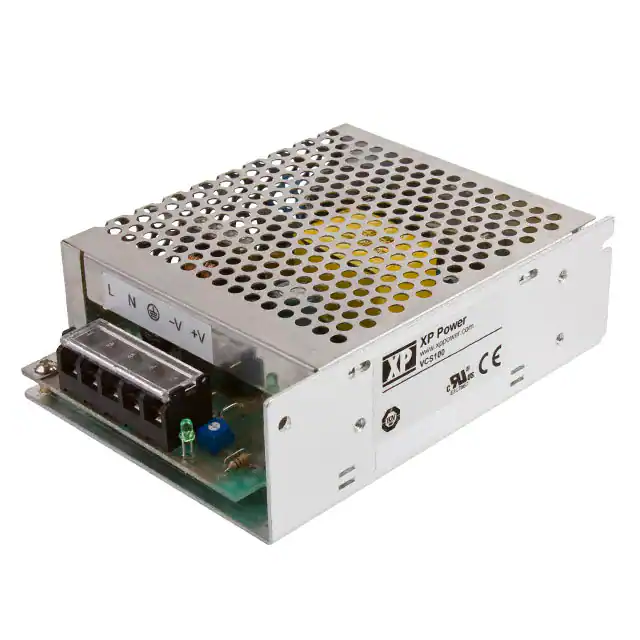

VCS100US05AC/DC CONVERTER 5V 70W XP Power |
20 | - |
|
数据表 |
VCS (100W) | Box | Active | Enclosed | 1 | 5V | - | - | 70W | - | - | 85 ~ 264 VAC | - | 14 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.87" W x 1.65" H (159.0mm x 98.2mm x 42.0mm) |
|
LCW150PS48AC/DC CONVERTER 48V 154W XP Power |
25 | - |
|
数据表 |
LCW150 (150W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 154W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.2 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
|
LCW150PS24AC/DC CONVERTER 24V 151W XP Power |
65 | - |
|
数据表 |
LCW150 (150W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 151W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6.3 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
|
LCW150PS12AC/DC CONVERTER 12V 150W XP Power |
27 | - |
|
数据表 |
LCW150 (150W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 150W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|

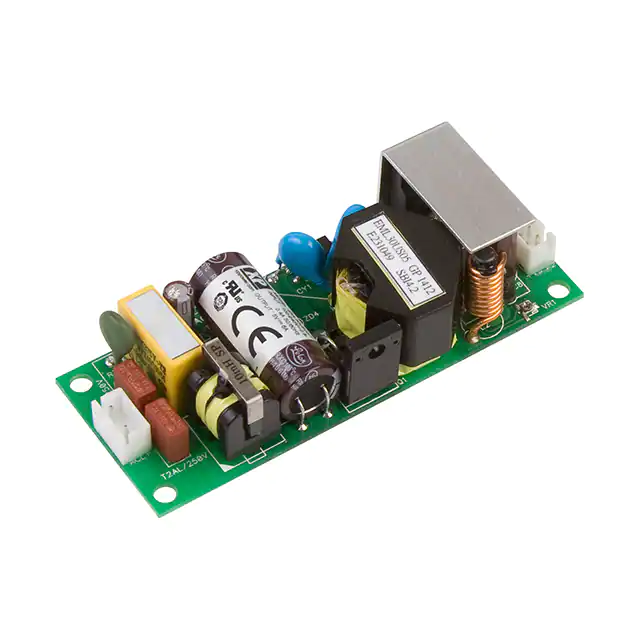

EML30US05-TAC/DC CONVERTER 5V 30W XP Power |
18 | - |
|
数据表 |
EML30 (30W) | Box | Active | Open Frame | 1 | 5V | - | - | 30W | - | - | 85 ~ 264 VAC | - | 6 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 1.00" H (87.9mm x 34.6mm x 25.4mm) |
|
EML15US48-SAC/DC CONVERTER 48V 15W XP Power |
9 | - |
|
数据表 |
EML15 (15W) | Box | Active | Open Frame | 1 | 48V | - | - | 15W | - | - | 85 ~ 264 VAC | - | 320 mA | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.95" L x 1.36" W x 1.04" H (75.0mm x 34.5mm x 26.4mm) |
|
|
EML15US15-SAC/DC CONVERTER 15V 15W XP Power |
4 | - |
|
数据表 |
EML15 (15W) | Box | Active | Open Frame | 1 | 15V | - | - | 15W | - | - | 85 ~ 264 VAC | - | 1 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.95" L x 1.36" W x 1.04" H (75.0mm x 34.5mm x 26.4mm) |
|
LCW320PS05AC/DC CONVERTER 5V 300W XP Power |
18 | - |
|
数据表 |
LCW320 (320W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 300W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 60 A | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
|
LCW320PS48AC/DC CONVERTER 48V 322W XP Power |
16 | - |
|
数据表 |
LCW320 (320W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 322W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6.7 A | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
|
LCW320PS24AC/DC CONVERTER 24V 322W XP Power |
7 | - |
|
数据表 |
LCW320 (320W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 322W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 13.4 A | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
