| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCW100US24AC/DC CONVERTER 24V 108W XP Power |
26 | - |
|
数据表 |
LCW100 (100W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 108W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.5 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
LCW100US48AC/DC CONVERTER 48V 110W XP Power |
15 | - |
|
数据表 |
LCW100 (100W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 110W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 2.3 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
LCW100US05AC/DC CONVERTER 5V 90W XP Power |
11 | - |
|
数据表 |
LCW100 (100W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 90W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 18 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
LCW100US12AC/DC CONVERTER 12V 102W XP Power |
11 | - |
|
数据表 |
LCW100 (100W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 102W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 8.5 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
LCW100US36AC/DC CONVERTER 36V 101W XP Power |
9 | - |
|
数据表 |
LCW100 (100W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 101W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 2.8 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|

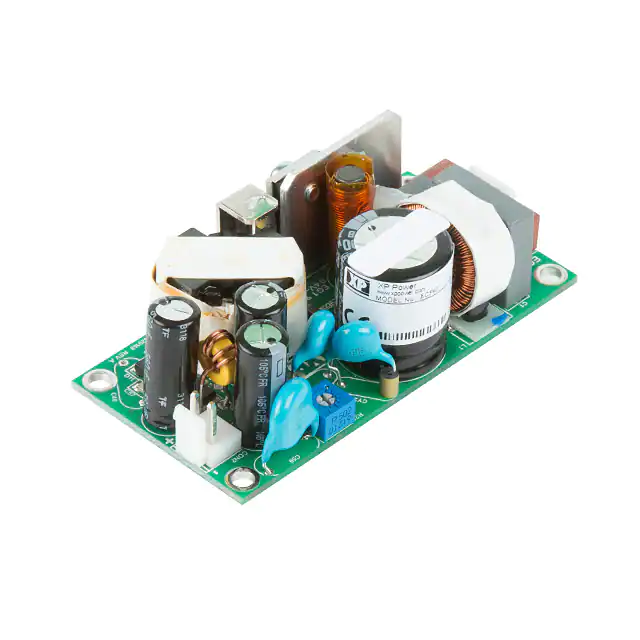

ECF40US48AC/DC CONVERTER 48V 40W XP Power |
10 | - |
|
数据表 |
ECF40 (40W) | Box | Active | Open Frame | 1 | 48V | - | - | 40W | - | - | 80 ~ 264 VAC | - | 830 mA | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 1.11" H (76.2mm x 38.1mm x 28.2mm) |
|
LCS150US12AC/DC CONVERTER 12V 150W XP Power |
82 | - |
|
数据表 |
LCS150 (150W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 150W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
LCS150US36AC/DC CONVERTER 36V 155W XP Power |
6 | - |
|
数据表 |
LCS150 (150W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 155W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.3 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|

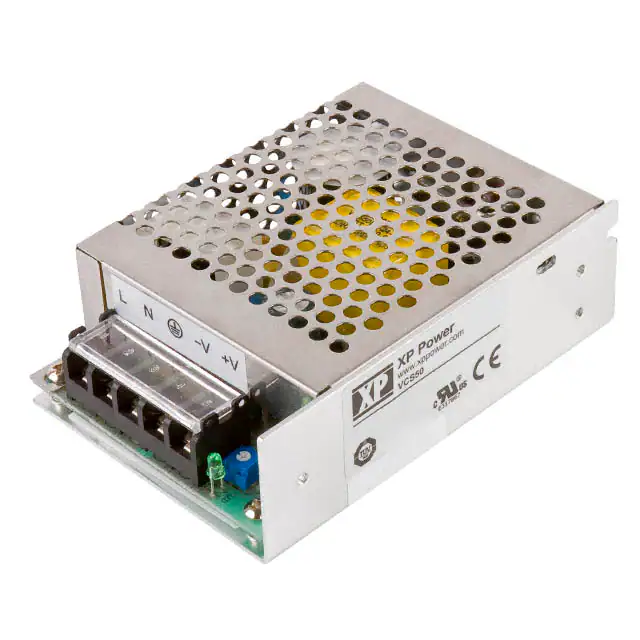

VCS50US48AC/DC CONVERTER 48V 50W XP Power |
8 | - |
|
数据表 |
VCS (50W) | Box | Active | Enclosed | 1 | 48V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 1.05 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.35" L x 3.07" W x 1.38" H (110.5mm x 78.0mm x 35.0mm) |
|

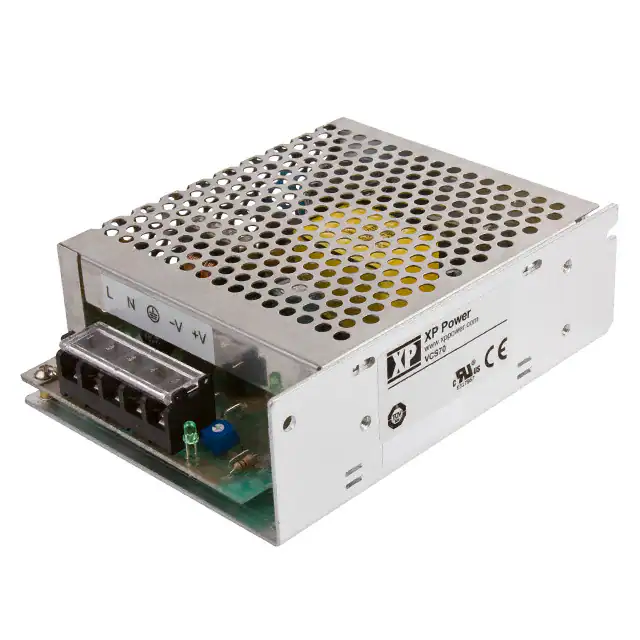

VCS70US12AC/DC CONVERTER 12V 70W XP Power |
97 | - |
|
数据表 |
VCS (70W) | Box | Active | Enclosed | 1 | 12V | - | - | 70W | - | - | 85 ~ 264 VAC | - | 5.83 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.12" L x 3.88" W x 1.61" H (130.0mm x 98.5mm x 41.0mm) |
