交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

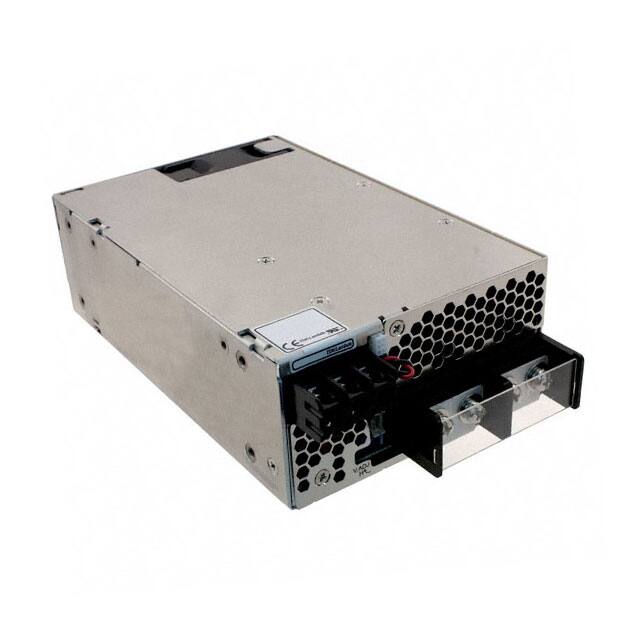

SWS600L-24/CO2AC/DC CONVERTER 24V 648W |
2 | - |
|
数据表 |
SWS600L (600W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 648W | - | - | 85 ~ 265 VAC | - | 27 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 7.48" L x 3.62" W x 4.72" H (190.0mm x 91.9mm x 119.9mm) | ||
|
RWS1000B-12/RFAC/DC CONVERTER 12V 1000W |
5 | - |
|
数据表 |
RWS1000B (1000W) | Box | Active | Enclosed | 1 | 12V | - | - | 1008W | - | - | 85 ~ 265 VAC, 120 ~ 340 VDC | - | 84 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.1mm x 127.0mm x 63.0mm) | ||
|
RWS1000B-24/RFAC/DC CONVERTER 24V 1000W |
3 | - |
|
数据表 |
RWS1000B (1000W) | Box | Active | Enclosed | 1 | 24V | - | - | 1008W | - | - | 85 ~ 265 VAC, 120 ~ 340 VDC | - | 42 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.1mm x 127.0mm x 63.0mm) | ||
|
TEC1300-12-074NACRPS AC-DC POWER SUPPLY POWER 1 |
20 | - |
|
数据表 |
TEC1300 (1300W) | Box | Active | Front End | 1 | 12V | - | - | 1272W | - | - | 90 ~ 140 VAC, 180 ~ 264 VAC, 180 ~ 300 VDC | - | 106 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -5°C ~ 50°C | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Rack Mount | 7.28" L x 2.89" W x 1.57" H (185.0mm x 73.5mm x 40.0mm) | ||
|
|
HWS300-24/RYAC/DC CONVERTER 24V 300W |
3 | - |
|
数据表 |
HWS (300W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 24V | - | - | 300W | - | - | 85 ~ 265 VAC | - | 14 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.50" L x 2.40" W x 3.23" H (165.1mm x 61.0mm x 82.0mm) | ||
|
MEPG500-1024-UPOWERSUPPLY |
7 | - |
|
数据表 |
MEPG500 (500W) | Box | Active | Open Frame | 1 | 24V | - | - | 300W (500W Forced Air) | - | - | 90 ~ 264 VAC | - | 20.83 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | ||
|
D1U86T-W-800-12-HB4CAC/DC CONVERTER 12V 1100W |
25 | - |
|
数据表 |
D1U86T-W-800-12-HxxC | Box | Active | Enclosed | 1 | 12V | - | - | 1100W | - | - | 90 ~ 264 VAC | - | 65 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 55°C | Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | - | ||
|
D1U54T-W-800-12-HB4CAC/DC CONVERTER 12V 798W |
25 | - |
|
数据表 |
D1U54T-800W-12-HBxC (800W) | Box | Active | Front End | 1 | 12V | - | - | 798W | - | - | 90 ~ 264 VAC | - | 66.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 50°C | Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Rack Mount | 9.00" L x 2.15" W x 1.57" H (228.6mm x 54.5mm x 40.0mm) | ||
|
RWS1000B-12/SAC/DC CONVERTER 12V 1000W |
3 | - |
|
数据表 |
RWS1000B (1000W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 1008W | - | - | 85 ~ 265 VAC, 120 ~ 340 VDC | - | 84 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.1mm x 127.0mm x 63.0mm) | ||
|
IPS-X62A850W-A80+ GOLD PS/2 SPS 850W |
2 | - |
|
数据表 |
- | Box | Active | ATX | 4 | 3.3V | 5V | 12V | 850W | -12V | - | 90 ~ 264 VAC | - | 20 A | - | 20 A | ITE (Commercial) | - | 70.5 A | 300 mA | 2.6 kV | 0°C ~ 50°C | Standby Output, Universal Input | Benchtop | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) | ||
|
MEPG500-1012-CKFPOWERSUPPLY |
7 | - |
|
数据表 |
MEPG500 (500W) | Box | Active | Enclosed | 1 | 12V | - | - | 240W (400W Forced Air) | - | - | 90 ~ 264 VAC | - | 33.33 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | ||
|
RWS1000B-24/RFOAC/DC CONVERTER 24V 1000W |
3 | - |
|
数据表 |
RWS1000B (1000W) | Box | Active | Enclosed | 1 | 24V | - | - | 1008W | - | - | 85 ~ 265 VAC, 120 ~ 340 VDC | - | 42 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.1mm x 127.0mm x 63.0mm) | ||
|
RWS1000B-12/FOAC/DC CONVERTER 12V 1000W |
2 | - |
|
数据表 |
RWS1000B (1000W) | Box | Active | Enclosed | 1 | 12V | - | - | 1008W | - | - | 85 ~ 265 VAC, 120 ~ 340 VDC | - | 84 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.1mm x 127.0mm x 63.0mm) | ||
|
PDF700S480-CMFDSwitching Power Supplies AC-DC |
2 | - |
|
数据表 |
PDF700S CMFC(D) (700W) | Box | Active | Enclosed | 1 | 48V | - | - | 600W | - | - | 90 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial) | - | - | - | - | -40°C ~ 95°C (With Derating) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | - | ||
|
PDF700S560-CMFDPower Supplies AC-DC Module |
2 | - |
|
数据表 |
PDF700S CMFC(D) (700W) | Box | Active | Enclosed | 1 | 56V | - | - | 622W | - | - | 90 ~ 264 VAC | - | 11.1 A | - | - | ITE (Commercial) | - | - | - | - | -40°C ~ 95°C (With Derating) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | - | ||
|
PDF700S240-CMFDPower Supplies AC-DC |
2 | - |
|
数据表 |
PDF700S CMFC(D) (700W) | Box | Active | Enclosed | 1 | 24V | - | - | 600W | - | - | 90 ~ 264 VAC | - | 25 A | - | - | ITE (Commercial) | - | - | - | - | -40°C ~ 95°C (With Derating) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | - | ||
|
|
LCM1500Q-T-1AC/DC CONVERTER 24V 1500W |
10 | - |
|
数据表 |
LCM1500 (1500W) | Bulk | Active | Front End | 1 | 24V | - | - | 1500W | - | - | 90 ~ 264 VAC | - | 67 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 10.00" L x 5.20" W x 2.43" H (254.0mm x 132.0mm x 61.7mm) | ||
|
PFC250-1015GAC/DC CONVERTER 15V 250W |
20 | - |
|
数据表 |
PFC250 (250W) | Bulk | Active | Enclosed | 1 | 15V | - | - | 250W | - | - | 85 ~ 264 VAC | - | 18.3 A | - | - | ITE (Commercial) | - | - | - | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.50" L x 4.75" W x 2.00" H (215.9mm x 120.7mm x 50.8mm) | ||
|
LCC1200-28U-4P2490-264VAC; IP65 RATED |
24 | - |
|
数据表 |
LCC1200 (1200W) | Bulk | Active | Enclosed | 1 | 28V | - | - | 1.2kW | - | - | 90 ~ 264 VAC, 127 ~ 374 VDC | - | 50 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 85°C | Adjustable Output, Baseplate, DC Input Capable, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.98" L x 4.53" W x 1.57" H (278.8mm x 115.0mm x 40.0mm) | ||
|
|
HWS300-48/PVAC/DC CONVERTER 48V 300W |
6 | - |
|
数据表 |
HWS (300W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 48V | - | - | 300W | - | - | 85 ~ 265 VAC | - | 7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.50" L x 2.40" W x 3.23" H (165.1mm x 61.0mm x 82.0mm) |
