| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010287SRP-100-4003 Integrated Power Designs |
18 | - |
|
数据表 |
SRP-100 (100W) | Box | Active | Chassis | 4 | 5V | -5V | 12V | 100W | -12V | - | 100 ~ 240 VAC | - | 12 A | - | 4 A | Industrial, ITE (Commercial), Medical | - | 2 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
|
1010285SRP-100-4001 Integrated Power Designs |
7 | - |
|
数据表 |
SRP-100 (100W) | Box | Active | Chassis | 4 | 5V | 24V | 12V | 100W | -12V | - | 100 ~ 240 VAC | - | 12 A | - | 3 A | Industrial, ITE (Commercial), Medical | - | 2 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
|

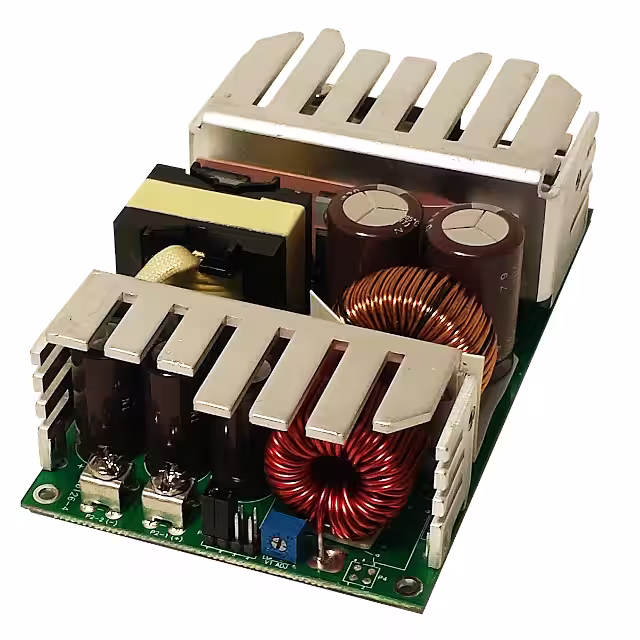

1010846NXT-225-1005 Integrated Power Designs |
8 | - |
|
数据表 |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 15V | - | - | 225W | - | - | 100 ~ 240 VAC | - | 15 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) |
|
1010849NXT-225-1008 Integrated Power Designs |
2 | - |
|
数据表 |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 48V | - | - | 225W | - | - | 100 ~ 240 VAC | - | 4.7 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) |
|
1010913NXT-175-1004,LS-RE Integrated Power Designs |
14 | - |
|
数据表 |
NXT-175 (175W) | Box | Active | Open Frame | 1 | 12V | - | - | 175W | - | - | 100 ~ 240 VAC | - | 14.6 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.7mm) |
|
1010917NXT-175-1008,LS-RE Integrated Power Designs |
2 | - |
|
数据表 |
NXT-175 (175W) | Box | Active | Open Frame | 1 | 48V | - | - | 175W | - | - | 100 ~ 240 VAC | - | 3.6 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.7mm) |
|
1010915NXT-175-1006,LS-RE Integrated Power Designs |
2 | - |
|
数据表 |
NXT-175 (175W) | Box | Active | Open Frame | 1 | 24V | - | - | 175W | - | - | 100 ~ 240 VAC | - | 7.3 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.7mm) |
|
1011435GRN-200-4002 Integrated Power Designs |
5 | - |
|
数据表 |
GRN-200 (200W) | Box | Active | Open Frame | 4 | 5V | 3.3V | 12V | 200W | -12V | - | 85 ~ 264 VAC | - | 30 A | - | 8 A | ITE (Commercial), Medical | - | 2 A | 2 A | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
1010272SRW-100-4004 Integrated Power Designs |
20 | - |
|
数据表 |
SRW-100 (100W) | Box | Active | Chassis | 4 | 5V | -5.2V | 12V | 100W | -12V | - | 100 ~ 240 VAC | - | 10 A | - | 4 A | Industrial, ITE (Commercial), Medical | - | 2 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
|
1010269SRW-100-4001 Integrated Power Designs |
19 | - |
|
数据表 |
SRW-100 (100W) | Box | Active | Chassis | 4 | 3.3V | 5V | 12V | 100W | -12V | - | 100 ~ 240 VAC | - | 10 A | - | 4 A | Industrial, ITE (Commercial), Medical | - | 2 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
