| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

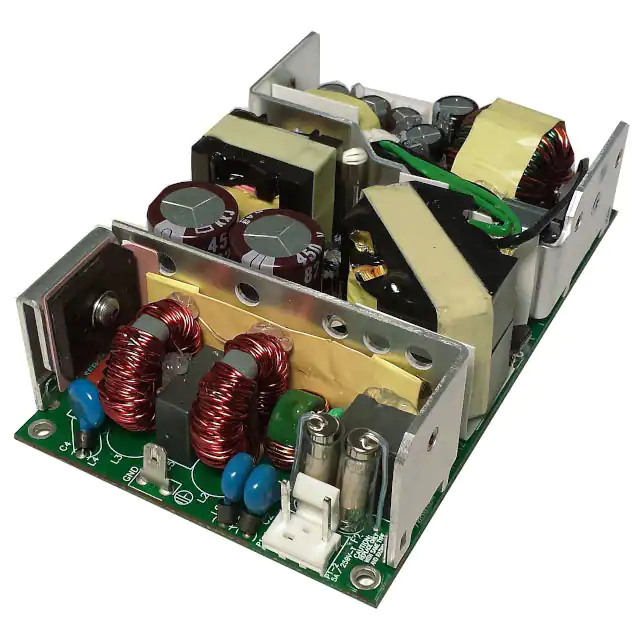

1011441GRN-200-2002 Integrated Power Designs |
4 | - |
|
数据表 |
GRN-200 (200W) | Box | Active | Open Frame | 2 | 5V | 12V | - | 200W | - | - | 85 ~ 264 VAC | - | 30 A | - | 6 A | ITE (Commercial), Medical | - | - | - | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
1011443GRN-200-2004 Integrated Power Designs |
2 | - |
|
数据表 |
GRN-200 (200W) | Box | Active | Open Frame | 2 | 15V | -15V | - | 200W | - | - | 85 ~ 264 VAC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | - | - | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
1010503REL-150-4003 Integrated Power Designs |
14 | - |
|
数据表 |
REL-150 (150W) | Box | Active | Open Frame | 4 | 5V | 3.3V | 15V | 150W | -15V | - | 85 ~ 264 VAC | - | 15 A | - | 8 A | Industrial, ITE (Commercial), Laboratory, Medical | - | 2 A | 2 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) |
|
1010501REL-150-4001 Integrated Power Designs |
12 | - |
|
数据表 |
REL-150 (150W) | Box | Active | Open Frame | 4 | 3.3V | 5V | 12V | 150W | -12V | - | 85 ~ 264 VAC | - | 15 A | - | 8 A | Industrial, ITE (Commercial), Laboratory, Medical | - | 2 A | 2 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) |
|
1010507REL-150-4007 Integrated Power Designs |
6 | - |
|
数据表 |
REL-150 (150W) | Box | Active | Open Frame | 4 | 5V | 24V | 15V | 150W | -15V | - | 85 ~ 264 VAC | - | 15 A | - | 3 A | Industrial, ITE (Commercial), Laboratory, Medical | - | 2 A | 2 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) |
|
1010505REL-150-4005 Integrated Power Designs |
4 | - |
|
数据表 |
REL-150 (150W) | Box | Active | Open Frame | 4 | 5V | -5V | 15V | 150W | -15V | - | 85 ~ 264 VAC | - | 15 A | - | 8 A | Industrial, ITE (Commercial), Laboratory, Medical | - | 2 A | 2 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) |
|
1011275REL-150-4013 Integrated Power Designs |
3 | - |
|
数据表 |
REL-150 (150W) | Box | Active | Open Frame | 4 | 7.25V | 30V | 24V | 150W | -24V | - | 85 ~ 264 VAC | - | 8.7 A | - | 500 mA | Industrial, ITE (Commercial), Laboratory, Medical | - | 1.5 A | 1.5 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) |
|

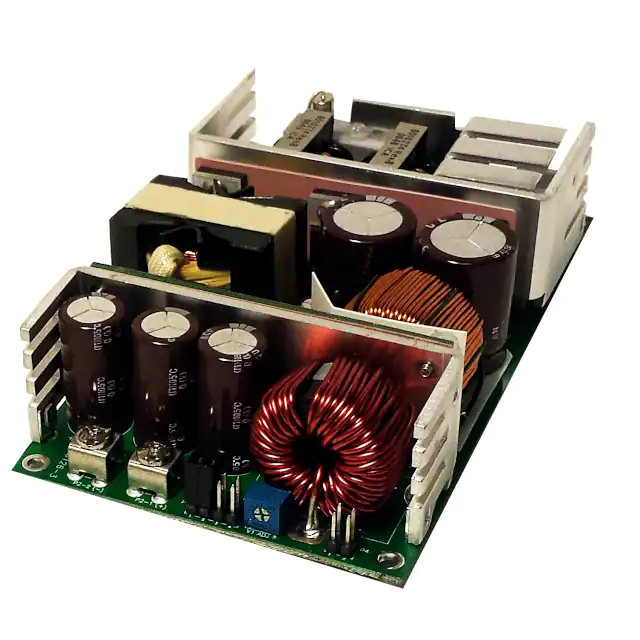

1010897NXT-175-1004,RE STBY Integrated Power Designs |
4 | - |
|
数据表 |
NXT-175 (175W) | Box | Active | Open Frame | 1 | 12V | - | - | 175W | - | - | 100 ~ 240 VAC | - | 14.6 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.7mm) |
|
1010437SRP-100-4005 Integrated Power Designs |
20 | - |
|
数据表 |
SRP-100 (100W) | Box | Active | Chassis | 4 | 5V | 12V | 8V | 100W | -8V | - | 100 ~ 240 VAC | - | 12 A | - | 3 A | Industrial, ITE (Commercial), Medical | - | 2 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
|
1010288SRP-100-4004 Integrated Power Designs |
19 | - |
|
数据表 |
SRP-100 (100W) | Box | Active | Chassis | 4 | 5V | -5V | 15V | 100W | -15V | - | 100 ~ 240 VAC | - | 12 A | - | 4 A | Industrial, ITE (Commercial), Medical | - | 2 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
