| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010271SRW-100-4003 Integrated Power Designs |
16 | - |
|
数据表 |
SRW-100 (100W) | Box | Active | Chassis | 4 | 5V | 24V | 15V | 100W | -15V | - | 100 ~ 240 VAC | - | 10 A | - | 2 A | Industrial, ITE (Commercial), Medical | - | 2 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
|
1010606SRW-100-4011 Integrated Power Designs |
15 | - |
|
数据表 |
SRW-100 (100W) | Box | Active | Chassis | 4 | 5V | -15V | 15V | 100W | 12V | - | 100 ~ 240 VAC | - | 10 A | - | 2.2 A | Industrial, ITE (Commercial), Medical | - | 2 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
|
1010273SRW-100-4005 Integrated Power Designs |
8 | - |
|
数据表 |
SRW-100 (100W) | Box | Active | Chassis | 4 | 5V | -5.2V | 15V | 100W | -15V | - | 100 ~ 240 VAC | - | 10 A | - | 4 A | Industrial, ITE (Commercial), Medical | - | 2 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
|
1010414SRW-100-4007 Integrated Power Designs |
8 | - |
|
数据表 |
SRW-100 (100W) | Box | Active | Chassis | 4 | 5V | 15V | 12V | 100W | -12V | - | 100 ~ 240 VAC | - | 10 A | - | 3 A | Industrial, ITE (Commercial), Medical | - | 2 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
|
1010411SRW-100-4006 Integrated Power Designs |
2 | - |
|
数据表 |
SRW-100 (100W) | Box | Active | Chassis | 4 | 5V | 3.4V | 9V | 100W | 24V | - | 100 ~ 240 VAC | - | 10 A | - | 4 A | Industrial, ITE (Commercial), Medical | - | 1 A | 500 mA | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) |
|

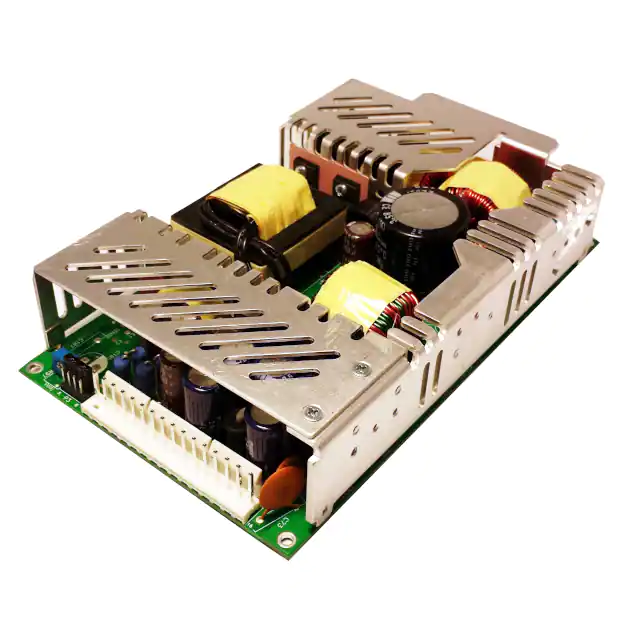

1010571REL-185-2003 Integrated Power Designs |
9 | - |
|
数据表 |
REL-185 (185W) | Box | Active | Open Frame | 2 | 5V | 24V | - | 185W | - | - | 85 ~ 264 VAC | - | 20 A | - | 4 A | Industrial, ITE (Commercial), Laboratory, Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) |
|
1010572REL-185-2004 Integrated Power Designs |
7 | - |
|
数据表 |
REL-185 (185W) | Box | Active | Open Frame | 2 | 12V | -12V | - | 185W | - | - | 85 ~ 264 VAC | - | 10 A | - | 6 A | Industrial, ITE (Commercial), Laboratory, Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) |
|
1010569REL-185-2001 Integrated Power Designs |
7 | - |
|
数据表 |
REL-185 (185W) | Box | Active | Open Frame | 2 | 3.3V | 5V | - | 185W | - | - | 85 ~ 264 VAC | - | 20 A | - | 10 A | Industrial, ITE (Commercial), Laboratory, Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) |
|
1010570REL-185-2002 Integrated Power Designs |
5 | - |
|
数据表 |
REL-185 (185W) | Box | Active | Open Frame | 2 | 5V | 12V | - | 185W | - | - | 85 ~ 264 VAC | - | 20 A | - | 8 A | Industrial, ITE (Commercial), Laboratory, Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) |
|

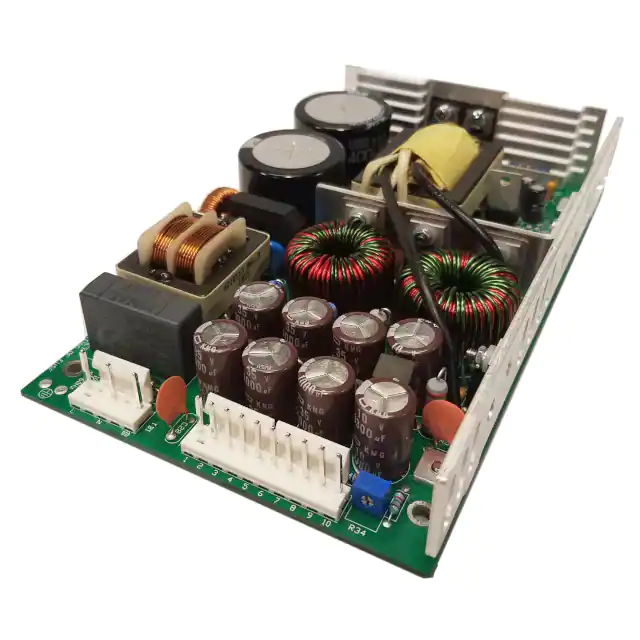

1010115SRW-115-2004 Integrated Power Designs |
25 | - |
|
数据表 |
SRW-115 (115W) | Box | Not For New Designs | Open Frame | 2 | 24V | - | - | 115W | - | - | 100 ~ 240 VAC | - | 2.5 A | - | 2.5 A | Industrial, ITE (Commercial) | - | - | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.45" H (177.8mm x 108.0mm x 36.8mm) |
