| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010472REL-110-4002 Integrated Power Designs |
7 | - |
|
数据表 |
REL-110 (110W) | Box | Active | Open Frame | 4 | 5V | 3.3V | 12V | 110W | -12V | - | 85 ~ 264 VAC | - | 10 A | - | 6 A | Industrial, ITE (Commercial), Laboratory, Medical | - | 2 A | 2 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
|
1010745REL-110-4009 Integrated Power Designs |
4 | - |
|
数据表 |
REL-110 (110W) | Box | Active | Open Frame | 4 | 5V | 24V | 7V | 110W | -7V | - | 85 ~ 264 VAC | - | 10 A | - | 2 A | Industrial, ITE (Commercial), Laboratory, Medical | - | 2.5 A | 2.5 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
|

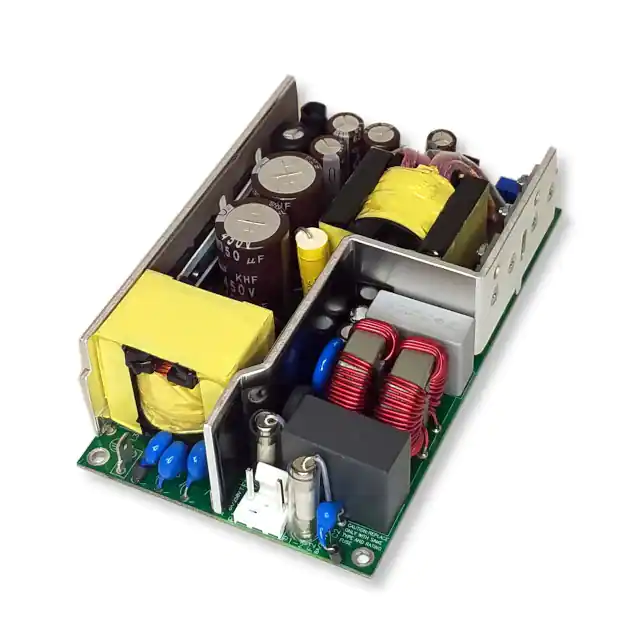

1011648GRN-360-1004 Integrated Power Designs |
8 | - |
|
数据表 |
GRN-360 (360W) | Box | Active | Open Frame | 1 | 24V | - | - | 360W | - | - | 85 ~ 264 VAC | - | 15 A | - | - | Industrial, ITE (Commercial), Laboratory, Medical | - | - | - | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.49" H (127.0mm x 76.1mm x 37.8mm) |
|
1010028SRW-65-3003 Integrated Power Designs |
6 | - |
|
数据表 |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 3 | 5V | - | 15V | 65W | -15V | - | 100 ~ 240 VAC | - | 7 A | - | 2 A | Industrial, ITE (Commercial) | - | 2 A | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) |
|
1010026SRW-65-3001 Integrated Power Designs |
3 | - |
|
数据表 |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 3 | 5V | - | 12V | 65W | -12V | - | 100 ~ 240 VAC | - | 5 A | - | 3 A | Industrial, ITE (Commercial) | - | 1 A | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) |
|
1010454SRW-65-3006 Integrated Power Designs |
2 | - |
|
数据表 |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 3 | 5.25V | 15V | 34V | 65W | - | - | 100 ~ 240 VAC | - | 6 A | - | 1 A | Industrial, ITE (Commercial) | - | 1.5 A | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) |
|
1010027SRW-65-3002 Integrated Power Designs |
2 | - |
|
数据表 |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 3 | 5V | - | 12V | 65W | -12V | - | 100 ~ 240 VAC | - | 7 A | - | 2 A | Industrial, ITE (Commercial) | - | 2 A | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) |
|
1010022SRW-65-4003 Integrated Power Designs |
14 | - |
|
数据表 |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 4 | 5V | 24V | 12V | 65W | -12V | - | 100 ~ 240 VAC | - | 5 A | - | 1 A | Industrial, ITE (Commercial) | - | 2 A | 2 A | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) |
|
1010023SRW-65-4004 Integrated Power Designs |
9 | - |
|
数据表 |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 4 | 5V | -5V | 15V | 65W | -15V | - | 100 ~ 240 VAC | - | 5 A | - | 3 A | Industrial, ITE (Commercial) | - | 2 A | 2 A | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) |
|
1010021SRW-65-4002 Integrated Power Designs |
8 | - |
|
数据表 |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 4 | 5V | 12V | 12V | 65W | -12V | - | 100 ~ 240 VAC | - | 5 A | - | 1 A | Industrial, ITE (Commercial) | - | 2 A | 2 A | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) |
