散热器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 附件方式 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

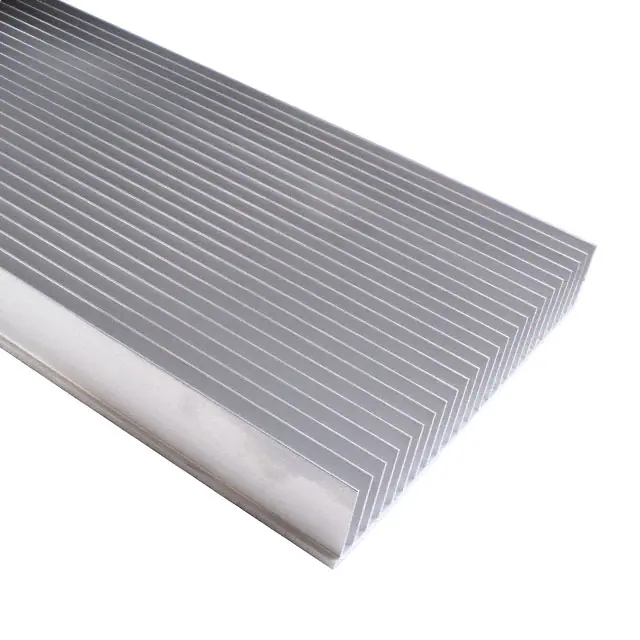

725452F0000062545 EXTRUSION 2.75X14.75"X4' Boyd Laconia, LLC |
21 | - |
|
数据表 |
- | Box | Active | Top Mount, Extrusion | - | Rectangular, Fins | 48.000" (1219.20mm) | 14.750" (374.65mm) | - | 2.750" (69.85mm) | Adhesive | - | - | - | Aluminum | - |
|
EA-190-H145-T710STD,EA-190-H145-T710, CLIP ATTAC Boyd Laconia, LLC |
0 | - |
|
数据表 |
EA-190 | Bulk | Active | Top Mount | BGA, FPGA | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.571" (14.50mm) | Clip | - | 19.70°C/W @ 200 LFM | 50.80°C/W | Aluminum | Black Anodized |
|

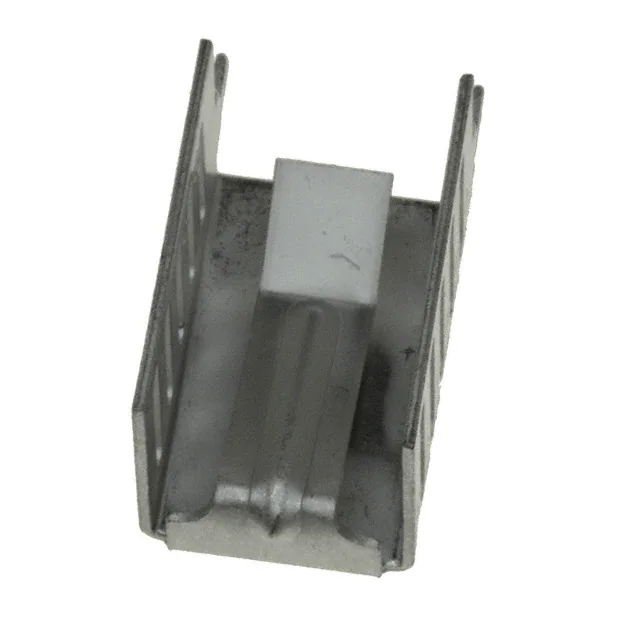

7136DGBOARD LEVEL HEATSINK .515"TO-220 Boyd Laconia, LLC |
0 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 0.848" (21.55mm) | 0.520" (13.21mm) | - | 0.515" (13.08mm) | Clip and PC Pin | 1.0W @ 30°C | 6.00°C/W @ 500 LFM | 19.70°C/W | Copper | Tin |
|

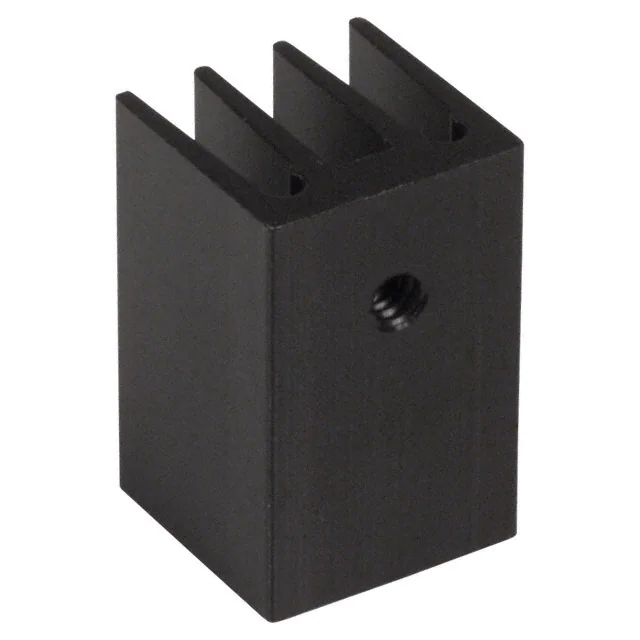

581002B00000HEATSINK TO-220 4.3W H=1.0 BLK Boyd Laconia, LLC |
0 | - |
|
数据表 |
- | Box | Active | Board Level | TO-220 | Rectangular, Fins | 1.000" (25.40mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | Bolt On | 2.5W @ 50°C | 4.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
6396BGHEATSINK TO-218/TO-220 PIN Boyd Laconia, LLC |
0 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-218 | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | Bolt On and PC Pin | 4.0W @ 30°C | 1.50°C/W @ 600 LFM | 5.60°C/W | Aluminum | Black Anodized |
|
6399BGHEAT SINK Boyd Laconia, LLC |
15 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-218, TO-220, TO-247, Multiwatt | Rectangular, Fins | 2.000" (50.80mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | Bolt On and PC Pin | 8.0W @ 40°C | 1.00°C/W @ 700 LFM | 3.30°C/W | Aluminum | Black Anodized |
|

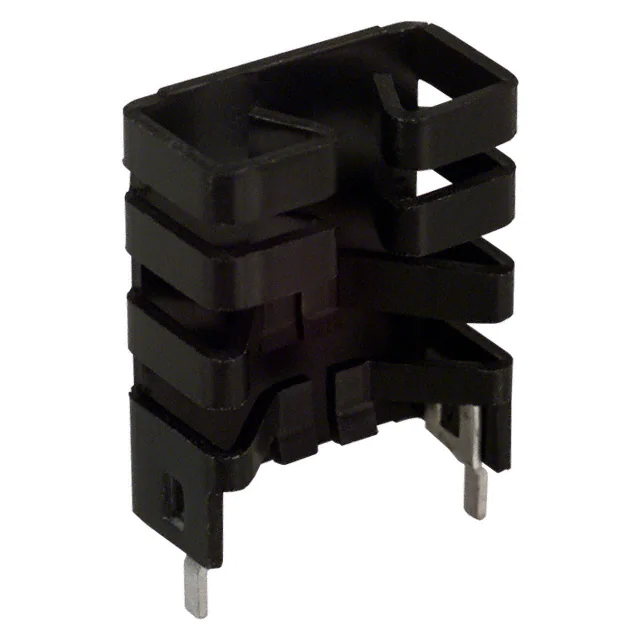

566010B03400GHEATSINK W/TAB BLACK Boyd Laconia, LLC |
0 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | Multiwatt, SIP | Rectangular, Fins | 1.220" (30.99mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | Clip and PC Pin | 2.0W @ 30°C | 4.00°C/W @ 300 LFM | 11.50°C/W | Aluminum | Black Anodized |
|
6400BGBOARD LEVEL HEAT SINK Boyd Laconia, LLC |
0 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-218, TO-220, TO-247, Multiwatt | Rectangular, Fins | 1.650" (41.91mm) | 1.000" (25.40mm) | - | 2.500" (63.50mm) | Bolt On and PC Pin | 4.0W @ 20°C | 1.50°C/W @ 400 LFM | 2.70°C/W | Aluminum | Black Anodized |
|

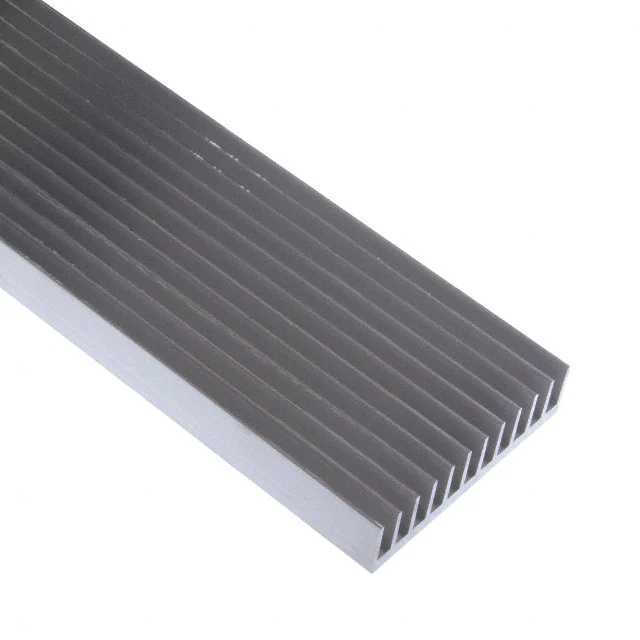

622002F00000G62200 EXTRUSION 0.85X3.5"X4' Boyd Laconia, LLC |
0 | - |
|
数据表 |
- | Box | Active | Top Mount, Extrusion | - | Rectangular, Pin Fins | 48.000" (1219.20mm) | 3.500" (88.90mm) | - | 0.850" (21.60mm) | Adhesive | - | 1.50°C/W @ 200 LFM | - | Aluminum | - |
|

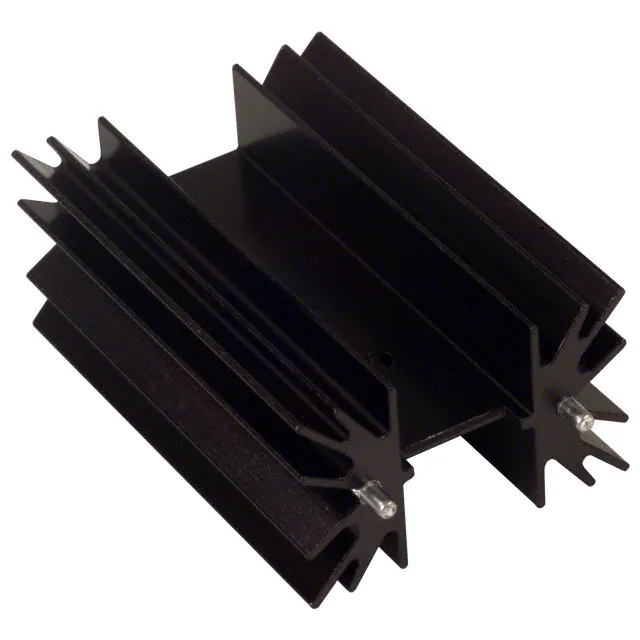

530002B02500GHEATSINK TO-220 POWER W/PINS BK Boyd Laconia, LLC |
0 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 2.500" (63.50mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | Bolt On and PC Pin | 20.0W @ 60°C | 2.00°C/W @ 300 LFM | 2.60°C/W | Aluminum | Black Anodized |
