LED COB、引擎、模块、灯条
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 波长 | 配置 | 光通量 @ 电流/温度 | 高度 | 电流 - 测试 | 测试温度 | 相关色温 (CCT)（K） | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 尺寸 / 尺寸 | 电流 - 最大值 | 发光表面 (LES) | 特性 | 显色指数 (CRI) | 视角 | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBT-40-G-C21-JF201LED MOD CBT-40 GREEN RECT Luminus Devices Inc. |
2,614 | - |
|
数据表 |
CBT-40 | Tray | Obsolete | LED Module | Green | 528nm (520nm ~ 535nm) | Rectangle | 650lm (Typ) | 6.30mm | 5.9A | 40°C | - | 4.5V | 24 lm/W | 26.50mm L x 16.00mm W | 12A | 1.87mm L x 2.09mm W | With Connector | - | - | Flat |
|
CBT-90-B-C11-KJ301LED MOD CBT-90 BLUE RECT Luminus Devices Inc. |
3,637 | - |
|
数据表 |
CBT-90 | Tray | Discontinued at Digi-Key | LED Module | Blue | 460nm | Rectangle | - | 4.08mm | 13.5A | - | - | 3.4V | - | 28.00mm L x 26.75mm W | 18A | 3.00mm L x 3.00mm W | With Connector | - | - | Flat |
|
CSM-360-W45S-D22-GU400LED MOD CSM-360 WHT SQ 4500K Luminus Devices Inc. |
1,343 | - |
|
数据表 |
CSM-360 | Tray | Obsolete | LED Module | White, Neutral | - | Square | 2750lm (2500lm ~ 3000lm) | 12.20mm | 3.15A | 25°C | 4500K | 14.15V | 62 lm/W | 51.00mm L x 36.00mm W | 6.3A | 16.00mm Dia | With Connector | 70 (Typ) | - | Domed |
|
|
CSM-360-W45S-D22-GV400LED MOD CSM-360 WHT SQ 4500K Luminus Devices Inc. |
2,807 | - |
|
数据表 |
CSM-360 | Tray | Obsolete | LED Module | White, Neutral | - | Square | 3300lm (3000lm ~ 3600lm) | 12.20mm | 3.15A | 25°C | 4500K | 14.15V | 74 lm/W | 51.00mm L x 36.00mm W | 6.3A | 16.00mm Dia | With Connector | 70 (Typ) | - | Domed |
|
CST-90-W65S-C12-GN100LED MOD CST-90 CL WH RECT 6500K Luminus Devices Inc. |
1,004 | - |
|
数据表 |
CST-90 | Tray | Obsolete | LED Module | White, Cool | - | Rectangle | 925lm (850lm ~ 1000lm) | 5.61mm | 3.15A | 40°C | 6500K | 3.25V | 90 lm/W | 28.00mm L x 42.00mm W | 13.5A | 3.00mm L x 3.00mm W | With Connector | 70 (Typ) | 95° | Domed |
|

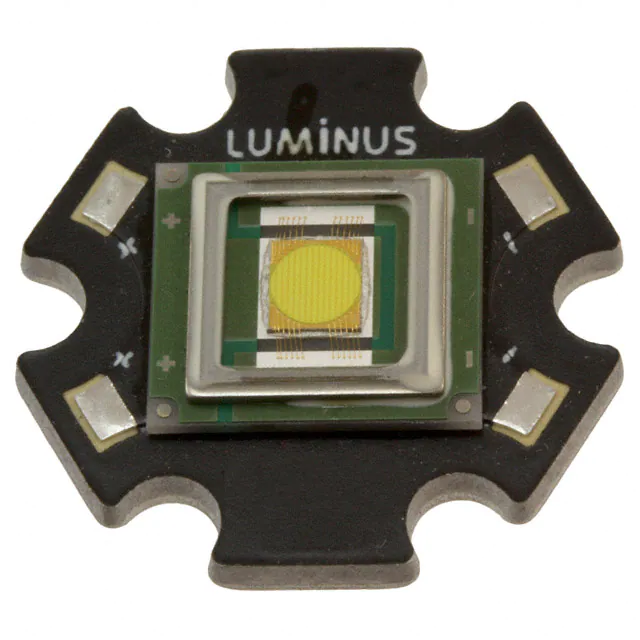

SBR-70-WCS-R75-NB121LED MOD SBR-70 WH STARBRD 8500K Luminus Devices Inc. |
2,194 | - |
|
数据表 |
SBR-70 | Tray | Obsolete | LED Module | White, Cool | - | Starboard | 1770lm (1710lm ~ 1830lm) | 3.44mm | 10.5A | 25°C | 6020K ~ 8500K | 3.7V | 46 lm/W | 19.90mm Dia | 10.5A | 10.00mm W x 11.00mm L | - | 75 (Typ) | - | Flat |
|

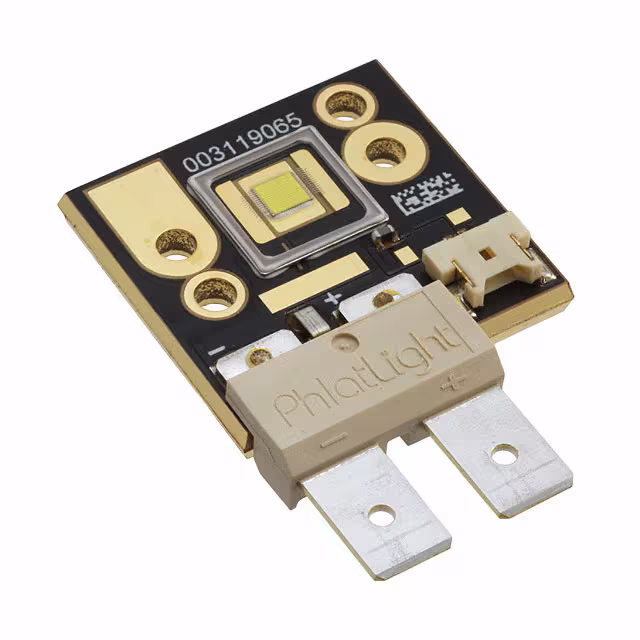

CBT-90-W57H-C11-LA200LED MOD CBT-90 CL WH RECT 5700K Luminus Devices Inc. |
2,187 | - |
|
数据表 |
CBT-90 | Tray | Obsolete | LED Module | White, Cool | - | Rectangle | - | 4.08mm | 9A | 70°C | 5700K | 3.3V | - | 28.00mm L x 26.75mm W | 18A | 3.00mm L x 3.00mm W | With Connector | 92 (Typ) | - | Flat |
|
SBR-90-W65S-R71-NA101LED MOD SBR-90 WH STARBRD 6500K Luminus Devices Inc. |
3,354 | - |
|
数据表 |
SBR-90 | Tray | Obsolete | LED Module | White, Cool | - | Starboard | 1650lm (1590lm ~ 1710lm) | 3.50mm | 9A | 40°C | 6500K | 3.5V | 52 lm/W | 19.90mm Dia | 9A | 3.00mm L x 3.00mm W | - | 70 (Typ) | - | Flat |
|
|
SBR-90-W65S-R71-NA100LED MOD SBR-90 WH STARBRD 6500K Luminus Devices Inc. |
1,210 | - |
|
数据表 |
SBR-90 | Tray | Obsolete | LED Module | White, Cool | - | Starboard | 1650lm (1590lm ~ 1710lm) | 3.50mm | 9A | 40°C | 6500K | 3.5V | 52 lm/W | 19.90mm Dia | 9A | 3.00mm L x 3.00mm W | - | 70 (Typ) | - | Flat |
|
|
SBR-90-W65S-R71-NA102LED MOD SBR-90 WH STARBRD 6500K Luminus Devices Inc. |
2,990 | - |
|
数据表 |
SBR-90 | Tray | Obsolete | LED Module | White, Cool | - | Starboard | 1650lm (1590lm ~ 1710lm) | 3.50mm | 9A | 40°C | 6500K | 3.5V | 52 lm/W | 19.90mm Dia | 9A | 3.00mm L x 3.00mm W | - | 70 (Typ) | - | Flat |
