LED COB、引擎、模块、灯条
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 波长 | 配置 | 光通量 @ 电流/温度 | 高度 | 电流 - 测试 | 测试温度 | 相关色温 (CCT)（K） | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 尺寸 / 尺寸 | 电流 - 最大值 | 发光表面 (LES) | 特性 | 显色指数 (CRI) | 视角 | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SST-90-W57S-F11-N2200LED COB SST-90 COOL WH SQ 5700K Luminus Devices Inc. |
2,836 | - |
|
数据表 |
SST-90 | Tray | Obsolete | Chip On Board (COB) | White, Cool | - | Square | 925lm (900lm ~ 950lm) | 5.40mm | 3.15A | 25°C | 5700K | 3.25V | 90 lm/W | 11.00mm L x 10.00mm W | 9A | 8.00mm Dia | - | 70 | 100° | Domed |
|
|
SST-90-W57S-F11-N3200LED COB SST-90 COOL WH SQ 5700K Luminus Devices Inc. |
4,649 | - |
|
数据表 |
SST-90 | Tray | Obsolete | Chip On Board (COB) | White, Cool | - | Square | 975lm (950lm ~ 1000lm) | 5.40mm | 3.15A | 25°C | 5700K | 3.25V | 95 lm/W | 11.00mm L x 10.00mm W | 9A | 8.00mm Dia | - | 70 | 100° | Domed |
|
SSR-90-W65S-R11-GN100LED MOD SSR-90 WH STARBRD 6500K Luminus Devices Inc. |
1,737 | - |
|
数据表 |
SSR-90 | Tray | Obsolete | LED Module | White, Cool | - | Starboard | - | 7.10mm | 3.15A | - | 6500K | 3.25V | - | 19.90mm L x 19.90mm W | 9A | 8.00mm Dia | - | 70 | 100° | Domed |
|
|
SSR-90-W65S-R11-N2100LED MOD SSR-90 WH STARBRD 6500K Luminus Devices Inc. |
1,738 | - |
|
数据表 |
SSR-90 | Tray | Obsolete | LED Module | White, Cool | - | Starboard | 925lm (900lm ~ 950lm) | 7.10mm | 3.15A | 25°C | 6500K | 3.25V | 90 lm/W | 19.90mm L x 19.90mm W | 9A | 8.00mm Dia | - | 70 | 100° | Domed |
|
CBT-120-B-C11-KM301LED MOD CBT-120 BLUE SQUARE Luminus Devices Inc. |
2,479 | - |
|
数据表 |
CBT-120 | Tray | Obsolete | LED Module | Blue | 463nm (455nm ~ 470nm) | Square | - | 5.61mm | 18A | - | - | 4.1V | - | 28.00mm L x 42.00mm W | 36A | 2.60mm L x 4.63mm W | With Connector | - | - | Flat |
|

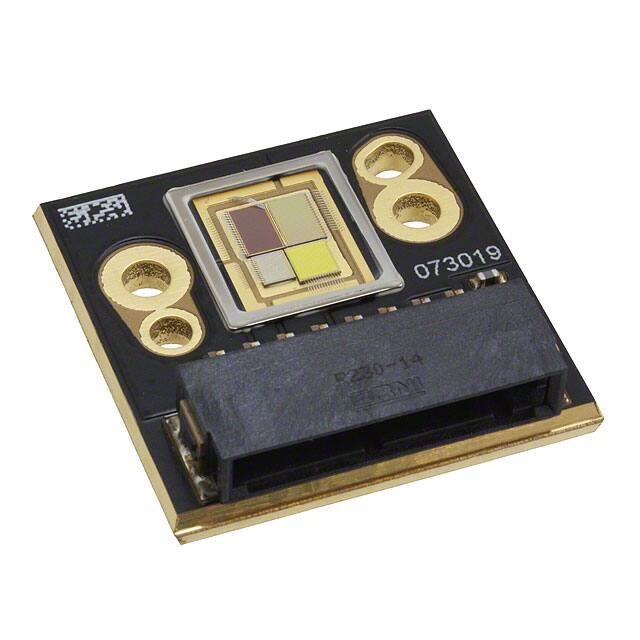

CBM-380-RGBW-D11-QF100LED MOD CBM-380 RGBW SQU 6500K Luminus Devices Inc. |
2,184 | - |
|
数据表 |
CBM-380 | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool | 624nm Red, 533nm Green, 464nm Blue | Square | - | - | 12A Red, 12A Green, 8.1A Blue, 9A White | - | 6500K | - | - | - | 12A Red, 12A Green, 8.1A Blue, 9A White | - | With Connector | - | - | Flat |
|
CBM-380-RGBW-D11-QG101LED MOD CBM-380 RGBW SQU 6500K Luminus Devices Inc. |
2,484 | - |
|
数据表 |
CBM-380 | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool | 624nm Red, 533nm Green, 464nm Blue | Square | - | - | 12A Red, 12A Green, 8.1A Blue, 9A White | - | 6500K | - | - | - | 12A Red, 12A Green, 8.1A Blue, 9A White | - | With Connector | - | - | Flat |
|
CST-90-W30M-C12-GK700LED MOD CST-90 WM WH RECT 3000K Luminus Devices Inc. |
4,869 | - |
|
数据表 |
CST-90 | Tray | Obsolete | LED Module | White, Warm | - | Rectangle | 550lm (500lm ~ 600lm) | 5.61mm | 3.15A | 40°C | 3000K | 3.25V | 54 lm/W | 28.00mm L x 42.00mm W | 13.5A | 3.00mm L x 3.00mm W | With Connector | 83 (Typ) | 95° | Domed |
|
CBT-120-G-C11-JM201LED MOD CBT-120 GREEN SQUARE Luminus Devices Inc. |
3,893 | - |
|
数据表 |
CBT-120 | Tray | Obsolete | LED Module | Green | 530nm (520nm ~ 540nm) | Square | - | 5.61mm | 18A | - | - | 4.3V | - | 28.00mm L x 42.00mm W | 36A | 2.60mm L x 4.63mm W | With Connector | - | - | Flat |
|

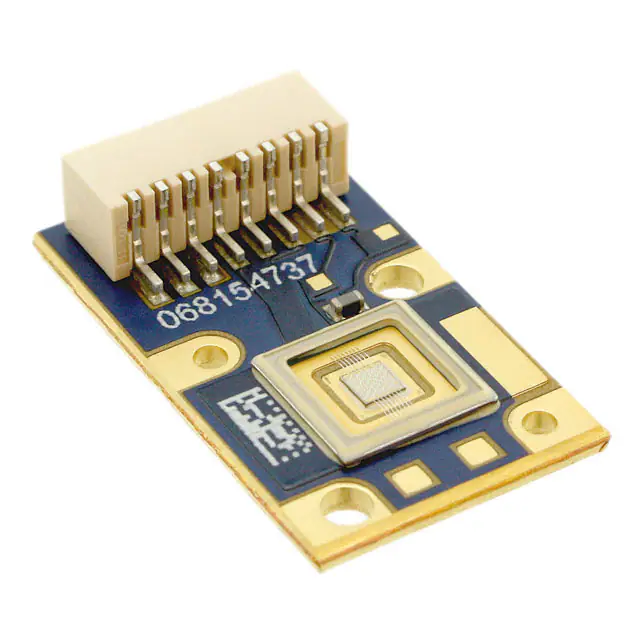

CBT-40-B-C21-KF301LED MOD CBT-40 BLUE RECT Luminus Devices Inc. |
3,858 | - |
|
数据表 |
CBT-40 | Tray | Obsolete | LED Module | Blue | 463nm (455nm ~ 470nm) | Rectangle | 110lm (Typ) | 6.30mm | 5.9A | 40°C | - | 4.2V | 4 lm/W | 26.50mm L x 16.00mm W | 12A | 1.87mm L x 2.09mm W | With Connector | - | - | Flat |
