LED COB、引擎、模块、灯条
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 波长 | 配置 | 光通量 @ 电流/温度 | 高度 | 电流 - 测试 | 测试温度 | 相关色温 (CCT)（K） | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 尺寸 / 尺寸 | 电流 - 最大值 | 发光表面 (LES) | 特性 | 显色指数 (CRI) | 视角 | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBT-90-R-C11-HK101LED MOD CBT-90 RED RECT Luminus Devices Inc. |
2,609 | - |
|
数据表 |
CBT-90 | Tray | Obsolete | LED Module | Red | 628nm | Rectangle | - | 4.08mm | 13.5A | - | - | 2.5V | - | 28.00mm L x 26.75mm W | 18A | 3.00mm L x 3.00mm W | With Connector | - | - | Flat |
|
SSR-90-G-R11-JG200LED MOD SSR-90 GREEN STARBOARD Luminus Devices Inc. |
4,475 | - |
|
数据表 |
SSR-90 | Tray | Obsolete | LED Module | Green | 537nm | Starboard | - | 7.10mm | 3.15A | - | - | 3.4V | - | 19.90mm L x 19.90mm W | 27A | 8.00mm Dia | - | - | 100° | Domed |
|
SSR-90-R-R11-HH100LED MOD SSR-90 RED STARBOARD Luminus Devices Inc. |
1,549 | - |
|
数据表 |
SSR-90 | Tray | Obsolete | LED Module | Red | 624nm | Starboard | - | 7.10mm | 3.15A | - | - | 2V | - | 19.90mm L x 19.90mm W | 27A | 8.00mm Dia | - | - | 100° | Domed |
|

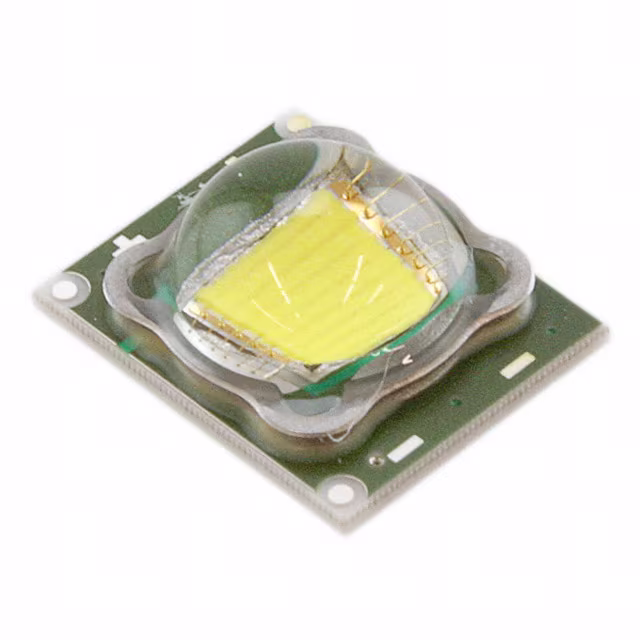

SST-50-W65S-F21-GK100LED COB SST-50 COOL WH SQ 6500K Luminus Devices Inc. |
1,318 | - |
|
数据表 |
SST-50 | Tray | Obsolete | Chip On Board (COB) | White, Cool | - | Square | - | 4.30mm | 1.75A | - | 6500K | 3.2V | - | 7.30mm L x 9.00mm W | 5A | 5.60mm Dia | - | 70 | 100° | Domed |
|
CST-90-W65S-C12-GN102LED MOD CST-90 CL WH RECT 6500K Luminus Devices Inc. |
4,946 | - |
|
数据表 |
CST-90 | Tray | Obsolete | LED Module | White, Cool | - | Rectangle | 925lm (850lm ~ 1000lm) | 5.61mm | 3.15A | 40°C | 6500K | 3.25V | 90 lm/W | 28.00mm L x 42.00mm W | 13.5A | 3.00mm L x 3.00mm W | With Connector | 70 (Typ) | 95° | Domed |
|
|
CST-90-W65S-C13-GN100LED MOD CST-90 COOL WH SQ 6500K Luminus Devices Inc. |
3,777 | - |
|
数据表 |
CST-90 | Tray | Obsolete | LED Module | White, Cool | - | Square | 925lm (850lm ~ 1000lm) | 7.90mm | 3.15A | 25°C | 6500K | 3.25V | 90 lm/W | 42.00mm L x 28.00mm W | 13.5A | 8.00mm Dia | With Connector | 70 (Typ) | - | Domed |
|
SST-90-B-F11-KG300LED COB SST-90 BLUE SQUARE Luminus Devices Inc. |
3,046 | - |
|
数据表 |
SST-90 | Tray | Obsolete | Chip On Board (COB) | Blue | 465nm | Square | 180lm (Typ) | 5.40mm | 3.15A | 25°C | - | 3.4V | 17 lm/W | 11.00mm L x 10.00mm W | 27A | 8.00mm Dia | - | 70 | 100° | Domed |
|
SBR-160-RGBW-R41-RD100LED MOD SBR-160 RGBW SQU 6500K Luminus Devices Inc. |
2,902 | - |
|
数据表 |
SBR-160 | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 623nm Red, 530nm Green, 458nm Blue | Square | - | 8.72mm | 4A Red, 4A Green, 4A Blue, 4A White | 25°C | 6500K | 3V Red, 4.6V Green, 3.8V Blue, 3.8V White | - | 36.00mm L x 36.00mm W | 4A Red, 4A Green, 4A Blue, 4A White | - | With Connector | - | - | Flat |
|
SST-90-G-F11-JG201LED COB SST-90 GREEN SQUARE Luminus Devices Inc. |
4,370 | - |
|
数据表 |
SST-90 | Tray | Obsolete | Chip On Board (COB) | Green | 537nm | Square | 855lm (Typ) | 5.40mm | 3.15A | 25°C | - | 3.4V | 80 lm/W | 11.00mm L x 10.00mm W | 27A | 8.00mm Dia | - | 70 | 100° | Domed |
|
CBT-120-R-C11-HM101LED MOD CBT-120 RED SQUARE Luminus Devices Inc. |
4,145 | - |
|
数据表 |
CBT-120 | Tray | Discontinued at Digi-Key | LED Module | Red | 621nm (619nm ~ 623nm) | Square | - | 5.61mm | 18A | - | - | 2.3V | - | 28.00mm L x 42.00mm W | 36A | 2.60mm L x 4.63mm W | With Connector | - | - | Flat |
