单个 IGBTs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 电压 - 集电极发射极击穿（最大值） | 电流 - 集电极脉冲 (Icm) | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 功率 - 最大值 | 安装类型 | 开关能量 | 输入类型 | 电流 - 集电极 (Ic)（最大值） | 栅极电荷 | 导通/关断时间 (Td) @ 25°C | 认证 | 测试条件 | 供应商设备封装 | 等级 | 反向恢复时间 (trr) | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IXXR110N65B4H1IGBT 650V 150A 455W ISOPLUS247 IXYS |
28 | - |
|
数据表 |
GenX4™, XPT™ | TO-247-3 | Tube | Active | PT | 650 V | 460 A | 2.2V @ 15V, 110A | 455 W | Through Hole | 2.2mJ (on), 1.05mJ (off) | Standard | 150 A | 183 nC | 38ns/156ns | - | 400V, 55A, 2Ohm, 15V | ISOPLUS247™ | - | 100 ns | -55°C ~ 175°C (TJ) |
|
IXBA16N170AHVREVERSE CONDUCTING IGBT IXYS |
8 | - |
|
数据表 |
BIMOSFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | - | 1700 V | 40 A | 6V @ 15V, 10A | 150 W | Surface Mount | 2.5mJ (off) | Standard | 16 A | 65 nC | 15ns/250ns | - | 1360V, 10A, 10Ohm, 15V | TO-263HV | - | 25 ns | -55°C ~ 150°C (TJ) |
|
IXXK300N60B3IGBT 600V 550A 2300W TO264 IXYS |
9 | - |
|
数据表 |
GenX3™, XPT™ | TO-264-3, TO-264AA | Tube | Active | PT | 600 V | 1140 A | 1.6V @ 15V, 100A | 2300 W | Through Hole | 3.45mJ (on), 2.86mJ (off) | Standard | 550 A | 460 nC | 50ns/190ns | - | 400V, 100A, 1Ohm, 15V | TO-264 (IXXK) | - | - | -55°C ~ 175°C (TJ) |
|
IXYK85N120C4H1IGBT TRENCH 1200V 220A SOT227B IXYS |
82 | - |
|
数据表 |
XPT™ | SOT-227-4, miniBLOC | Tube | Active | Trench | 1200 V | 420 A | 2.5V @ 15V, 85A | 1150 W | Chassis Mount | 4.3mJ (on), 2mJ (off) | Standard | 220 A | 192 nC | 35ns/280ns | - | 600V, 50A, 5Ohm, 15V | SOT-227B | - | 265 ns | -55°C ~ 175°C (TJ) |
|
IXYF30N450IGBT 4500V 23A ISOPLUSI4 IXYS |
17 | - |
|
数据表 |
XPT™ | ISOPLUSi5-PAK™ | Tube | Active | - | 4500 V | 190 A | 3.9V @ 15V, 30A | 230 W | Through Hole | - | Standard | 23 A | 88 nC | 38ns/168ns | - | 960V, 30A, 15Ohm, 15V | ISOPLUS i4-PAC™ | - | - | -55°C ~ 150°C (TJ) |
|
IXYP50N65C3IGBT 650V 130A 600W TO220 IXYS |
7,799 | - |
|
数据表 |
GenX3™, XPT™ | TO-220-3 | Tube | Active | PT | 650 V | 250 A | 2.1V @ 15V, 36A | 600 W | Through Hole | 1.3mJ (on), 370µJ (off) | Standard | 130 A | 80 nC | 22ns/80ns | - | 400V, 36A, 5Ohm, 15V | TO-220-3 | - | - | -55°C ~ 175°C (TJ) |
|
|
IXGA20N120A3IGBT PT 1200V 40A TO263AA IXYS |
4,657 | - |
|
数据表 |
GenX3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | PT | 1200 V | 120 A | 2.5V @ 15V, 20A | 180 W | Surface Mount | 2.85mJ (on), 6.47mJ (off) | Standard | 40 A | 50 nC | 16ns/290ns | - | 960V, 20A, 10Ohm, 15V | TO-263AA | - | - | -55°C ~ 150°C (TJ) |
|
IXBT42N170IGBT 1700V 80A TO268AA IXYS |
5,888 | - |
|
数据表 |
BIMOSFET™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | - | 1700 V | 300 A | 2.8V @ 15V, 42A | 360 W | Surface Mount | - | Standard | 80 A | 188 nC | - | - | - | TO-268AA | - | 1.32 µs | -55°C ~ 150°C (TJ) |
|

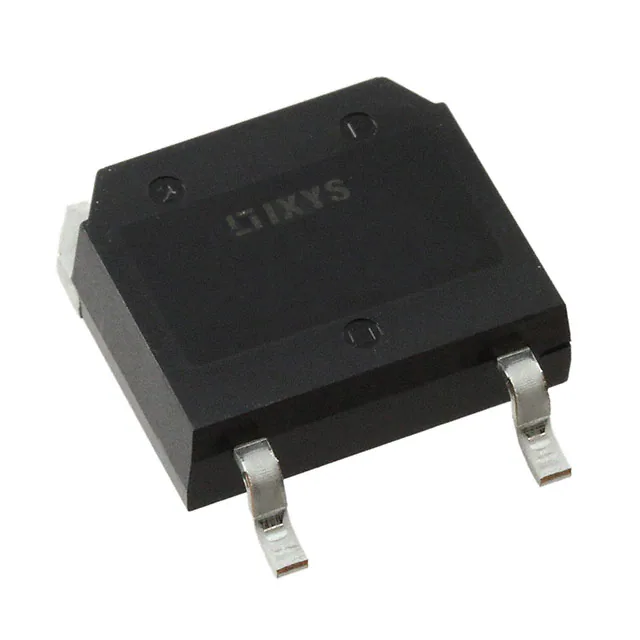

IXYT30N450HVIGBT 4500V 60A TO268HV IXYS |
5,472 | - |
|
数据表 |
XPT™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | - | 4500 V | 200 A | 3.9V @ 15V, 30A | 430 W | Surface Mount | - | Standard | 60 A | 88 nC | 38ns/168ns | - | 960V, 30A, 10Ohm, 15V | TO-268HV (IXYT) | - | - | -55°C ~ 150°C (TJ) |
|
|
IXBK75N170IGBT 1700V 200A TO264AA IXYS |
7,696 | - |
|
数据表 |
BIMOSFET™ | TO-264-3, TO-264AA | Tube | Active | - | 1700 V | 580 A | 3.1V @ 15V, 75A | 1040 W | Through Hole | - | Standard | 200 A | 350 nC | - | - | - | TO-264AA | - | 1.5 µs | -55°C ~ 150°C (TJ) |
