单个 IGBTs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 电压 - 集电极发射极击穿（最大值） | 电流 - 集电极脉冲 (Icm) | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 功率 - 最大值 | 安装类型 | 开关能量 | 输入类型 | 电流 - 集电极 (Ic)（最大值） | 栅极电荷 | 导通/关断时间 (Td) @ 25°C | 认证 | 测试条件 | 供应商设备封装 | 等级 | 反向恢复时间 (trr) | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IXXH60N65B4H1IGBT 650V 116A 380W TO247AD IXYS |
8,763 | - |
|
数据表 |
GenX4™, XPT™ | TO-247-3 | Tube | Active | PT | 650 V | 230 A | 2V @ 15V, 60A | 380 W | Through Hole | 3.13mJ (on), 1.15mJ (off) | Standard | 116 A | 95 nC | 37ns/145ns | - | 400V, 60A, 5Ohm, 15V | TO-247AD (IXXH) | - | 150 ns | -55°C ~ 175°C (TJ) |
|
ITF48IF1200HRIGBT TRENCH 1200V 72A ISO247 IXYS |
7,238 | - |
|
数据表 |
- | TO-247-3 | Tube | Active | Trench | 1200 V | - | 2.4V @ 15V, 40A | 390 W | Through Hole | 3mJ (on), 2.4mJ (off) | Standard | 72 A | 175 nC | 26ns/350ns | - | 600V, 40A, 12Ohm, 15V | ISO247 | - | - | - |
|
|
IXXX200N60B3IGBT IXYS |
4,876 | - |
|
数据表 |
XPT™, GenX3™ | TO-247-3 Variant | Tube | Active | - | 600 V | 900 A | 1.7V @ 15V, 100A | 1630 W | Through Hole | 2.85mJ (on), 4.4mJ (off) | Standard | 380 A | 315 nC | 48ns/160ns | - | 360V, 100A, 1Ohm, 15V | PLUS247™-3 | - | 100 ns | -55°C ~ 175°C (TJ) |
|

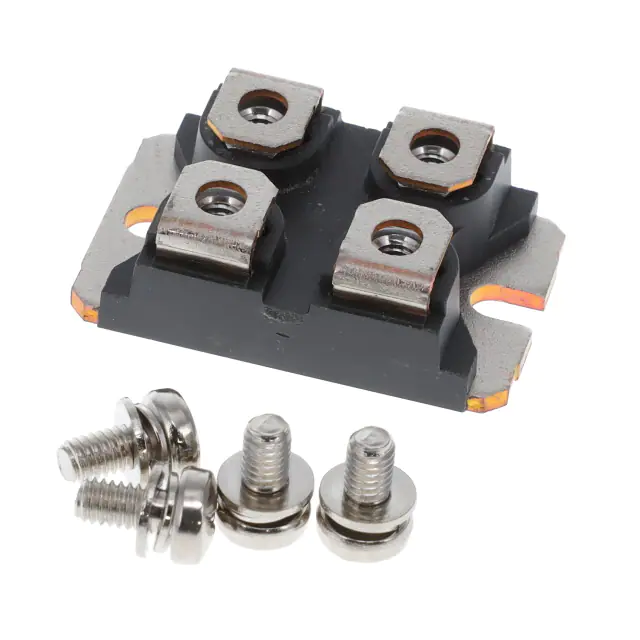

IXA70R1200NADISC IGBT XPT-GENX3 SOT-227B(MIN IXYS |
2,699 | - |
|
数据表 |
XPT™ | SOT-227-4, miniBLOC | Tube | Active | PT | 1200 V | - | 2.1V @ 15V, 50A | 350 W | Chassis Mount | 4.5mJ (on), 5.5mJ (off) | Standard | 100 A | 190 nC | 70ns/250ns | - | 600V, 50A, 15Ohm, 15V | SOT-227B | - | - | - |
.jpg)
|
IXXX200N65B4IGBT PT 650V 370A PLUS247-3 IXYS |
9,502 | - |
|
数据表 |
GenX4™, XPT™ | TO-247-3 Variant | Tube | Active | PT | 650 V | 1000 A | 1.7V @ 15V, 160A | 1150 W | Through Hole | 4.4mJ (on), 2.2mJ (off) | Standard | 370 A | 553 nC | 62ns/245ns | - | 400V, 100A, 1Ohm, 15V | PLUS247™-3 | - | - | -55°C ~ 175°C (TJ) |
|
IXYN110N120A4IGBT PT 1200V 275A SOT227B IXYS |
3 | - |
|
数据表 |
XPT™, GenX4™ | SOT-227-4, miniBLOC | Tube | Active | PT | 1200 V | 950 A | 1.8V @ 15V, 110A | 830 W | Chassis Mount | 2.5mJ (on), 8.4mJ (off) | Standard | 275 A | 305 nC | 42ns/550ns | - | 600V, 50A, 2Ohm, 15V | SOT-227B | - | - | -55°C ~ 175°C (TJ) |
|
|
IXBX25N250IGBT 2500V 55A PLUS247-3 IXYS |
5,410 | - |
|
数据表 |
BIMOSFET™ | TO-247-3 Variant | Tube | Active | - | 2500 V | 180 A | 3.3V @ 15V, 25A | 300 W | Through Hole | - | Standard | 55 A | 103 nC | - | - | - | PLUS247™-3 | - | 1.6 µs | -55°C ~ 150°C (TJ) |
|
IXYA20N120A4HVDISC IGBT XPT-GENX4 TO-263D2 IXYS |
7,160 | - |
|
数据表 |
GenX4™, XPT™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | PT | 1200 V | 135 A | 1.9V @ 15V, 20A | 375 W | Surface Mount | 3.6mJ (on), 2.75mJ (off) | Standard | 80 A | 46 nC | 12ns/275ns | - | 800mV, 20A, 10Ohm, 15V | TO-263HV | - | 54 ns | -55°C ~ 175°C (TJ) |
|
|
IXYH50N65C3IGBT 650V 130A 600W TO247 IXYS |
6,757 | - |
|
数据表 |
GenX3™, XPT™ | TO-247-3 | Tube | Active | PT | 650 V | 250 A | 2.1V @ 15V, 36A | 600 W | Through Hole | 1.3mJ (on), 370µJ (off) | Standard | 130 A | 80 nC | 22ns/80ns | - | 400V, 36A, 5Ohm, 15V | TO-247 (IXTH) | - | - | -55°C ~ 175°C (TJ) |
|
|
IXGH48N60B3D1IGBT 600V 300W TO247 IXYS |
3,865 | - |
|
数据表 |
GenX3™ | TO-247-3 | Tube | Active | PT | 600 V | 280 A | 1.8V @ 15V, 32A | 300 W | Through Hole | 840µJ (on), 660µJ (off) | Standard | - | 115 nC | 22ns/130ns | - | 480V, 30A, 5Ohm, 15V | TO-247AD | - | 100 ns | -55°C ~ 150°C (TJ) |
