IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCGLQ200SK65TGPM-IGBT-SP4 Microchip Technology |
6 | - |
|
数据表 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

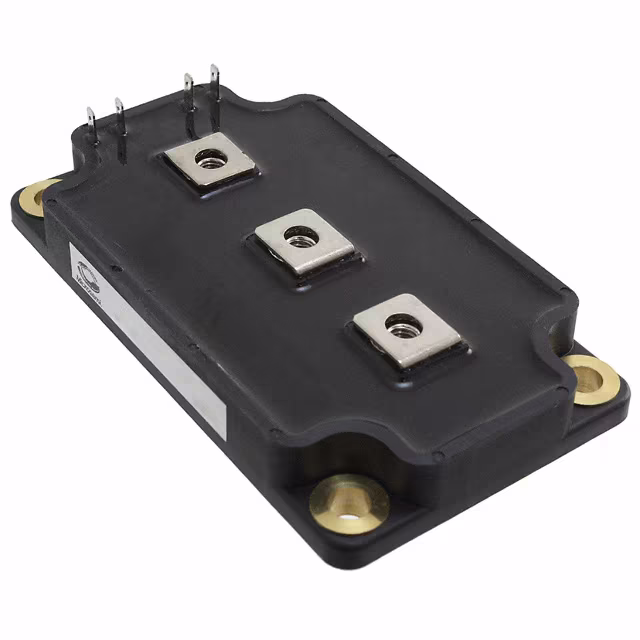

APTGT200DU120GIGBT MODULE 1200V 280A 890W SP6 Microchip Technology |
16 | - |
|
数据表 |
- | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | 1200 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
MSCGLQ75H120CTBL3NGPM-IGBT-SBD-BL3 Microchip Technology |
8 | - |
|
数据表 |
- | Module | Bulk | Active | - | Full Bridge | 160 A | 470 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | 1200 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ75DDU120CTBL3NGPM-IGBT-SBD-BL3 Microchip Technology |
7 | - |
|
数据表 |
- | Module | Bulk | Active | - | Full Bridge | 160 A | 470 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | 1200 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
APT150GN120JIGBT MOD 1200V 215A 625W ISOTOP Microchip Technology |
8,324 | - |
|
数据表 |
- | ISOTOP | Tube | Active | Trench Field Stop | Single | 215 A | 625 W | 2.1V @ 15V, 150A | 100 µA | 9.5 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGT50TL601GIGBT MODULE 600V 80A 176W SP1 Microchip Technology |
1 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Three Level Inverter | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | 600 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
MSCGLQ50DU120CTBL1NGPM-IGBT-SBD-BL1 Microchip Technology |
9,618 | - |
|
数据表 |
- | Module | Bulk | Active | - | Half Bridge | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | 1200 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50A120CTBL1NGPM-IGBT-SBD-BL1 Microchip Technology |
7,308 | - |
|
数据表 |
- | Module | Bulk | Active | - | Half Bridge | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | 1200 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50DH120CTBL2NGPM-IGBT-SBD-BL2 Microchip Technology |
3,343 | - |
|
数据表 |
- | Module | Bulk | Active | - | Asymmetrical Bridge | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | 1200 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50H120CTBL2NGPM-IGBT-SBD-BL2 Microchip Technology |
3,630 | - |
|
数据表 |
- | Module | Bulk | Active | - | Full Bridge | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | 1200 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
