IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT200GN60JDQ4IGBT MOD 600V 283A 682W ISOTOP Microchip Technology |
33 | - |
|
数据表 |
- | ISOTOP | Tube | Active | Trench Field Stop | Single | 283 A | 682 W | 1.85V @ 15V, 200A | 50 µA | 14.1 nF @ 25 V | 600 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT75GT120JU2IGBT MOD 1200V 100A 416W SOT227 Microchip Technology |
66 | - |
|
数据表 |
- | ISOTOP | Bulk | Active | Trench Field Stop | Single | 100 A | 416 W | 2.1V @ 15V, 75A | 5 mA | 5.34 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT200GN60JIGBT MOD 600V 283A 682W ISOTOP Microchip Technology |
35 | - |
|
数据表 |
- | ISOTOP | Tube | Active | Trench Field Stop | Single | 283 A | 682 W | 1.85V @ 15V, 200A | 25 µA | 14.1 nF @ 25 V | 600 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT70GR120JD60IGBT MOD 1200V 112A 543W SOT227 Microchip Technology |
20 | - |
|
数据表 |
- | SOT-227-4 | Tube | Active | NPT | Single | 112 A | 543 W | 3.2V @ 15V, 70A | 1.1 mA | 7.26 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT150GN60JDQ4IGBT MOD 600V 220A 536W ISOTOP Microchip Technology |
20 | - |
|
数据表 |
- | ISOTOP | Tube | Active | Trench Field Stop | Single | 220 A | 536 W | 1.85V @ 15V, 150A | 50 µA | 9.2 nF @ 25 V | 600 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT100GT120JRDQ4IGBT MOD 1200V 123A 570W ISOTOP Microchip Technology |
8 | - |
|
数据表 |
Thunderbolt IGBT® | ISOTOP | Tube | Active | NPT | Single | 123 A | 570 W | 3.7V @ 15V, 100A | 200 µA | 7.85 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT150GN120JDQ4IGBT MOD 1200V 215A 625W ISOTOP Microchip Technology |
9 | - |
|
数据表 |
- | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 215 A | 625 W | 2.1V @ 15V, 150A | 300 µA | 9.5 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|

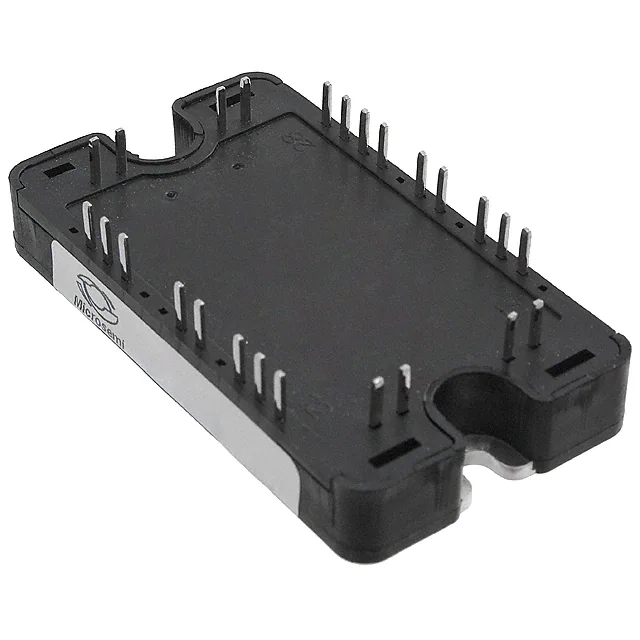

APTGT50H60T3GIGBT MODULE 600V 80A 176W SP3 Microchip Technology |
15 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APT85GR120JIGBT MOD 1200V 116A 543W SOT227 Microchip Technology |
10 | - |
|
数据表 |
- | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 116 A | 543 W | 3.2V @ 15V, 85A | 1 mA | 8.4 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT85GR120JD60IGBT MOD 1200V 116A 543W SOT227 Microchip Technology |
20 | - |
|
数据表 |
- | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 116 A | 543 W | 3.2V @ 15V, 85A | 1.1 mA | 8.4 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
