固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5219-RCFIXED IND 4.9UH 15A 16 MOHM TH |
1,515 | - |
|
数据表 |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Iron | ±20% | 15 A | - | - | Unshielded | 16mOhm Max | 4.9 µH | - | 95MHz | Through Hole | - | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) | - | -55°C ~ 105°C | 7.96 MHz | - |
|
CDPH4D19FNP-220MCFIXED IND 22UH 1.44A 135MOHM SMD |
60,892 | - |
|
数据表 |
CDPH4D19F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.44 A | 540mA | - | Shielded | 135mOhm Max | 22 µH | - | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|

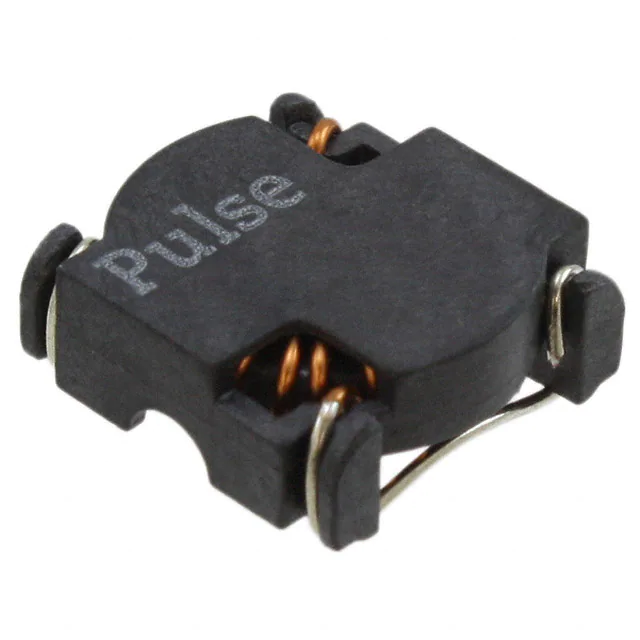

P0144NLTFIXED IND 10.4UH 3.8A 31MOHM SMD |
2,351 | - |
|
数据表 |
Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | - | 3.8 A | - | - | Unshielded | 31mOhm Max | 10.4 µH | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 130°C | - | 0.215" (5.46mm) |
|
|
CDPH4D19FNP-330MCFIXED IND 33UH 1.25A 200MOHM SMD |
48,201 | - |
|
数据表 |
CDPH4D19F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.25 A | 430mA | - | Shielded | 200mOhm Max | 33 µH | - | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
DR74-151-RFIXED IND 150UH 690MA 591MOHM SM |
33,917 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 690 mA | 810mA | - | Shielded | 591mOhm | 150 µH | - | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.171" (4.35mm) |
|
LQW03AW10NJ00DFIXED IND 10NH 250MA 460MOHM SMD |
17,633 | - |
|
数据表 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 250 mA | - | - | Unshielded | 460mOhm Max | 10 nH | 37 @ 900MHz | 7.2GHz | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
AMPLA4020Q-2R2MTFIXED IND 2.2UH 4A 61 MOHM SMD |
17,272 | - |
|
数据表 |
AMPLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 4 A | 6A | - | Shielded | 61mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
LQW03AW9N1J00DFIXED IND 9.1NH 460MA 220MOHM SM |
16,678 | - |
|
数据表 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±5% | 460 mA | - | - | Unshielded | 220mOhm Max | 9.1 nH | 46 @ 900MHz | 6.4GHz | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
|
LQW03AW6N8J00DFIXED IND 6.8NH 460MA 180MOHM SM |
11,829 | - |
|
数据表 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±5% | 460 mA | - | - | Unshielded | 180mOhm Max | 6.8 nH | 42 @ 900MHz | 7.7GHz | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
P0146NLTFIXED IND 25UH 2.43A 75 MOHM SMD |
785 | - |
|
数据表 |
Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | - | 2.43 A | - | - | Unshielded | 75mOhm Max | 25 µH | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 130°C | - | 0.215" (5.46mm) |
|
SH50C-3.0-47FIXED IND 47UH 3A 50 MOHM TH |
614 | - |
|
数据表 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 50mOhm Max | 47 µH | - | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | - | -40°C ~ 125°C | 10 kHz | 0.760" (19.30mm) |
|

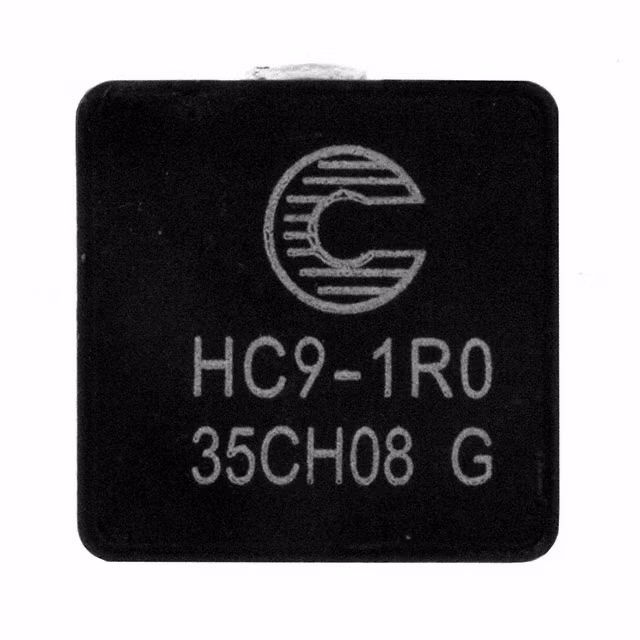

HC9-1R0-RFIXED IND 1UH 23.7A 1.87MOHM SMD |
1,198 | - |
|
数据表 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±15% | 23.7 A | 41A | - | Unshielded | 1.87mOhm Max | 1 µH | - | - | Surface Mount | - | 0.528" L x 0.516" W (13.40mm x 13.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.295" (7.50mm) |
|
2474R-33LFIXED IND 470UH 590MA 1.03OHM TH |
408 | - |
|
数据表 |
2474R | Axial | Bulk | Active | Molded | Ferrite | ±15% | 590 mA | 290mA | - | Unshielded | 1.03Ohm Max | 470 µH | - | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
4590R-825KFIXED IND 8.2MH 320MA 6.44OHM TH |
387 | - |
|
数据表 |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 320 mA | 200mA | - | Unshielded | 6.44Ohm Max | 8.2 mH | - | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
SH150S-3.00-25FIXED IND 25UH 3A 40 MOHM SMD |
3,545 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 40mOhm | 25 µH | - | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.443" (11.25mm) |
.jpg)
|
AIRD-03-1R0MFIXED IND 1UH 21A 3 MOHM TH |
380 | - |
|
数据表 |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 21 A | 116A | - | Unshielded | 3mOhm Max | 1 µH | - | - | Through Hole | - | 1.102" Dia (28.00mm) | - | -25°C ~ 85°C | 1 Hz | 0.827" (21.00mm) |
|
HCM1A1707-330-RFIXED IND 33UH 6A 37 MOHM SMD |
240 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 6 A | 9A | - | Shielded | 37mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
IHLP2525CZERR22M01FIXED IND 220NH 23A 2.8 MOHM SMD |
8,697 | - |
|
数据表 |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 23 A | 40A | - | Shielded | 2.8mOhm Max | 220 nH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
LQW03AW14NJ00DFIXED IND 13.5NH 240MA 530 MOHM |
8,371 | - |
|
数据表 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 240 mA | - | - | Unshielded | 530mOhm Max | 13.5 nH | 37 @ 900MHz | 6GHz | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
|
HCM1A1707-680-RFIXED IND 68UH 5.2A 60 MOHM SMD |
4 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 5.2 A | 6A | - | Shielded | 60mOhm Max | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
