固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

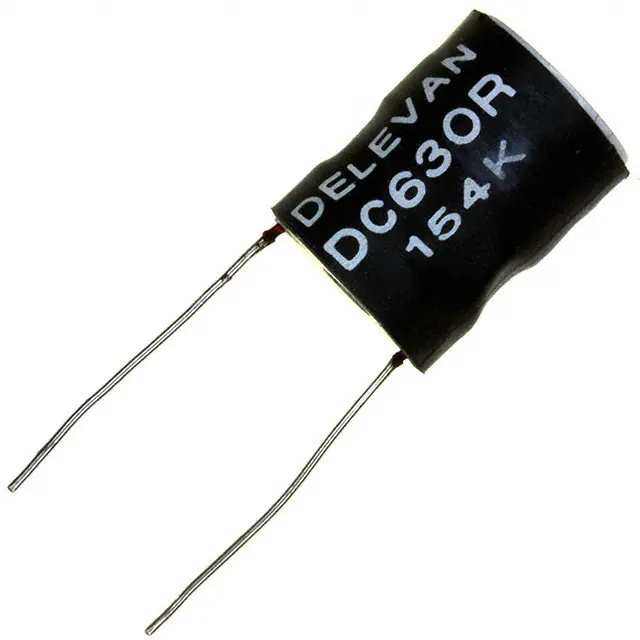

DC630R-154KFIXED IND 150UH 2.97A 111MOHM TH |
248 | - |
|
数据表 |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.97 A | 5.6A | - | Unshielded | 111mOhm Max | 150 µH | - | - | Through Hole | - | 0.630" Dia (16.00mm) | - | -55°C ~ 125°C | 10 kHz | 0.830" (21.08mm) |
|
SLF10145T-221MR65-PFFIXED IND 220UH 700MA 564MOHM SM |
14,730 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 650mA | - | Shielded | 564mOhm Max | 220 µH | - | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 105°C | 1 kHz | 0.189" (4.80mm) |
|
L04023R9BHNTRFIXED IND 3.9NH 250MA 450MOHM SM |
8,924 | - |
|
数据表 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 250 mA | - | 0402 (1005 Metric) | Unshielded | 450mOhm Max | 3.9 nH | 13 @ 450MHz | 8GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|
LQW03AW7N5J00DFIXED IND 7.5NH 400MA 240MOHM SM |
7,910 | - |
|
数据表 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±5% | 400 mA | - | - | Unshielded | 240mOhm Max | 7.5 nH | 41 @ 900MHz | 7.5GHz | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
4590R-683KFIXED IND 68UH 3.355A 59 MOHM TH |
452 | - |
|
数据表 |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.355 A | 2.1A | - | Unshielded | 59mOhm Max | 68 µH | - | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
DR74-331-RFIXED IND 330UH 450MA 1.41OHM SM |
7,599 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 450 mA | 540mA | - | Shielded | 1.41Ohm | 330 µH | - | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.171" (4.35mm) |
|
|
4590R-684KFIXED IND 680UH 1.08A 570MOHM TH |
420 | - |
|
数据表 |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.08 A | 670mA | - | Unshielded | 570mOhm Max | 680 µH | - | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
4590R-124KFIXED IND 120UH 2.43A 113MOHM TH |
231 | - |
|
数据表 |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.43 A | 1.6A | - | Unshielded | 113mOhm Max | 120 µH | - | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
PE-92106KNLFIXED IND 285UH 3A 140 MOHM TH |
569 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±20% | 3 A | - | - | Unshielded | 140mOhm Max | 285 µH | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | - | -40°C ~ 130°C | 20 kHz | 1.400" (35.56mm) |
.jpg)
|

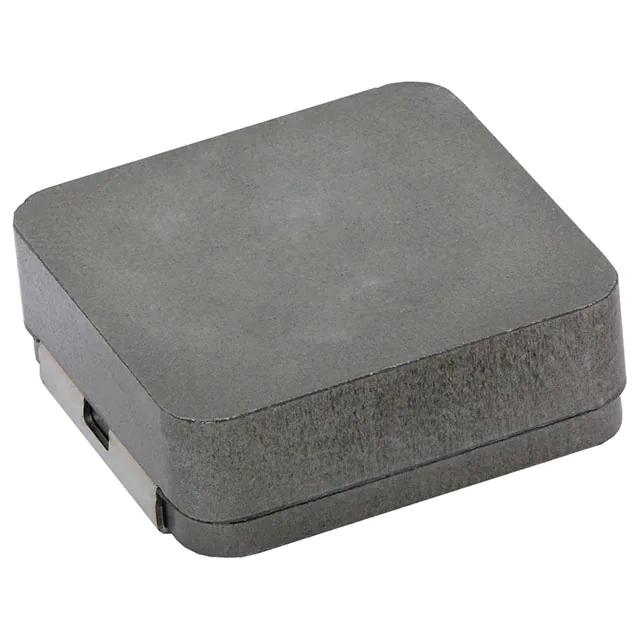

IHLP7575GZER8R2M5AFIXED IND 8.2UH 20.7A 7.74 MOHM |
491 | - |
|
数据表 |
IHLP-7575GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 20.7 A | 33A | - | Shielded | 7.74mOhm Max | 8.2 µH | - | 8.7MHz | Surface Mount | AEC-Q200 | 0.752" L x 0.750" W (19.10mm x 19.05mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
B82559B6682A019FIXED IND 6.8UH 12.7A 7.6MOHM SM |
462 | - |
|
数据表 |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 12.7 A | 21.3A | - | Shielded | 7.6mOhm | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.783" L x 0.728" W (19.90mm x 18.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.315" (8.00mm) |
|

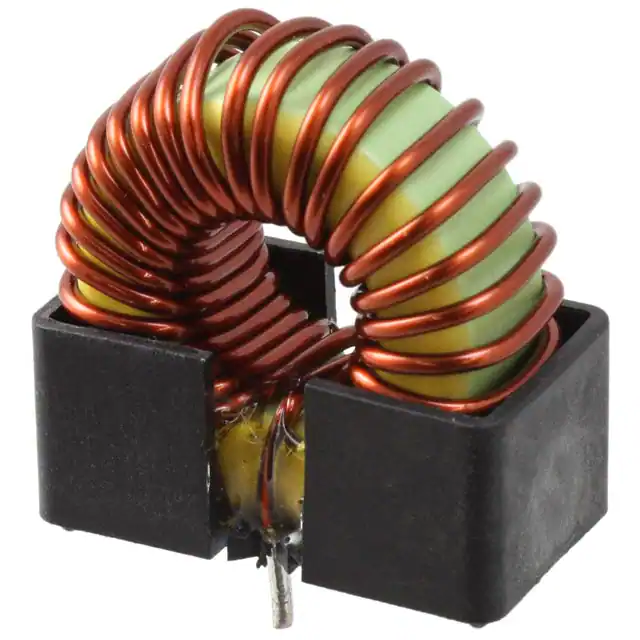

PE-92116KNLFIXED IND 55UH 7A 17 MOHM TH |
1,803 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±20% | 7 A | - | - | Unshielded | 17mOhm Max | 55 µH | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | - | -40°C ~ 130°C | 20 kHz | 1.400" (35.56mm) |
.jpg)
|
AIRD-03-8R2MFIXED IND 8.2UH 21A 4 MOHM TH |
178 | - |
|
数据表 |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 21 A | 42A | - | Unshielded | 4mOhm Max | 8.2 µH | - | - | Through Hole | - | 1.102" Dia (28.00mm) | - | -25°C ~ 85°C | 1 Hz | 0.827" (21.00mm) |
|
|
B82559B7103A019FIXED IND 10UH 11.7A 8.8MOHM SMD |
467 | - |
|
数据表 |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 11.7 A | 15.8A | - | Shielded | 8.8mOhm | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.783" L x 0.728" W (19.90mm x 18.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.315" (8.00mm) |
|
|
AIRD-03-391KFIXED IND 390UH 4A 169 MOHM TH |
156 | - |
|
数据表 |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 4 A | 6.7A | - | Unshielded | 169mOhm Max | 390 µH | - | - | Through Hole | - | 1.102" Dia (28.00mm) | - | -25°C ~ 85°C | 1 Hz | 0.827" (21.00mm) |
|
HCM1A1305-R33-RFIXED IND 330NH 35A 0.92MOHM SMD |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 35 A | 44A | - | Shielded | 0.92mOhm Max | 330 nH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1305-5R6-RFIXED IND 5.6UH 8.8A 13.8MOHM SM |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 8.8 A | 15A | - | Shielded | 13.8mOhm Max | 5.6 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
IHLP7575GZER100M51FIXED IND 10UH 18.7A 0.00996OHM |
533 | - |
|
数据表 |
IHLP-7575GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 18.7 A | 31.1A | - | Shielded | 9.96mOhm Max | 10 µH | - | 8.4MHz | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
MLG0402P3N6ST000FIXED IND 3.6NH 180MA 1.1OHM SMD |
0 | - |
|
数据表 |
MLG-P | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.3nH | 180 mA | - | 01005 (0402 Metric) | Unshielded | 1.1Ohm Max | 3.6 nH | 8 @ 500MHz | 6GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
ASPI-0403S-682M-TFIXED IND 6.8MH 40MA 25 OHM SMD |
7,059 | - |
|
数据表 |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 40 mA | - | - | Shielded | 25Ohm Max | 6.8 mH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
