固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGL5030-102MECPOWER INDUCTOR, SHIELDED, COMPOS |
698 | - |
|
数据表 |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 17.8 A | 14A | - | Shielded | 5.8mOhm Max | 1 µH | - | 52MHz | Surface Mount | AEC-Q200 | 0.216" L x 0.208" W (5.48mm x 5.28mm) | - | -40°C ~ 165°C | 1 MHz | 0.122" (3.10mm) |
|
HCM1A1305-8R2-RFIXED IND 8.2UH 7.3A 20.1MOHM SM |
1 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 7.3 A | 13A | - | Shielded | 20.1mOhm Max | 8.2 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
CSEB0770H-5R6MSMD MOLDING POWER CHOKE |
544 | - |
|
数据表 |
CSEB0770H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 11.5 A | 12A | - | Shielded | 13.5mOhm Max | 5.6 µH | - | - | Surface Mount | AEC-Q200 | 0.311" L x 0.299" W (7.90mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.280" (7.10mm) |
|
MLG0402Q1N1CT000FIXED IND 1.1NH 250MA 500MOHM SM |
0 | - |
|
数据表 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.2nH | 250 mA | - | 01005 (0402 Metric) | Unshielded | 500mOhm Max | 1.1 nH | 2 @ 100MHz | 10GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 100 MHz | 0.009" (0.22mm) |
|
|
HCM1A1305-330-RFIXED IND 33UH 4A 85.5 MOHM SMD |
393 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 4 A | 7A | - | Shielded | 85.5mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1305-3R3-RFIXED IND 3.3UH 12A 7.7MOHM SMD |
206 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 12 A | 16A | - | Shielded | 7.7mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1305-4R7-RFIXED IND 4.7UH 9.3A 12.7MOHM SM |
168 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 9.3 A | 15A | - | Shielded | 12.7mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
PM5433.103NLTFIXED IND 10UH 16A 9.6 MOHM SMD |
806 | - |
|
数据表 |
PM5433.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 16 A | - | - | Shielded | 9.6mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.650" L x 0.610" W (16.50mm x 15.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.315" (8.00mm) |
|
IHSM4825ER180LFIXED IND 18UH 1.9A 119 MOHM SMD |
707 | - |
|
数据表 |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 1.9 A | 1.1A | - | Unshielded | 119mOhm Max | 18 µH | - | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | - | -55°C ~ 125°C | 1 kHz | 0.225" (5.72mm) |
|
ASPIAIG-Q1010-4R7M-TFIXED IND 4.7UH 24A 5.7MOHM SMD |
408 | - |
|
数据表 |
ASPIAIG-Q1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 24 A | 21.4A | - | Shielded | 5.7mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.469" L x 0.433" W (11.90mm x 11.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.394" (10.00mm) |
|
|
ASPIAIG-Q1010-2R2M-TFIXED IND 2.2UH 32A 2.8MOHM SMD |
377 | - |
|
数据表 |
ASPIAIG-Q1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 32 A | 29A | - | Shielded | 2.8mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.469" L x 0.433" W (11.90mm x 11.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.394" (10.00mm) |
|

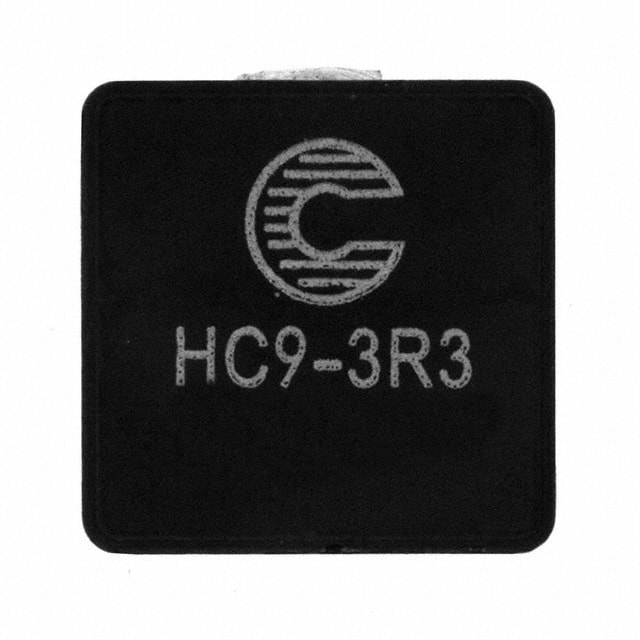

HC9-3R3-RFIXED IND 3.3UH 14.3A 4.87 MOHM |
948 | - |
|
数据表 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±15% | 14.3 A | 22A | - | Unshielded | 4.87mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.295" (7.50mm) |
|
S1812-683KFIXED IND 68UH 215MA 4.3 OHM SMD |
2,098 | - |
|
数据表 |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 215 mA | - | 1812 | Shielded | 4.3Ohm Max | 68 µH | 50 @ 2.5MHz | 7.6MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 2.5 MHz | 0.134" (3.40mm) |
|
|
S1812R-822KFIXED IND 8.2UH 372MA 1.44OHM SM |
2,066 | - |
|
数据表 |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 372 mA | - | 1812 | Shielded | 1.44Ohm Max | 8.2 µH | 40 @ 7.9MHz | 30MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.134" (3.40mm) |
|
|
S1812R-474KFIXED IND 470UH 91MA 24 OHM SMD |
682 | - |
|
数据表 |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 91 mA | - | 1812 | Shielded | 24Ohm Max | 470 µH | 40 @ 790kHz | 3.3MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 790 kHz | 0.134" (3.40mm) |
|
|
IHSM5832ER100LFIXED IND 10UH 4.3A 53 MOHM SMD |
126 | - |
|
数据表 |
IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 4.3 A | 1.8A | - | Unshielded | 53mOhm Max | 10 µH | - | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | - | -55°C ~ 125°C | 1 kHz | 0.285" (7.24mm) |
|

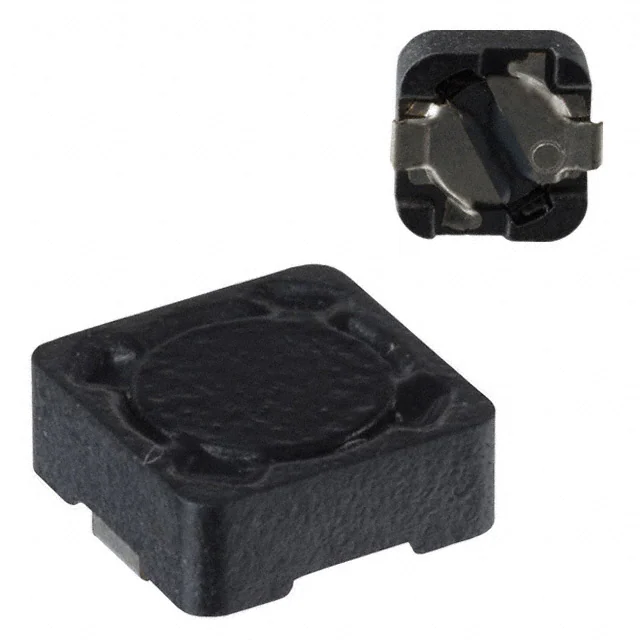

SPD74R-105MFIXED IND 1MH 280MA 6 OHM SMD |
1,169 | - |
|
数据表 |
SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 280 mA | 280mA | - | Shielded | 6Ohm Max | 1 mH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 1 kHz | 0.185" (4.70mm) |
|
|
SPD74R-104MFIXED IND 100UH 860MA 610MOHM SM |
685 | - |
|
数据表 |
SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 860 mA | 860mA | - | Shielded | 610mOhm Max | 100 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 1 kHz | 0.185" (4.70mm) |
|
|
SPD74R-153MFIXED IND 15UH 2.4A 81 MOHM SMD |
360 | - |
|
数据表 |
SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 2.4A | - | Shielded | 81mOhm Max | 15 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 1 kHz | 0.185" (4.70mm) |
|

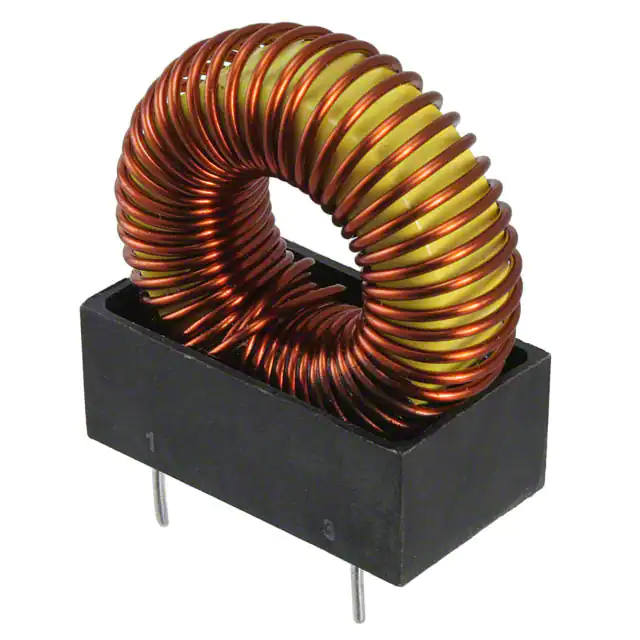

PE-51516NLFIXED IND 98UH 6A 48 MOHM TH |
391 | - |
|
数据表 |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | - | 6 A | - | - | Unshielded | 48mOhm Max | 98 µH | - | - | Through Hole | - | 1.600" L x 0.800" W (40.64mm x 20.32mm) | - | -40°C ~ 130°C | 50 kHz | 1.720" (43.68mm) |
