固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

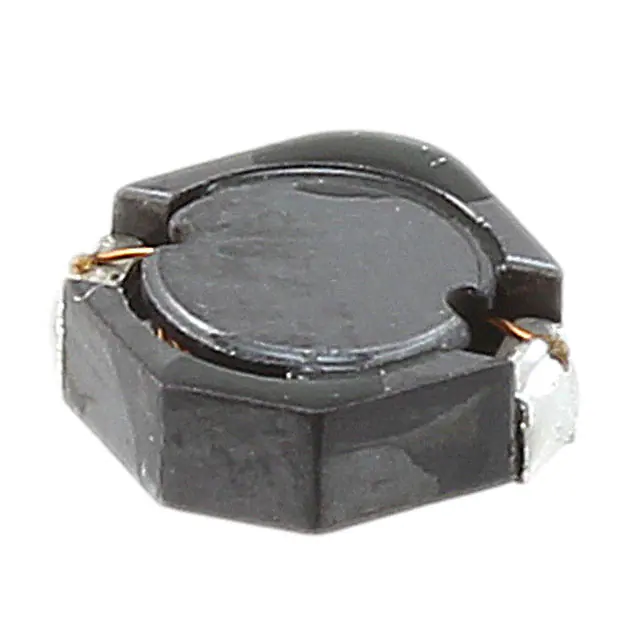

CDRH4D18CLDNP-4R7PCFIXED IND 4.7UH 2A 61 MOHM SMD |
33,489 | - |
|
数据表 |
CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 2 A | 900mA | - | Shielded | 61mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
SRN8040-4R7YFIXED IND 4.7UH 4.1A 24 MOHM SMD |
13,288 | - |
|
数据表 |
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.1 A | 4.7A | - | Shielded | 24mOhm Max | 4.7 µH | 13 @ 7.96MHz | 28MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
DRA124-1R5-RFIXED IND 1.5UH 9.36A 4.9MOHM SM |
0 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 9.36 A | 17.11A | - | Shielded | 4.9mOhm | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.177" (4.50mm) |
|
LGJ7045TS-221MR40-HFIXED IND 220UH 430MA 830MOHM SM |
936 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 430 mA | 400mA | - | Shielded | 830mOhm | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
|
LGJ7045TS-471MR31-HFIXED IND 470UH 310MA 1.8OHM SMD |
827 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 310 mA | 310mA | - | Shielded | 1.8Ohm | 470 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
|
LGJ7045TS-101MR60-HFIXED IND 100UH 610MA 390MOHM SM |
795 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 610 mA | 600mA | - | Shielded | 390mOhm | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
7843250072WE-HCIA SMT FLAT WIRE HIGH CURRE |
667 | - |
|
数据表 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 22 A | 36.1A | - | Shielded | 1.38mOhm Max | 720 nH | - | 103MHz | Surface Mount | AEC-Q200 | 0.413" L x 0.394" W (10.50mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.182" (4.63mm) |
|
|
LGJ7045TS-331MR35-HFIXED IND 330UH 370MA 1.15OHM SM |
761 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 370 mA | 350mA | - | Shielded | 1.15Ohm | 330 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
|
784325024WE-HCIA SMT FLAT WIRE HIGH CURRE |
339 | - |
|
数据表 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 14 A | 20.7A | - | Shielded | 5.4mOhm Max | 2.4 µH | - | 55MHz | Surface Mount | AEC-Q200 | 0.413" L x 0.394" W (10.50mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.182" (4.63mm) |
|
|
LGJ7045TS-470MR90-HFIXED IND 47UH 930MA 180MOHM SMD |
681 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 930 mA | 900mA | - | Shielded | 180mOhm | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
IHA102BAFIXED IND 100UH 2.1A 160 MOHM TH |
329 | - |
|
数据表 |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.1 A | - | - | Unshielded | 160mOhm Max | 100 µH | - | - | Through Hole | - | 0.475" Dia x 0.800" L (12.07mm x 20.32mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
LGJ7045TS-150M1R5-HFIXED IND 15UH 1.46A 68 MOHM SMD |
669 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.46 A | 1.5A | - | Shielded | 68mOhm | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
IHLE5050FHER2R2M5AIHLE-5050FH-5A 2.2 20% ER E3 |
734 | - |
|
数据表 |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 25.5 A | 21.5A | - | Shielded | 3.67mOhm Max | 2.2 µH | - | 23.3MHz | Surface Mount | AEC-Q200 | 0.550" L x 0.535" W (13.97mm x 13.59mm) | - | -55°C ~ 155°C | 100 kHz | 0.268" (6.80mm) |
|
|
IHLE5050FHER6R8M5AIHLE-5050FH-5A 6.8 20% ER E3 |
680 | - |
|
数据表 |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 14.9 A | 14.1A | - | Shielded | 12.09mOhm Max | 6.8 µH | - | 13.3MHz | Surface Mount | AEC-Q200 | 0.550" L x 0.535" W (13.97mm x 13.59mm) | - | -55°C ~ 155°C | 100 kHz | 0.268" (6.80mm) |
|
177CDMCCDS-1R0MCFIXED IND 1UH 44.6A 1.38MOHM SMD |
342 | - |
|
数据表 |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 44.6 A | 60.8A | SMD | Shielded | 1.38mOhm Max | 1 µH | - | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
PA4344.102NLTFIXED IND 1UH 52A 2 MOHM SMD |
1,052 | - |
|
数据表 |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | - | 52 A | 60A | - | Shielded | 2mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.697" L x 0.677" W (17.70mm x 17.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
LGJ7045TS-151MR50-HFIXED IND 150UH 540MA 550MOHM SM |
518 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 540 mA | 500mA | - | Shielded | 550mOhm | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
|
LGJ7045TS-330M1R1-HFIXED IND 33UH 1.11A 120MOHM SMD |
368 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.11 A | 1.1A | - | Shielded | 120mOhm | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
HC1-R30-RFIXED IND 300NH 51.42A 0.36 MOHM |
0 | - |
|
数据表 |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 51.42 A | 31.8A | - | Unshielded | 0.36mOhm Max | 300 nH | - | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - | -40°C ~ 125°C | 300 kHz | 0.394" (10.00mm) |
|
|
LGJ7045TS-100M1R8-HFIXED IND 10UH 1.81A 47 MOHM SMD |
336 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.81 A | 1.8A | - | Shielded | 47mOhm | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
