固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36501E27NJFIXED IND 27NH 400MA 300MOHM SMD |
2,000 | - |
|
数据表 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 400 mA | - | 0402 (1005 Metric) | Unshielded | 300mOhm Max | 27 nH | 24 @ 250MHz | 2.48GHz | Surface Mount | AEC-Q200 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
RLB1314-153KLFIXED IND 15MH 82MA 15 OHM TH |
1,657 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 82 mA | - | - | Unshielded | 15Ohm Max | 15 mH | 70 @ 79.6kHz | 410kHz | Through Hole | - | 0.461" Dia (11.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.512" (13.00mm) |
|
LQH5BPN4R7N38LFIXED IND 4.7UH 3.8A 31.2MOHM SM |
1,621 | - |
|
数据表 |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.8 A | 3.5A | - | Shielded | 31.2mOhm Max | 4.7 µH | - | 17MHz | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 85°C | 100 kHz | 0.157" (4.00mm) |
|
HCM1A1104-6R8-RFIXED IND 6.8UH 6.4A 19MOHM SMD |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 6.4 A | 9A | - | Shielded | 19mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
AH2026A-R05LHFPower Bead 0.05uH 0.27mOhm 70A |
500 | - |
|
数据表 |
AH2026 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 53 A | - | - | Shielded | 0.27mOhm | 50 nH | - | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | - | -55°C ~ 130°C | 500 kHz | 0.260" (6.60mm) |
|
CSBX1265-3R6MSMD HIGH CURRENT POWER INDUCTOR |
363 | - |
|
数据表 |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 17 A | 30A | - | Shielded | 4.85mOhm Max | 3.6 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.256" (6.50mm) |
|
SLC1615B-R01MHF10.0NH, 30%, 0.22MOHM, 80AMP MAX |
1,600 | - |
|
数据表 |
SLC1615 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 25 A | 80A | - | - | 0.22mOhm | 10 nH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -55°C ~ 130°C | 100 kHz | 0.154" (3.90mm) |
|
SL2224A-R055MHFFIXED IND 55NH 50A 0.2 MOHM SMD |
300 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 50 A | - | - | Shielded | 0.2mOhm | 55 nH | - | - | Surface Mount | - | 0.217" L x 0.224" W (5.50mm x 5.70mm) | - | -55°C ~ 130°C | 100 kHz | 0.236" (6.00mm) |
|
SL3732A-R18KHFFIXED IND 180NH 51A 0.29MOHM SMD |
130 | - |
|
数据表 |
SL3732 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 51 A | 47A | - | Shielded | 0.29mOhm | 180 nH | - | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | - | -55°C ~ 130°C | 100 kHz | 0.315" (8.00mm) |
|
|
SL3732A-R10KHFFIXED IND 100NH 51A 0.29MOHM SMD |
130 | - |
|
数据表 |
SL3732 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 51 A | 95A | - | Shielded | 0.29mOhm | 100 nH | - | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | - | -55°C ~ 130°C | 100 kHz | 0.315" (8.00mm) |
|

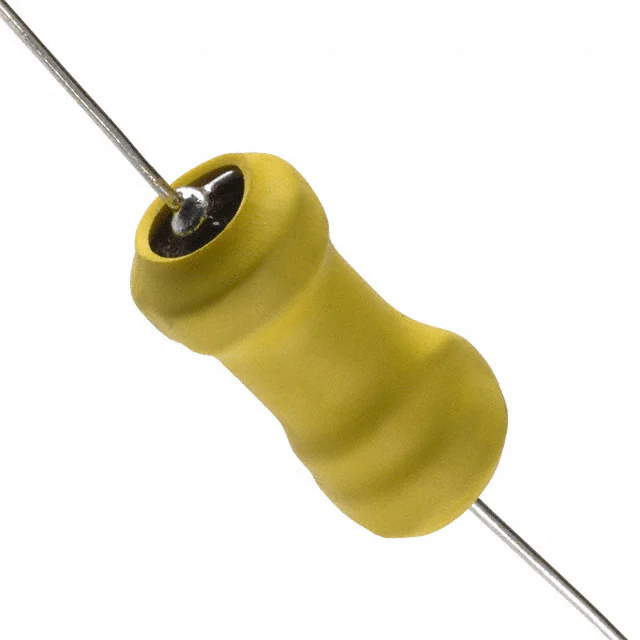

4590R-395KFIXED IND 3.9MH 480MA 2.84OHM TH |
747 | - |
|
数据表 |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 480 mA | 290mA | - | Unshielded | 2.84Ohm Max | 3.9 mH | - | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
HCI1005FQ-12NJ-MS8IND 12NH 0.5OHM 400MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 400 mA | - | 0402 | Unshielded | 500mOhm Max | 12 nH | 8 @ 100MHz | 2.7GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
LGJ7045TS-220M1R3-HFIXED IND 22UH 1.25A 82 MOHM SMD |
2,073 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.25 A | 1.3A | - | Shielded | 82mOhm | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
2217-H-RCFIXED IND 270UH 3.4A 92 MOHM TH |
384 | - |
|
数据表 |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | ±15% | 3.4 A | - | - | Shielded | 92mOhm Max | 270 µH | - | - | Through Hole | - | 0.950" Dia (24.13mm) | - | -55°C ~ 105°C | 1 kHz | 0.550" (13.97mm) |
|
|
HCI1005FQ-43NJ-MS8IND 43NH 1.1OHM 250MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 250 mA | - | 0402 | Unshielded | 1.1Ohm Max | 43 nH | 8 @ 100MHz | 1.1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
|
HCI1005FQ-1N8S-MS8IND 1.8NH 0.08OHM 900MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±0.3nH | 900 mA | - | 0402 | Unshielded | 80mOhm Max | 1.8 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
|
HCI1005FQ-82NJ-MS8IND 82NH 1.6OHM 200MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 200 mA | - | 0402 | Unshielded | 1.6Ohm Max | 82 nH | 8 @ 100MHz | 750MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
|
HCI1005FQ-1N3S-MS8IND 1.3NH 0.07OHM 1000MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±0.3nH | 1 A | - | 0402 | Unshielded | 70mOhm Max | 1.3 nH | 8 @ 100MHz | 10GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
AMDLA1707Q-3R3MTFIXED IND 3.3UH 30A 3.3 MOHM SMD |
169 | - |
|
数据表 |
AMDLA1707Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 30 A | 32A | - | Shielded | 3.3mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.701" L x 0.665" W (17.80mm x 16.90mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
|
HCI1005FQ-3N9S-MS8IND 3.9NH 0.16OHM 700MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±0.3nH | 700 mA | - | 0402 | Unshielded | 160mOhm Max | 3.9 nH | 8 @ 100MHz | 4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) |
