固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

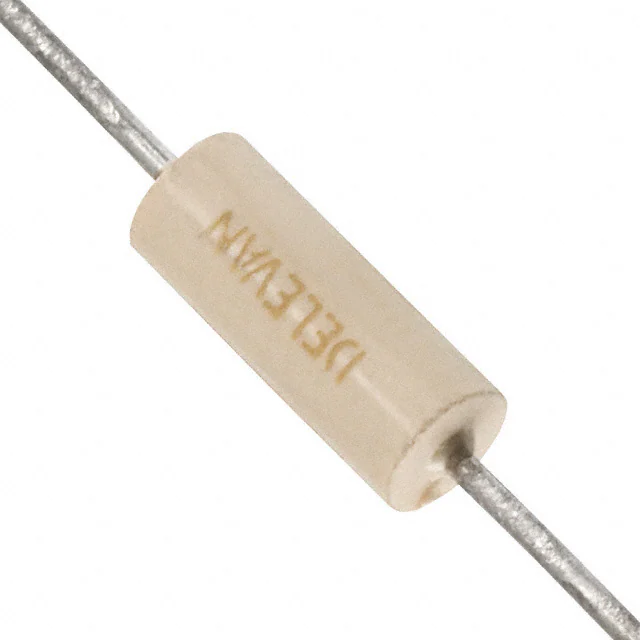

1025-84KFIXED IND 470UH 36MA 42 OHM TH |
652 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS75085 | Axial | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 36 mA | - | - | Unshielded | 42Ohm Max | 470 µH | 30 @ 790kHz | 6MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
HCI1005FQ-4N7S-MS8IND 4.7NH 0.16OHM 700MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±0.3nH | 700 mA | - | 0402 | Unshielded | 160mOhm Max | 4.7 nH | 8 @ 100MHz | 4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
CSBX1265-180MSMD HIGH CURRENT POWER INDUCTOR |
291 | - |
|
数据表 |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 8.5 A | 11.2A | - | Shielded | 17.5mOhm Max | 18 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.256" (6.50mm) |
|
|
HCI1005FQ-9N1J-MS8IND 9.1NH 0.26OHM 500MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 500 mA | - | 0402 | Unshielded | 260mOhm Max | 9.1 nH | 8 @ 100MHz | 3.4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
|
CTX02-14121FIXED IND 16UH |
3,000 | - |
|
数据表 |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | 16 µH | - | - | - | - | - | - | - | - | - |
|
|
HCI1005FQ-10NJ-MS8IND 10NH 0.26OHM 500MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 500 mA | - | 0402 | Unshielded | 260mOhm Max | 10 nH | 8 @ 100MHz | 3.2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
CT262LYF-221KRAD LEADED FIXED INDUCTOR LOW PR |
985 | - |
|
数据表 |
ct262lyf | - | Bulk | Active | - | - | ±10% | - | - | - | - | 3Ohm | 220 µH | - | 4.5GHz | Through Hole | - | - | - | - | - | - |
|
|
HCI1005FQ-27NJ-MS8IND 27NH 0.7OHM 300MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 300 mA | - | 0402 | Unshielded | 700mOhm Max | 27 nH | 8 @ 100MHz | 1.6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
|
DO5022P-104MLDFIXED IND 100UH 1.8A 190MOHM SM |
6,727 | - |
|
数据表 |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.8 A | 3A | - | Unshielded | 190mOhm Max | 100 µH | - | 7MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
DO5022P-333MLDFIXED IND 33UH 3A 66MOHM SM |
5,534 | - |
|
数据表 |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | - | 3 A | 6.1A | - | Unshielded | 66mOhm Max | 33 µH | - | 15MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
DO5022P-224MLDFIXED IND 220UH 1.2A 380MOHM SM |
4,965 | - |
|
数据表 |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.2 A | 2.4A | - | Unshielded | 380mOhm Max | 220 µH | - | 5MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
DO5022P-683MLDFIXED IND 68UH 2.3A 130MOHM SM |
2,787 | - |
|
数据表 |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | - | 2.3 A | 4.1A | - | Unshielded | 130mOhm Max | 68 µH | - | 8MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
DO5022P-684MLDFIXED IND 680UH 720MA 1.1OHM SM |
2,579 | - |
|
数据表 |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 720 mA | 1.2A | - | Unshielded | 1.1Ohm Max | 680 µH | - | 2.5MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
|
DO5022P-154MLDFIXED IND 150UH 1.5A 250MOHM SM |
2,488 | - |
|
数据表 |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.5 A | 2.6A | - | Unshielded | 250mOhm Max | 150 µH | - | 6MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.280" (7.11mm) |
|
IHLE5050FHER3R3M5AFIXED IND 3.3UH 20.2A 5.44 MOHM |
235 | - |
|
数据表 |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 20.2 A | 16.7A | - | Shielded | 5.44mOhm Max | 3.3 µH | - | 17.8MHz | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | - | -55°C ~ 155°C | 100 kHz | 0.268" (6.80mm) |
|
TFM322512ALMA2R2MTAAFIXED IND 2.2UH 2.7A 77MOHM SMD |
10,096 | - |
|
数据表 |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 2.7 A | 3.3A | 1210 (3225 Metric) | Shielded | 77mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 150°C | 1 MHz | 0.047" (1.20mm) |
|
|
HCI1005FQ-68NJ-MS8IND 68NH 1.4OHM 200MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 200 mA | - | 0402 | Unshielded | 1.4Ohm Max | 68 nH | 8 @ 100MHz | 750MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
DRA127-821-RFIXED IND 820UH 637MA 1.54OHM SM |
168 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 637 mA | 1.22A | - | Shielded | 1.54Ohm | 820 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.315" (8.00mm) |
|
BMQADY1010404R7MA1FIXED IND 4.7UH SMD |
9,244 | - |
|
数据表 |
BMQx | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | - | - | - | Shielded | - | 4.7 µH | - | - | Surface Mount | - | 0.445" L x 0.402" W (11.30mm x 10.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
HCI1005FQ-5N6S-MS8IND 5.6NH 0.2OHM 600MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±0.3nH | 600 mA | - | 0402 | Unshielded | 200mOhm Max | 5.6 nH | 8 @ 100MHz | 4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) |
