固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82442T1222M050FIXED IND 2.2UH 2.71A 38MOHM SMD EPCOS - TDK Electronics |
997 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.71 A | 4.82A | 2220 (5650 Metric) | Unshielded | 38mOhm Max | 2.2 µH | 15 @ 7.96MHz | 46MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.209" (5.30mm) |
|
B82472G6474M000FIXED IND 470UH 290MA 2 OHM SMD EPCOS - TDK Electronics |
1,140 | - |
|
数据表 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 290 mA | 250mA | - | Shielded | 2Ohm Max | 470 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
B82562N4154M000FIXED IND 150UH 720MA 480MOHM SM EPCOS - TDK Electronics |
870 | - |
|
数据表 |
CLF6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 720 mA | 650mA | - | Shielded | 480mOhm | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.248" L x 0.236" W (6.30mm x 6.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
B82473A1224K000FIXED IND 220UH 490MA 960MOHM SM EPCOS - TDK Electronics |
588 | - |
|
数据表 |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 490 mA | 550mA | - | Unshielded | 960mOhm Max | 220 µH | - | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.217" (5.50mm) |
|
|
B82442T1153K050FIXED IND 15UH 1.26A 190MOHM SMD EPCOS - TDK Electronics |
265 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.26 A | 1.87A | 2220 (5650 Metric) | Unshielded | 190mOhm Max | 15 µH | 15 @ 2.52MHz | 16MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 125°C | 2.52 MHz | 0.209" (5.30mm) |
|
B82473A1334K000FIXED IND 330UH 400MA 1.26OHM SM EPCOS - TDK Electronics |
864 | - |
|
数据表 |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 400 mA | 450mA | - | Unshielded | 1.26Ohm Max | 330 µH | - | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.217" (5.50mm) |
|
B82472G4153M000FIXED IND 15UH 1.4A 120 MOHM SMD EPCOS - TDK Electronics |
1,112 | - |
|
数据表 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.1A | - | Shielded | 120mOhm Max | 15 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
|
B82472G6473M000FIXED IND 47UH 1A 200 MOHM SMD EPCOS - TDK Electronics |
15,089 | - |
|
数据表 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 900mA | - | Shielded | 200mOhm Max | 47 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
B82472G6332M000FIXED IND 3.3UH 2.85A 23MOHM SMD EPCOS - TDK Electronics |
450 | - |
|
数据表 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.85 A | 2.5A | - | Shielded | 23mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|

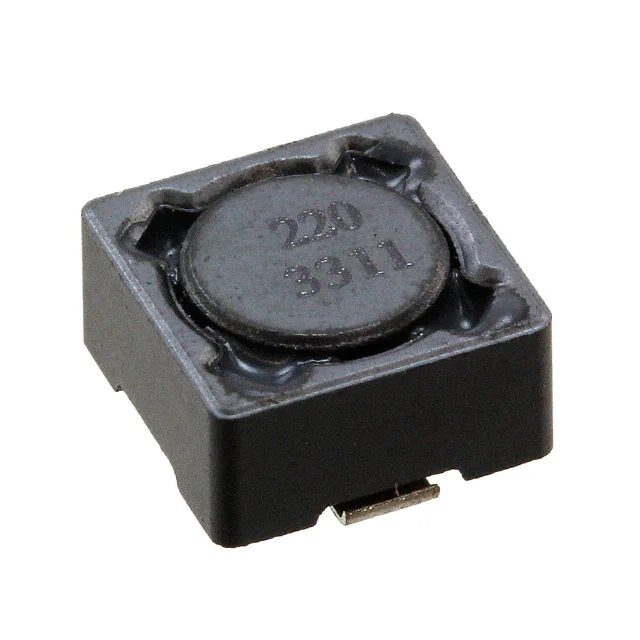

B82472G6223M000FIXED IND 22UH 1.45A 91 MOHM SMD EPCOS - TDK Electronics |
8,859 | - |
|
数据表 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.45 A | 1.3A | - | Shielded | 91mOhm Max | 22 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
