固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82477P2333M000FIXED IND 33UH 2.7A 55 MOHM SMD EPCOS - TDK Electronics |
631 | - |
|
数据表 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.7 A | 2.2A | - | Shielded | 55mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.256" (6.50mm) |
|
B82144F2274J000FIXED IND 270UH 800MA 1.2OHM TH EPCOS - TDK Electronics |
3,645 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 800 mA | 580mA | - | Unshielded | 1.2Ohm Max | 270 µH | 40 @ 79.6kHz | 3.2MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
B82477P4823M000FIXED IND 82UH 2.1A 120 MOHM SMD EPCOS - TDK Electronics |
420 | - |
|
数据表 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.1 A | 2.25A | - | Shielded | 120mOhm Max | 82 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
B82144F2334J000FIXED IND 330UH 700MA 1.53OHM TH EPCOS - TDK Electronics |
3,492 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 700 mA | 520mA | - | Unshielded | 1.53Ohm Max | 330 µH | 40 @ 79.6kHz | 2.8MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
B82144F2394J000FIXED IND 390UH 650MA 1.72OHM TH EPCOS - TDK Electronics |
2,859 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 650 mA | 480mA | - | Unshielded | 1.72Ohm Max | 390 µH | 40 @ 79.6kHz | 2.5MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
B82144F2124J000FIXED IND 120UH 1.1A 0.6OHM TH EPCOS - TDK Electronics |
2,135 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 1.1 A | 850mA | - | Unshielded | 600mOhm Max | 120 µH | 40 @ 79.6kHz | 4.6MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 100 kHz | - |
|

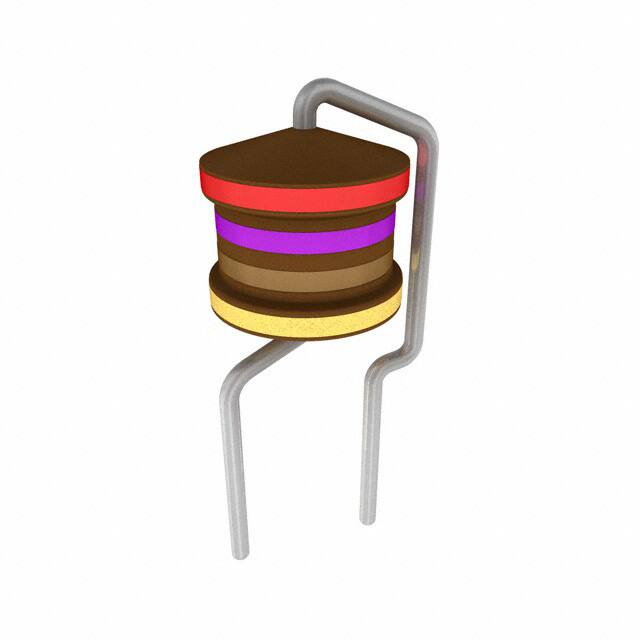

B82144B2274J000FIXED IND 270UH 800MA 1.2 OHM TH EPCOS - TDK Electronics |
6,644 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 800 mA | 580mA | - | Unshielded | 1.2Ohm Max | 270 µH | 40 @ 79.6kHz | 3.2MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
B82144B2334J000FIXED IND 330UH 700MA 1.53OHM TH EPCOS - TDK Electronics |
3,136 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 700 mA | 520mA | - | Unshielded | 1.53Ohm Max | 330 µH | 40 @ 79.6kHz | 2.8MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
B82464D6222M000FIXED IND 2.2UH 6.17A 0.021OHM EPCOS - TDK Electronics |
600 | - |
|
数据表 |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.17 A | 13.85A | - | Shielded | 21mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.248" (6.30mm) |
|
|
B82464D6153M000FIXED IND 15UH 3.09A 0.084OHM SM EPCOS - TDK Electronics |
600 | - |
|
数据表 |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.09 A | 5.2A | - | Shielded | 84mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.248" (6.30mm) |
