固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82473A1683K000FIXED IND 68UH 850MA 280MOHM SMD EPCOS - TDK Electronics |
5,452 | - |
|
数据表 |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 850 mA | 900mA | - | Unshielded | 280mOhm Max | 68 µH | - | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.217" (5.50mm) |
|
B82472G4105M000FIXED IND 1MH 180MA 4.78 OHM SMD EPCOS - TDK Electronics |
18,170 | - |
|
数据表 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 180 mA | 130mA | - | Shielded | 4.78Ohm Max | 1 mH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
B82462A4223K000FIXED IND 22UH 800MA 260MOHM SMD EPCOS - TDK Electronics |
3,092 | - |
|
数据表 |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | 1.28A | - | Unshielded | 260mOhm Max | 22 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
|
B82472G4222M000FIXED IND 2.2UH 2.9A 25 MOHM SMD EPCOS - TDK Electronics |
2,068 | - |
|
数据表 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.9 A | 2.2A | - | Shielded | 25mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
B82442T1332K000FIXED IND 3.3UH 2.46A 46MOHM SMD EPCOS - TDK Electronics |
902 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.46 A | 5.2A | - | Unshielded | 46mOhm Max | 3.3 µH | 15 @ 7.96MHz | 36MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 7.96 MHz | 0.209" (5.30mm) |
|

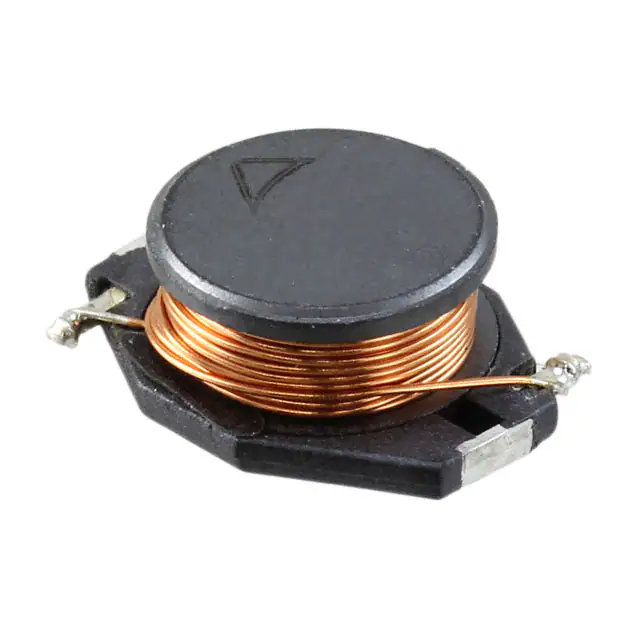

B82476B1334M100FIXED IND 330UH 650MA 810MOHM SM EPCOS - TDK Electronics |
319 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 650 mA | 600mA | - | Unshielded | 810mOhm Max | 330 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
B82471A1104K000FIXED IND 100UH 520MA 700MOHM SM EPCOS - TDK Electronics |
1,975 | - |
|
数据表 |
B82471A1 | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±10% | 520 mA | 600mA | - | Unshielded | 700mOhm Max | 100 µH | - | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.193" (4.90mm) |
|
B82476B1472M100FIXED IND 4.7UH 5.3A 16.5MOHM SM EPCOS - TDK Electronics |
3,964 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5.3 A | 5.4A | - | Unshielded | 16.5mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
B82476B1103M100FIXED IND 10UH 4.3A 27 MOHM SMD EPCOS - TDK Electronics |
2,228 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.3 A | 3.8A | - | Unshielded | 27mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
|
B82476B1104M100FIXED IND 100UH 1.4A 230MOHM SMD EPCOS - TDK Electronics |
716 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.2A | - | Unshielded | 230mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
