固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82498F3689K000FIXED IND 6.8NH 800MA 50MOHM SMD EPCOS - TDK Electronics |
6,456 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 800 mA | - | 0805 (2012 Metric) | Unshielded | 50mOhm Max | 6.8 nH | 50 @ 1GHz | 6GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 250 MHz | 0.055" (1.40mm) |
|
B82498F3181J001FIXED IND 180NH 340MA 530MOHM SM EPCOS - TDK Electronics |
5,778 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 340 mA | - | 0805 (2012 Metric) | Unshielded | 530mOhm Max | 180 nH | 45 @ 250MHz | 1.05GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 100 MHz | 0.055" (1.40mm) |
|
B82144A2225J000FIXED IND 2.2MH 120MA 9 OHM TH EPCOS - TDK Electronics |
4,364 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 120 mA | - | - | Unshielded | 9Ohm Max | 2.2 mH | 60 @ 252kHz | 800kHz | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
B82144F2123K000FIXED IND 12UH 2.4A 0.13OHM TH EPCOS - TDK Electronics |
3,877 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.4 A | 2.65A | - | Unshielded | 130mOhm Max | 12 µH | 40 @ 252kHz | 20MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 100 kHz | - |
|

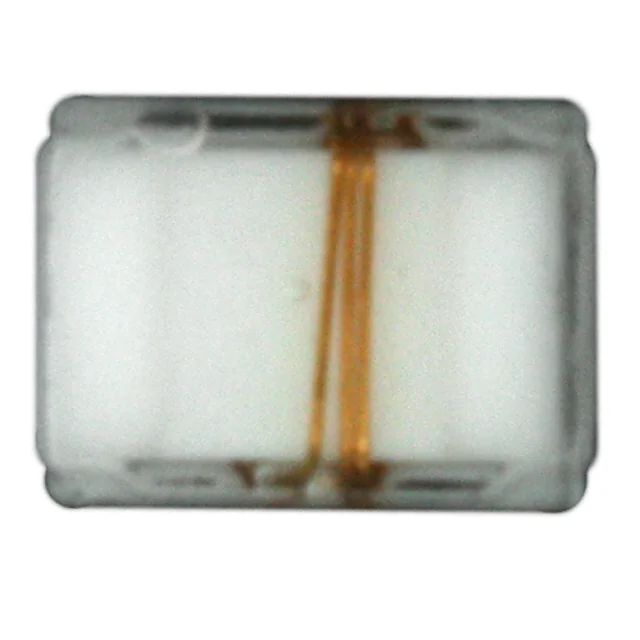

B82498F3150J000FIXED IND 15NH 650MA 130MOHM SMD EPCOS - TDK Electronics |
3,854 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 650 mA | - | 0805 (2012 Metric) | Unshielded | 130mOhm Max | 15 nH | 50 @ 500MHz | 3.3GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 250 MHz | 0.055" (1.40mm) |
.jpg)
|
B82422H1224J000FIXED IND 220UH 100MA 10.9OHM SM EPCOS - TDK Electronics |
3,738 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 100 mA | - | 1210 (3225 Metric) | Unshielded | 10.9Ohm Max | 220 µH | 20 @ 796kHz | 5.5MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 150°C | 796 kHz | 0.094" (2.40mm) |
|
B82472G6334M000FIXED IND 330UH 330MA 1.7OHM SMD EPCOS - TDK Electronics |
1,000 | - |
|
数据表 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 330 mA | 300mA | - | Shielded | 1.7Ohm Max | 330 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
B82498F3121J000FIXED IND 120NH 440MA 310MOHM SM EPCOS - TDK Electronics |
2,484 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 440 mA | - | 0805 (2012 Metric) | Unshielded | 310mOhm Max | 120 nH | 50 @ 250MHz | 1.25GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 150 MHz | 0.055" (1.40mm) |
|
B82144F2393J000FIXED IND 39UH 1.75A 0.25OHM TH EPCOS - TDK Electronics |
1,218 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 1.75 A | 1.5A | - | Unshielded | 250mOhm Max | 39 µH | 40 @ 252kHz | 8.5MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
B82498F3120J000FIXED IND 12NH 700MA 90 MOHM SMD EPCOS - TDK Electronics |
5,557 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 0805 (2012 Metric) | Unshielded | 90mOhm Max | 12 nH | 50 @ 500MHz | 4GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 250 MHz | 0.055" (1.40mm) |
