固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82144B2272K000FIXED IND 2.7UH 3.55A 60 MOHM TH EPCOS - TDK Electronics |
983 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.55 A | 5.4A | - | Unshielded | 60mOhm Max | 2.7 µH | 60 @ 2.52MHz | 120MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.551" (14.00mm) |
|
B82144B2682K000FIXED IND 6.8UH 2.75A 95 MOHM TH EPCOS - TDK Electronics |
648 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.75 A | 3.5A | - | Unshielded | 95mOhm Max | 6.8 µH | 50 @ 2.52MHz | 40MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.551" (14.00mm) |
.jpg)
|
B82422A3330K100FIXED IND 33NH 540MA 170MOHM SMD EPCOS - TDK Electronics |
11,960 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 540 mA | - | 1210 (3225 Metric) | Unshielded | 170mOhm Max | 33 nH | 20 @ 50MHz | 1.7GHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 10 MHz | 0.083" (2.10mm) |
|
|
B82422A1562J100FIXED IND 5.6UH 140MA 2.6OHM SMD EPCOS - TDK Electronics |
7,507 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 140 mA | - | 1210 (3225 Metric) | Unshielded | 2.6Ohm Max | 5.6 µH | 27 @ 7.96MHz | 100MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|

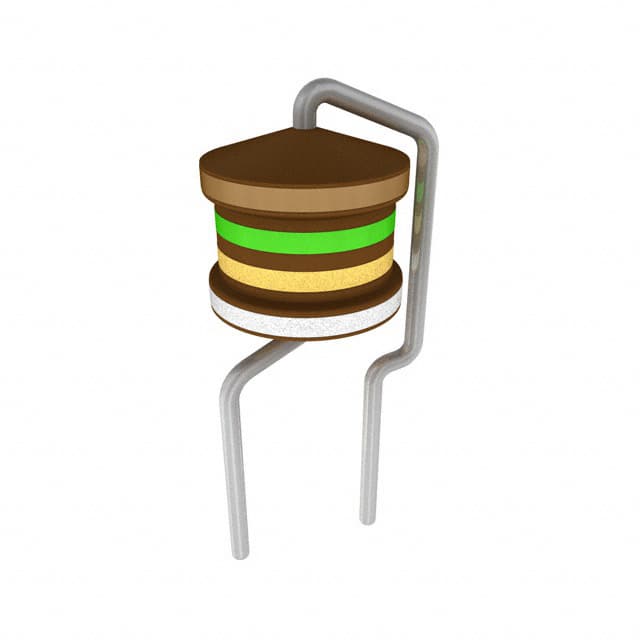

B82144B2152K000FIXED IND 1.5UH 4.1A 45 MOHM TH EPCOS - TDK Electronics |
157 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 4.1 A | 7.2A | - | Unshielded | 45mOhm Max | 1.5 µH | 60 @ 2.52MHz | 170MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.551" (14.00mm) |
|
|
B82422A1563K100FIXED IND 56UH 85MA 6.75 OHM SMD EPCOS - TDK Electronics |
6,384 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 85 mA | - | 1210 (3225 Metric) | Unshielded | 6.75Ohm Max | 56 µH | 27 @ 2.52MHz | 9MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
B82422A1123K100FIXED IND 12UH 175MA 1.65OHM SMD EPCOS - TDK Electronics |
5,928 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 175 mA | - | 1210 (3225 Metric) | Unshielded | 1.65Ohm Max | 12 µH | 27 @ 2.52MHz | 23MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
B82422A1182K100FIXED IND 1.8UH 290MA 600MOHM SM EPCOS - TDK Electronics |
5,100 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 290 mA | - | 1210 (3225 Metric) | Unshielded | 600mOhm Max | 1.8 µH | 25 @ 7.96MHz | 250MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
B82422A1222J100FIXED IND 2.2UH 270MA 750MOHM SM EPCOS - TDK Electronics |
4,491 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 270 mA | - | 1210 (3225 Metric) | Unshielded | 750mOhm Max | 2.2 µH | 25 @ 7.96MHz | 125MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
B82422A1273K100FIXED IND 27UH 120MA 3.7 OHM SMD EPCOS - TDK Electronics |
4,250 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 120 mA | - | 1210 (3225 Metric) | Unshielded | 3.7Ohm Max | 27 µH | 27 @ 2.52MHz | 15MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
