固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422A1683K100FIXED IND 68UH 80MA 7.7 OHM SMD EPCOS - TDK Electronics |
5,482 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 80 mA | - | 1210 (3225 Metric) | Unshielded | 7.7Ohm Max | 68 µH | 27 @ 2.52MHz | 9MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
B82144B2473J000FIXED IND 47UH 1.7A 270 MOHM TH EPCOS - TDK Electronics |
501 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 1.7 A | 1.4A | - | Unshielded | 270mOhm Max | 47 µH | 40 @ 252kHz | 7.5MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
B82144F2682K000FIXED IND 6.8UH 2.75A 0.095OHM EPCOS - TDK Electronics |
393 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.75 A | 3.5A | - | Unshielded | 95mOhm Max | 6.8 µH | 50 @ 2.52MHz | 40MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
B82144B2224J000FIXED IND 220UH 900MA 1.01OHM TH EPCOS - TDK Electronics |
1,967 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 900 mA | 650mA | - | Unshielded | 1.01Ohm Max | 220 µH | 40 @ 79.6kHz | 3.6MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
B82144B2124J000FIXED IND 120UH 1.1A 600 MOHM TH EPCOS - TDK Electronics |
556 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 1.1 A | 850mA | - | Unshielded | 600mOhm Max | 120 µH | 40 @ 79.6kHz | 4.6MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|

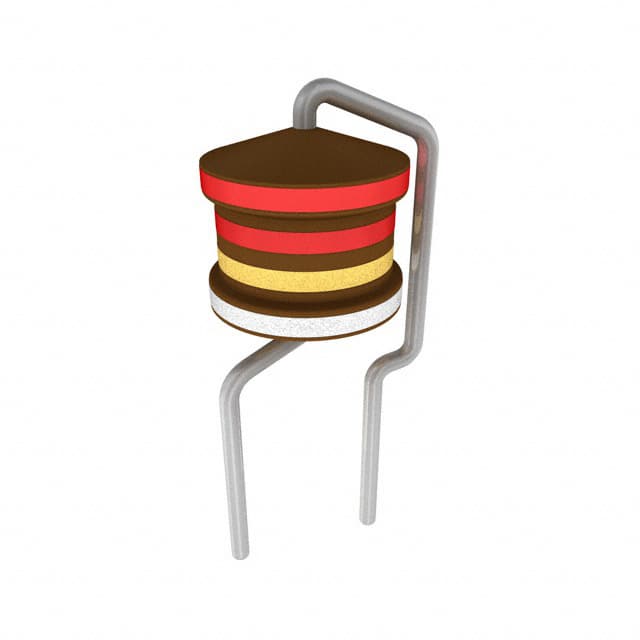

B82144B2222K000FIXED IND 2.2UH 3.65A 55 MOHM TH EPCOS - TDK Electronics |
643 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.65 A | 6A | - | Unshielded | 55mOhm Max | 2.2 µH | 60 @ 2.52MHz | 140MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.551" (14.00mm) |
|
B82144F2332K000FIXED IND 3.3UH 3.5A 0.065OHM TH EPCOS - TDK Electronics |
590 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.5 A | 5A | - | Unshielded | 65mOhm Max | 3.3 µH | 60 @ 2.52MHz | 100MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
|
B82422A1103J100FIXED IND 10UH 180MA 1.6 OHM SMD EPCOS - TDK Electronics |
7,657 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 180 mA | - | 1210 (3225 Metric) | Unshielded | 1.6Ohm Max | 10 µH | 27 @ 2.52MHz | 25MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
B82422A3471K100FIXED IND 470NH 150MA 2.2OHM SMD EPCOS - TDK Electronics |
5,327 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 150 mA | - | 1210 (3225 Metric) | Unshielded | 2.2Ohm Max | 470 nH | 22 @ 30MHz | 480MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|

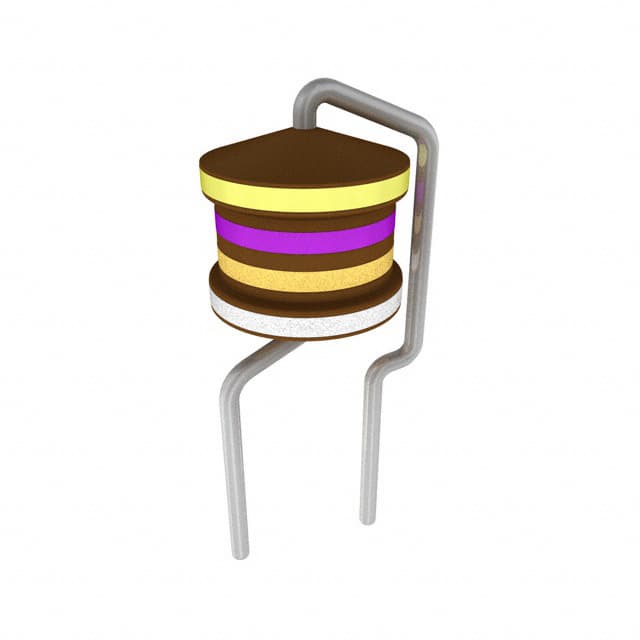

B82144B2472K000FIXED IND 4.7UH 3.05A 80 MOHM TH EPCOS - TDK Electronics |
657 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.05 A | 4A | - | Unshielded | 80mOhm Max | 4.7 µH | 50 @ 2.52MHz | 70MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.551" (14.00mm) |
