固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422T3101K000FIXED IND 100NH 450MA 310MOHM SM EPCOS - TDK Electronics |
4,285 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 450 mA | - | 1210 (3225 Metric) | Unshielded | 310mOhm Max | 100 nH | 28 @ 100MHz | 900MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.083" (2.10mm) |
|
|
B82422T1104K000FIXED IND 100UH 60MA 11 OHM SMD EPCOS - TDK Electronics |
3,429 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 60 mA | - | 1210 (3225 Metric) | Unshielded | 11Ohm Max | 100 µH | 20 @ 796kHz | 8MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 796 kHz | 0.083" (2.10mm) |
|
B82498F3829K000FIXED IND 8.2NH 700MA 90MOHM SMD EPCOS - TDK Electronics |
504 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 700 mA | - | 0805 (2012 Metric) | Unshielded | 90mOhm Max | 8.2 nH | 50 @ 1GHz | 5GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 250 MHz | 0.055" (1.40mm) |
|
B82496C3151J000FIXED IND 150NH 130MA 5 OHM SMD EPCOS - TDK Electronics |
14,052 | - |
|
数据表 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 130 mA | - | 0603 (1608 Metric) | Unshielded | 5Ohm Max | 150 nH | 5 @ 25.2MHz | 1.6GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 150°C | 25.2 MHz | 0.035" (0.90mm) |
|
|
B82422A1682K100FIXED IND 6.8UH 135MA 2.8OHM SMD EPCOS - TDK Electronics |
10,831 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 135 mA | - | 1210 (3225 Metric) | Unshielded | 2.8Ohm Max | 6.8 µH | 27 @ 7.96MHz | 90MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
B82422A1562K100FIXED IND 5.6UH 140MA 2.6OHM SMD EPCOS - TDK Electronics |
5,600 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 140 mA | - | 1210 (3225 Metric) | Unshielded | 2.6Ohm Max | 5.6 µH | 27 @ 7.96MHz | 100MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|

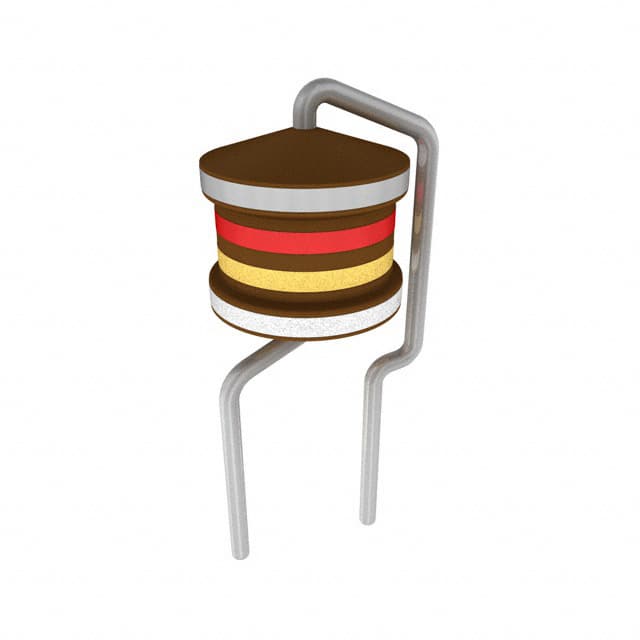

B82144B2822K000FIXED IND 8.2UH 2.65A 105MOHM TH EPCOS - TDK Electronics |
900 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.65 A | 3.1A | - | Unshielded | 105mOhm Max | 8.2 µH | 40 @ 252kHz | 28MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.551" (14.00mm) |
|
|
B82496C3109Z000FIXED IND 1NH 1.8A 20 MOHM SMD EPCOS - TDK Electronics |
5,335 | - |
|
数据表 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±0.2nH | 1.8 A | - | 0603 (1608 Metric) | Unshielded | 20mOhm Max | 1 nH | 7 @ 100MHz | 16GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 150°C | 100 MHz | 0.035" (0.90mm) |
|
|
B82422A1822K100FIXED IND 8.2UH 130MA 3 OHM SMD EPCOS - TDK Electronics |
5,082 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 130 mA | - | 1210 (3225 Metric) | Unshielded | 3Ohm Max | 8.2 µH | 27 @ 7.96MHz | 90MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
B82422A3150K100FIXED IND 15NH 640MA 120MOHM SMD EPCOS - TDK Electronics |
4,239 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 640 mA | - | 1210 (3225 Metric) | Unshielded | 120mOhm Max | 15 nH | 27 @ 100MHz | 3GHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 10 MHz | 0.083" (2.10mm) |
