固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

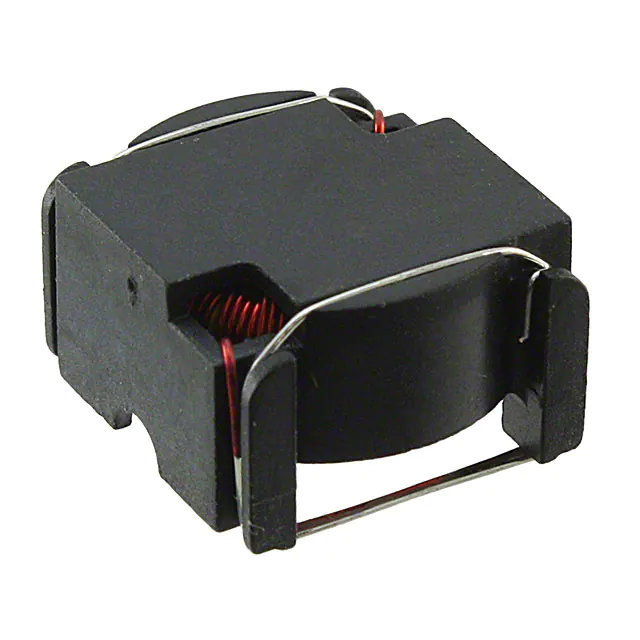

PE-53826SNLFIXED IND 377UH 680MA 1 OHM SMD |
880 | - |
|
数据表 |
- | Nonstandard | Bulk | Active | Toroidal | - | ±20% | 680 mA | - | - | Shielded | 1Ohm | 377 µH | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | - | -40°C ~ 130°C | - | 0.390" (9.91mm) |
|
1537-44KFIXED IND 22UH 202MA 2.5 OHM TH |
373 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS14046 | Axial | Tape & Reel (TR) | Active | - | Iron | ±10% | 202 mA | - | - | Unshielded | 2.5Ohm Max | 22 µH | 75 @ 2.5MHz | 30MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
PD0120.223NLFIXED IND 23.1UH 5.3A 35.5 MOHM |
1,070 | - |
|
数据表 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | ±10% | 5.3 A | 6.8A | - | Unshielded | 35.5mOhm Max | 23.1 µH | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | - | -40°C ~ 125°C | - | 0.323" (8.20mm) |
|
|
PD0120.183NLFIXED IND 18.7UH 6.4A 25.5 MOHM |
1,066 | - |
|
数据表 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | ±10% | 6.4 A | 7.6A | - | Unshielded | 25.5mOhm Max | 18.7 µH | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | - | -40°C ~ 125°C | - | 0.323" (8.20mm) |
|
MSS1260-124KLDFIXED IND 120UH 1.85A 195MOHM SM |
1,149 | - |
|
数据表 |
MSS1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±10% | 1.85 A | 1.7A | - | Shielded | 195mOhm Max | 120 µH | - | 6.8MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.244" (6.20mm) |
|
|
MSS1260-332NLDFIXED IND 3.3UH 7A 14MOHM SM |
1,061 | - |
|
数据表 |
MSS1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±30% | 7 A | 10.4A | - | Shielded | 14mOhm Max | 3.3 µH | - | 42MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.244" (6.20mm) |
|
|
MSS1260-184KLDFIXED IND 180UH 1.58A 246MOHM SM |
693 | - |
|
数据表 |
MSS1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±10% | 1.58 A | 1.4A | - | Shielded | 246mOhm Max | 180 µH | - | 6.1MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.244" (6.20mm) |
|
|
XFL4020-472MECFIXED IND 4.7UH 5A 57.4MOHM SM |
59,102 | - |
|
数据表 |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 5 A | 2.7A | 1616 | Shielded | 57.4mOhm Max | 4.7 µH | - | 26MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
XFL4020-102MECFIXED IND 1UH 11A 11.9MOHM SM |
56,942 | - |
|
数据表 |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 11 A | 5.4A | 1616 | Shielded | 11.9mOhm Max | 1 µH | - | 64MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
XFL4020-152MECFIXED IND 1.5UH 9.1A 15.8MOHM SM |
50,914 | - |
|
数据表 |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 9.1 A | 4.6A | 1616 | Shielded | 15.8mOhm Max | 1.5 µH | - | 59MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
SDCL0603Q0N8BT02B03FIXED IND 0.8NH 800MA 70MOHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 800 mA | - | 0201 | Unshielded | 70mOhm Max | 0.8 nH | 13 @ 500MHz | 18GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
XFL4020-121MECFIXED IND 120NH 22A 1.6MOHM SM |
40,376 | - |
|
数据表 |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 22 A | 13.7A | 1616 | Shielded | 1.6mOhm Max | 120 nH | - | 210MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
XFL4020-222MECFIXED IND 2.2UH 8A 23.5MOHM SM |
14,303 | - |
|
数据表 |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 8 A | 3.7A | 1616 | Shielded | 23.5mOhm Max | 2.2 µH | - | 38MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
MDWK4040T4R7MMFIXED IND 4.7UH 2.5A 107MOHM SMD |
2,392 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.5 A | 5A | - | Shielded | 107mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.079" (2.00mm) |
|
|
XFL4020-561MECFIXED IND 560NH 13A 6.15MOHM SM |
1,920 | - |
|
数据表 |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 13 A | 6.3A | 1616 | Shielded | 6.15mOhm Max | 560 nH | - | 78MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
XFL4020-471MECFIXED IND 470NH 17A 5.1MOHM SM |
1,907 | - |
|
数据表 |
XFL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 17 A | 7.5A | 1616 | Shielded | 5.1mOhm Max | 470 nH | - | 83MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
TFM201210ALMA1R0MTAAINDUCTORS FOR POWER CIRCUITS, AU |
1,933 | - |
|
数据表 |
TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 2.2 A | 2.7A | 0805 | Shielded | 81mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Soft Termination | -55°C ~ 150°C | 1 MHz | 0.039" (1.00mm) |
|
VLS3012HBX-1R0M-NINDUCTORS FOR POWER CIRCUITS, WO |
1,650 | - |
|
数据表 |
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 4.62 A | 5A | 1212 | Shielded | 47mOhm Max | 1 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
PA4332.682NLTFIXED IND 6.8UH 2.4A 156MOHM SMD |
1,233 | - |
|
数据表 |
PA4332.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 2.4 A | 3A | - | Shielded | 156mOhm Max | 6.8 µH | - | 13MHz | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | - | -40°C ~ 125°C | 1 MHz | 0.079" (2.00mm) |
|
VLS3012HBX-150MFIXED IND 15UH 1.23A 636MOHM SMD |
91,658 | - |
|
数据表 |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.23 A | 1.37A | - | Shielded | 636mOhm Max | 15 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
