固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCI1608F-68NMIND 0.068UH 0.3OHM 50MA |
0 | - |
|
数据表 |
FCI1608F | 0603 (1608 Metric) | Active | Multilayer | Ferrite | ±20% | 50 mA | - | 0603 | Unshielded | 300mOhm Max | 68 nH | 10 @ 50MHz | 250MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 50 MHz | 0.037" (0.95mm) | |
|
|
FCI1608F-R18MIND 0.18UH 0.6OHM 50MA |
0 | - |
|
数据表 |
FCI1608F | 0603 (1608 Metric) | Active | Multilayer | Ferrite | ±20% | 50 mA | - | 0603 | Unshielded | 600mOhm Max | 180 nH | 15 @ 25MHz | 165MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 105°C | 25 MHz | 0.037" (0.95mm) | |
|
PD0120.702NLFIXED IND 7.2UH 8.6A 10 MOHM SMD |
1,045 | - |
|
数据表 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | ±10% | 8.6 A | 12.6A | - | Unshielded | 10mOhm Max | 7.2 µH | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | - | -40°C ~ 125°C | - | 0.323" (8.20mm) |
|
FP3-1R0-RFIXED IND 1UH 6.26A 11.2MOHM SMD |
2,094 | - |
|
数据表 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±15% | 6.26 A | 9.5A | - | Unshielded | 11.2mOhm Max | 1 µH | - | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|

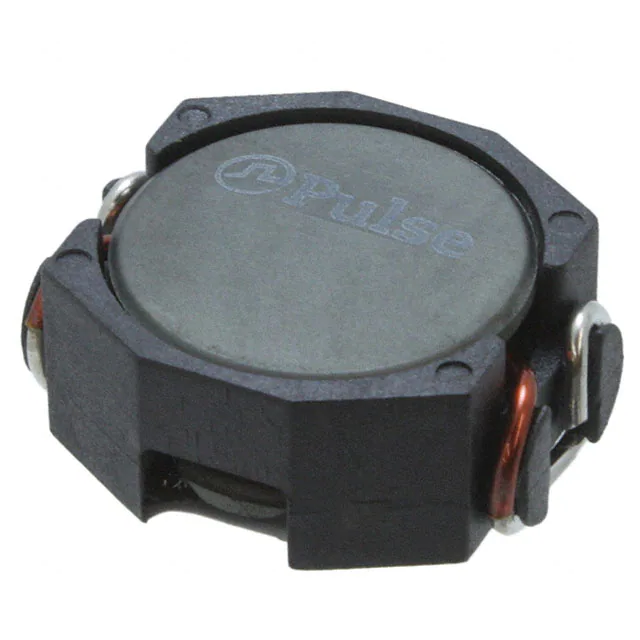

PB2020.153NLTFIXED IND 15UH 9.7A 13 MOHM SMD |
1,100 | - |
|
数据表 |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 9.7 A | 18A | - | Unshielded | 13mOhm Max | 15 µH | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | - | -40°C ~ 130°C | - | 0.400" (10.16mm) |
|
HCP0805-1R5-RFIXED IND 1.5UH 13.3A 6.8MOHM SM |
400 | - |
|
数据表 |
HCP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 13.3 A | 18A | - | Shielded | 6.8mOhm | 1.5 µH | - | - | Surface Mount | - | 0.303" L x 0.291" W (7.70mm x 7.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
744310055FIXED IND 520NH 14A 3.7 MOHM SMD |
3,059 | - |
|
数据表 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 14 A | 20A | 7030 | Shielded | 3.7mOhm | 520 nH | - | 140MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | - | -40°C ~ 150°C | 100 kHz | 0.130" (3.30mm) |
|
DRA124-102-RFIXED IND 1MH 380MA 2.94 OHM SMD |
984 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 380 mA | 629mA | - | Shielded | 2.94Ohm | 1 mH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.177" (4.50mm) |
|

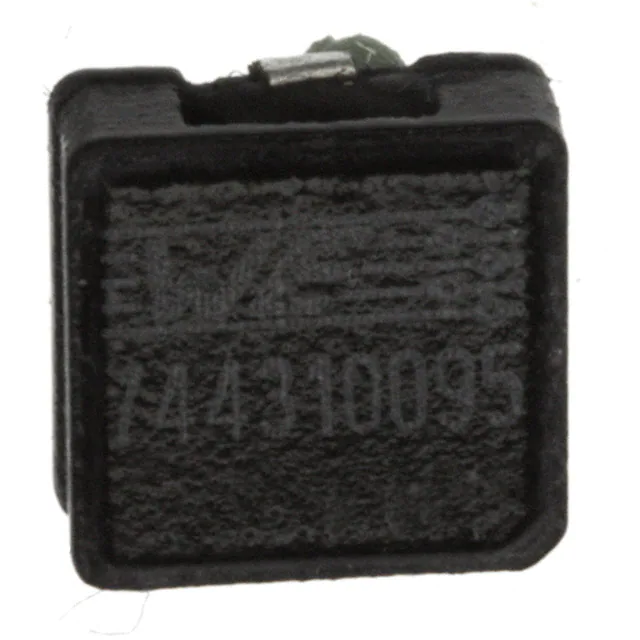

744310095FIXED IND 950NH 11A 6.2 MOHM SMD |
173 | - |
|
数据表 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 11 A | 13A | 7030 | Shielded | 6.2mOhm | 950 nH | - | 90MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | - | -40°C ~ 150°C | 100 kHz | 0.130" (3.30mm) |
|
P1812-183KFIXED IND 18UH 400MA 875MOHM SMD |
562 | - |
|
数据表 |
P1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 400 mA | 614mA | 1812 | Unshielded | 875mOhm Max | 18 µH | - | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 1 kHz | 0.134" (3.40mm) |
|

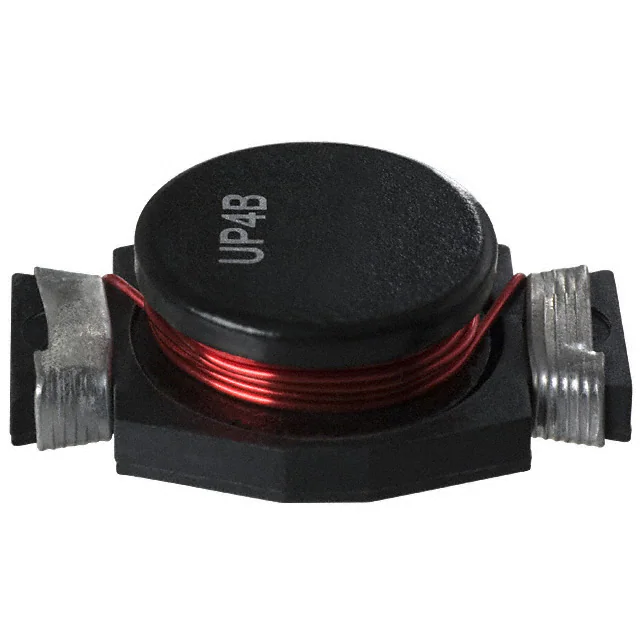

UP4B-221-RFIXED IND 220UH 1.4A 357.1 MOHM |
4,135 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 2.4A | - | Unshielded | 357.1mOhm Max | 220 µH | - | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.310" (7.87mm) |
|
2474R-20LFIXED IND 39UH 2.05A 84 MOHM TH |
3,023 | - |
|
数据表 |
2474R | Axial | Bulk | Active | Molded | Ferrite | ±15% | 2.05 A | 1A | - | Unshielded | 84mOhm Max | 39 µH | - | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
FP1012V2-R120-RIND FLAT PAC 120NH 105A2 PADS |
250 | - |
|
数据表 |
FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 84 A | 105A | - | Unshielded | 138mOhm Max | 120 nH | - | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.472" (12.00mm) |
|
|
PB2020.332NLFIXED IND 3.3UH 18.3A 3.9MOHM SM |
1,010 | - |
|
数据表 |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | ±20% | 18.3 A | 35A | - | Unshielded | 3.9mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | - | -40°C ~ 130°C | - | 0.400" (10.16mm) |
|
|
PB2020.103NLTFIXED IND 10UH 12.6A 7.8MOHM SMD |
697 | - |
|
数据表 |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 12.6 A | 20A | - | Unshielded | 7.8mOhm Max | 10 µH | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | - | -40°C ~ 130°C | - | 0.400" (10.16mm) |
|

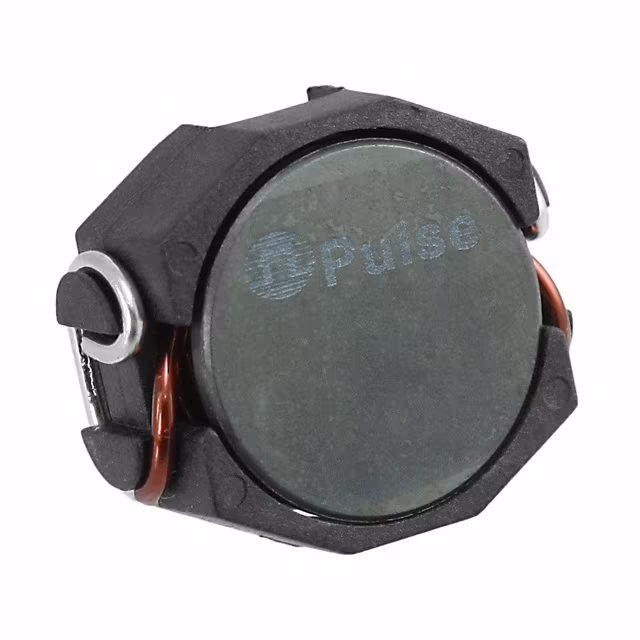

PB2020.103NLFIXED IND 10UH 12.6A 7.8MOHM SMD |
517 | - |
|
数据表 |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | ±20% | 12.6 A | 20A | - | Unshielded | 7.8mOhm Max | 10 µH | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | - | -40°C ~ 130°C | - | 0.400" (10.16mm) |
|
PH9499.951CNLTINDUCTOR 0.95UH 3.5A ER11 SMD |
400 | - |
|
数据表 |
PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±6% | 3.5 A | 28A | - | Unshielded | 22mOhm Max | 950 nH | - | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | - | -40°C ~ 125°C | 100 kHz | 0.299" (7.60mm) |
|
|
PH9499.122CNLTINDUCTOR 1.25UH 3.5A ER11 SMD |
400 | - |
|
数据表 |
PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±6% | 3.5 A | 22A | - | Unshielded | 22mOhm Max | 1.25 µH | - | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | - | -40°C ~ 125°C | 100 kHz | 0.299" (7.60mm) |
|
|
WTX0420TR33MTR01FIXED IND 0.3320%UH 0.003OHM 181 |
1,093 | - |
|
数据表 |
WT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 19.9 A | 15.7A | 1616 | Unshielded | 3.2mOhm Max | 330 nH | - | 79MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -55°C ~ 155°C | 1 MHz | 0.083" (2.10mm) |
|
|
UP4B-220-RFIXED IND 22UH 4.5A 34 MOHM SMD |
105 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.5 A | 7.6A | - | Unshielded | 34mOhm Max | 22 µH | - | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.310" (7.87mm) |
