固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCL0603Q1N8BT02B03FIXED IND 1.8NH 600MA 150MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 600 mA | - | 0201 | Unshielded | 150mOhm Max | 1.8 nH | 13 @ 500MHz | 15GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
MSS1260-104MLDFIXED IND 100UH 2.1A 146MOHM SM |
4,712 | - |
|
数据表 |
MSS1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 2.1 A | 1.88A | - | Shielded | 146mOhm | 100 µH | - | 7.8MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.244" (6.20mm) |
|
|
SDCL0603Q3N7CT02B03FIXED IND 3.7NH 400MA 300MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 400 mA | - | 0201 | Unshielded | 300mOhm Max | 3.7 nH | 13 @ 500MHz | 7.6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q1N7CT02B03FIXED IND 1.7NH 600MA 150MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 600 mA | - | 0201 | Unshielded | 150mOhm Max | 1.7 nH | 13 @ 500MHz | 15GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q39NJT02B03FIXED IND 39NH 120MA 2.3 OHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 120 mA | - | 0201 | Unshielded | 2.3Ohm Max | 39 nH | 11 @ 300MHz | 1.6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 300 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q3N3BT02B03FIXED IND 3.3NH 450MA 250MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 450 mA | - | 0201 | Unshielded | 250mOhm Max | 3.3 nH | 13 @ 500MHz | 8.1GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q3N3CT02B03FIXED IND 3.3NH 450MA 250MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 450 mA | - | 0201 | Unshielded | 250mOhm Max | 3.3 nH | 13 @ 500MHz | 8.1GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q1N9CT02B03FIXED IND 1.9NH 600MA 150MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 600 mA | - | 0201 | Unshielded | 150mOhm Max | 1.9 nH | 13 @ 500MHz | 12.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q2N7CT02B03FIXED IND 2.7NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 500 mA | - | 0201 | Unshielded | 200mOhm Max | 2.7 nH | 13 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q1N6BT02B03FIXED IND 1.6NH 600MA 130MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 600 mA | - | 0201 | Unshielded | 130mOhm Max | 1.6 nH | 13 @ 500MHz | 15GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
MPCG1040LR45FIXED IND 450NH 25A 1.1 MOHM SMD |
2,133 | - |
|
数据表 |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 25 A | 27A | - | Shielded | 1.1mOhm Max | 450 nH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
.jpg)
|
DFE322512F-1R5M=P2FIXED IND 1.5UH 3A 48 MOHM SMD |
3,619 | - |
|
数据表 |
DFE322512F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 3 A | 3.9A | 1210 | Shielded | 48mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
.jpg)
|
B82422H1153J000FIXED IND 15UH 390MA 720MOHM SMD |
3,335 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 390 mA | - | 1210 (3225 Metric) | Unshielded | 720mOhm Max | 15 µH | 12 @ 2.52MHz | 26MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 150°C | 2.52 MHz | 0.094" (2.40mm) |
|
|
DFE322512F-R68M=P2FIXED IND |
2,431 | - |
|
数据表 |
DFE18SBN | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 4.4 A | 6.1A | 1210 | Shielded | 26mOhm Max | 680 nH | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
SRN6045TA-2R2YFIXED IND 2.2UH 6A 15 MOHM SMD |
2,296 | - |
|
数据表 |
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 6 A | 9.5A | - | Shielded | 15mOhm | 2.2 µH | 15 @ 1MHz | 55MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.177" (4.50mm) |
|
TFM252012ALVA3R3MTAAFIXED IND 3.3UH 2A 140 MOHM SMD |
2,229 | - |
|
数据表 |
TFM-ALVA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 2 A | 2.1A | 1008 (2520 Metric) | Shielded | 140mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 150°C | 1 MHz | 0.047" (1.20mm) |
|

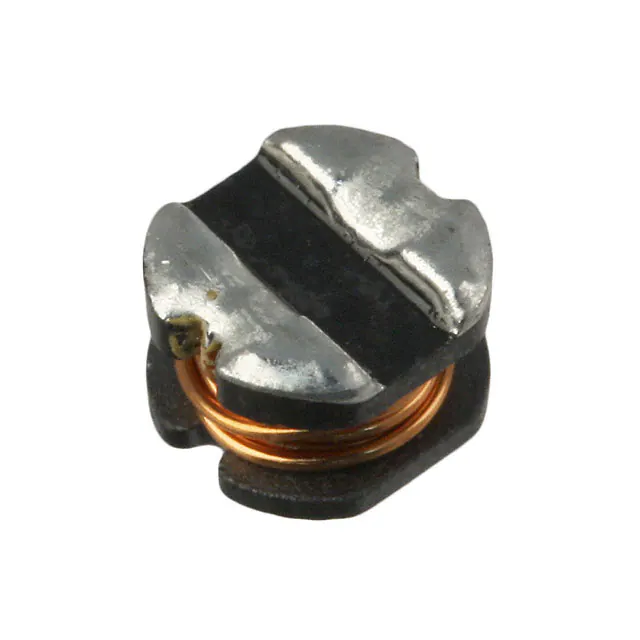

SDR0403-3R3MLFIXED IND 3.3UH 2.15A 58MOHM SMD |
2,000 | - |
|
数据表 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.15 A | 3A | - | Unshielded | 58mOhm Max | 3.3 µH | 28 @ 7.96MHz | 65MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
|
|
SRN6045TA-820MFIXED IND 82UH 980MA 365MOHM SMD |
2,000 | - |
|
数据表 |
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 980 mA | 1.5A | - | Shielded | 365mOhm | 82 µH | 15 @ 1MHz | 9MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.177" (4.50mm) |
|
|
MSS1260-334KLDFIXED IND 330UH 1.16A 494MOHM SM |
4,269 | - |
|
数据表 |
MSS1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±10% | 1.16 A | 1A | - | Shielded | 494mOhm | 330 µH | - | 4MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.244" (6.20mm) |
|
|
DFE322512F-2R2M=P2FIXED IND 2.2UH 2.6A 66MOHM SMD |
1,934 | - |
|
数据表 |
DFE322512F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.6 A | 3.4A | 1210 | Shielded | 66mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
