固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCL0603Q1N8CT02B03FIXED IND 1.8NH 600MA 150MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 600 mA | - | 0201 | Unshielded | 150mOhm Max | 1.8 nH | 13 @ 500MHz | 15GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q6N2JT02B03FIXED IND 6.2NH 300MA 480MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0201 | Unshielded | 480mOhm Max | 6.2 nH | 13 @ 500MHz | 5.1GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q27NJT02B03FIXED IND 27NH 140MA 1.6 OHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 140 mA | - | 0201 | Unshielded | 1.6Ohm Max | 27 nH | 13 @ 500MHz | 2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q27NHT02B03FIXED IND 27NH 140MA 1.6 OHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 140 mA | - | 0201 | Unshielded | 1.6Ohm Max | 27 nH | 13 @ 500MHz | 2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q0N7BT02B03FIXED IND 0.7NH 800MA 60MOHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 800 mA | - | 0201 | Unshielded | 60mOhm Max | 0.7 nH | 13 @ 500MHz | 20GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q3N5CT02B03FIXED IND 3.5NH 450MA 250MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 450 mA | - | 0201 | Unshielded | 250mOhm Max | 3.5 nH | 13 @ 500MHz | 7.9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q15NJT02B03FIXED IND 15NH 250MA 700MOHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 250 mA | - | 0201 | Unshielded | 700mOhm Max | 15 nH | 13 @ 500MHz | 2.6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q5N1HT02B03FIXED IND 5.1NH 350MA 400MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 350 mA | - | 0201 | Unshielded | 400mOhm Max | 5.1 nH | 13 @ 500MHz | 5.9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q3N8CT02B03FIXED IND 3.8NH 400MA 300MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 400 mA | - | 0201 | Unshielded | 300mOhm Max | 3.8 nH | 13 @ 500MHz | 7.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|

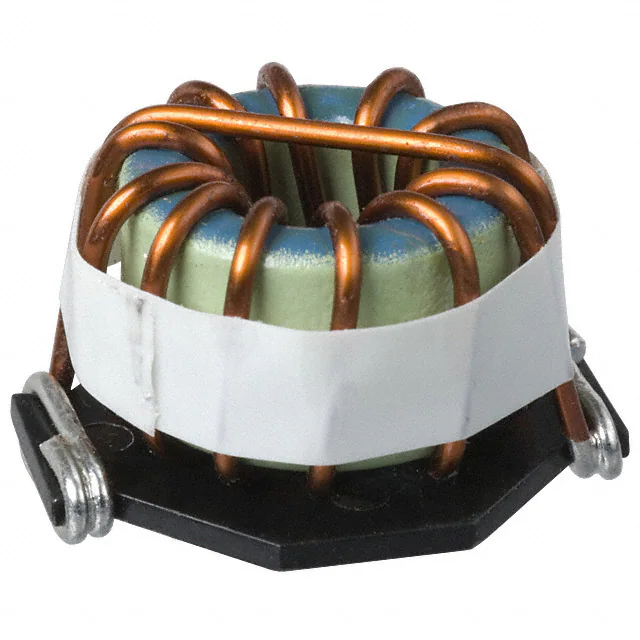

PM2120-220K-RCFIXED IND 22UH 11A 11 MOHM SMD |
223 | - |
|
数据表 |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | ±10% | 11 A | - | - | Unshielded | 11mOhm Max | 22 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.820" (20.83mm) |
|
|
PM2120-270K-RCFIXED IND 27UH 10.4A 12 MOHM SMD |
215 | - |
|
数据表 |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | ±10% | 10.4 A | - | - | Unshielded | 12mOhm Max | 27 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.820" (20.83mm) |
|
PA4332.332NLTFIXED IND 3.3UH 3.45A 72MOHM SMD |
5,847 | - |
|
数据表 |
PA4332.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 3.45 A | 4.7A | - | Shielded | 72mOhm Max | 3.3 µH | - | 19MHz | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | - | -40°C ~ 125°C | 1 MHz | 0.079" (2.00mm) |
.jpg)
|
B82422H1473J000FIXED IND 47UH 230MA 2.1 OHM SMD |
5,472 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 230 mA | - | 1210 (3225 Metric) | Unshielded | 2.1Ohm Max | 47 µH | 15 @ 2.52MHz | 12MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 150°C | 2.52 MHz | 0.094" (2.40mm) |
|
MDWK4040T2R2MMFIXED IND 2.2UH 3.5A 54 MOHM SMD |
5,132 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 3.5 A | 7.5A | - | Shielded | 54mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.079" (2.00mm) |
|
VLS4012HBX-100MFIXED IND 10UH 1.82A 338MOHM SMD |
4,348 | - |
|
数据表 |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.82 A | 2.36A | - | Shielded | 338mOhm Max | 10 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
IFSC0806AZER100M01FIXED IND 10UH 450MA 1.33OHM SMD |
4,137 | - |
|
数据表 |
IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 450 mA | 620mA | - | Shielded | 1.33Ohm Max | 10 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
ADL2012-1R5M-T01INDUCTORS FOR DECOUPLING CIRCUIT |
4,095 | - |
|
数据表 |
ADL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 620 mA | 1.2A | 0805 (2012 Metric) | Unshielded | 210mOhm Max | 1.5 µH | - | 450MHz | Surface Mount | AEC-Q200 | 0.087" L x 0.049" W (2.20mm x 1.25mm) | - | -40°C ~ 125°C | 1 MHz | 0.069" (1.75mm) |
|
|
MDWK4040T1R0MMFIXED IND 1UH 5.1A 27 MOHM SMD |
3,364 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 5.1 A | 9.4A | - | Shielded | 27mOhm Max | 1 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.079" (2.00mm) |
|
|
PM2120-271K-RCFIXED IND 270UH 4.2A 72 MOHM SMD |
123 | - |
|
数据表 |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | ±10% | 4.2 A | - | - | Unshielded | 72mOhm Max | 270 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.800" (20.32mm) |
|
|
PM2120-561K-RCFIXED IND 560UH 3.2A 130MOHM SMD |
115 | - |
|
数据表 |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | ±10% | 3.2 A | - | - | Unshielded | 130mOhm Max | 560 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.850" (21.59mm) |
